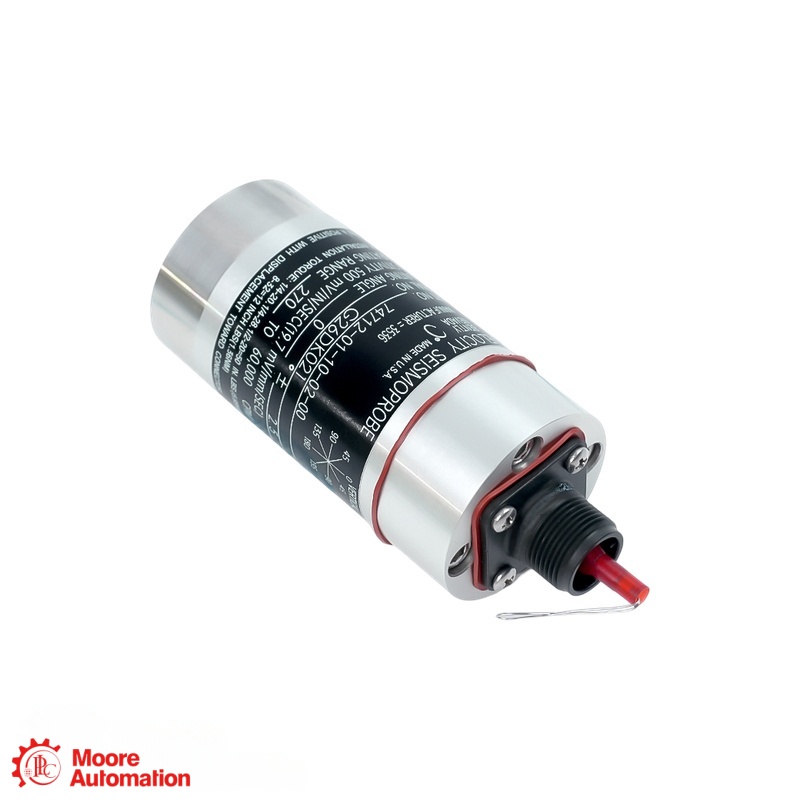

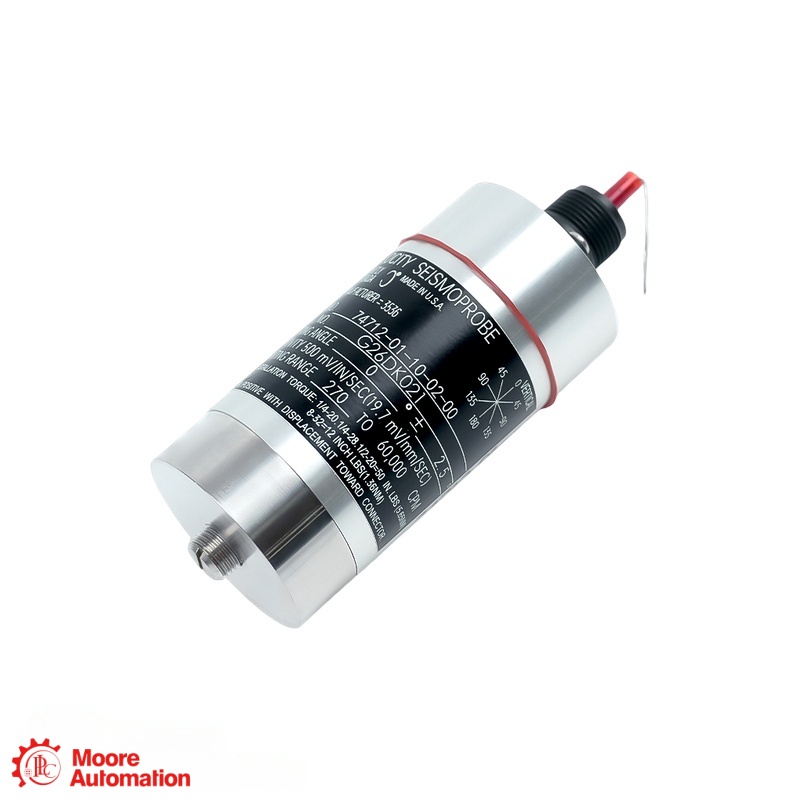

Bently Nevada 74712-01-10-03-00 High-Temperature Seismoprobe Velocity Transducer

Bently Nevada 74712-01-10-03-00 measures absolute bearing-housing, machine-casing or structural vibration velocity. Its passive two-wire moving-coil output is proportional to velocity, so match the monitor input and cable arrangement to a Seismoprobe transducer.

For 74712-01-10-03-00, option 01 specifies a 0° ±2.5° mounting orientation and 4.5 Hz minimum operating frequency. Option 10 selects a circular M10 x 1 mounting base; use that orientation and base when checking the machine installation.

The 03 connector option on 74712-01-10-03-00 is a top-mounted terminal block. This high-temperature 74712 version has no integral cable; select a compatible interconnection cable and verify the terminal wiring and monitor connection during installation.

Bently Nevada lists an operating and storage range of −29 °C to +204 °C for the 74712 transducer. The final 00 on 74712-01-10-03-00 means No Approvals; do not treat this ordering option as a hazardous-area-approved version.

Provide the complete 74712-01-10-03-00 code, quantity, machine mounting orientation, required interconnection-cable length, intended monitor, and installation-area approval requirement. The code specifies a vertical sensor, circular M10 x 1 base, top terminal block and No Approvals.
