The Bently Nevada 3500/22-01-03-00 is a Standard Transient Data Interface (TDI) for the 3500 Machinery Protection System
Marke :
Bently NevadaArtikelnummer :
3500/22-01-03-00Gewicht :
0.91 kgAbmessungen :
24.1 × 2.44 × 24.2 cmHerkunftsland :
USAHS-Code :
8537101190Beschreibung :
Standard TDI Module
|
3500/22-01-03-00 |
Contact |
|
Mobile / WhatsApp |
|
|
Email |
Product Overview

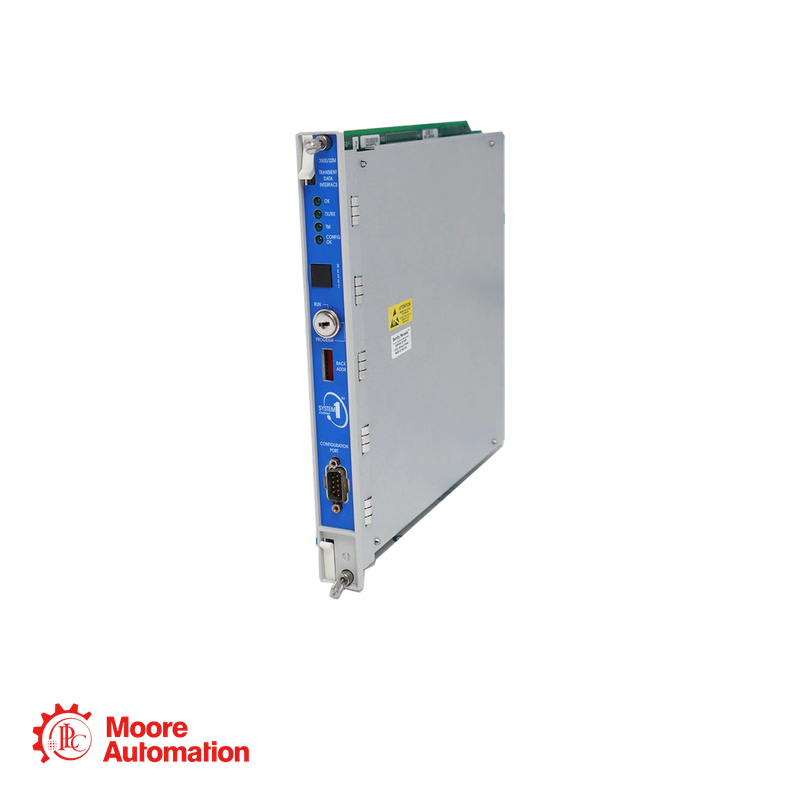

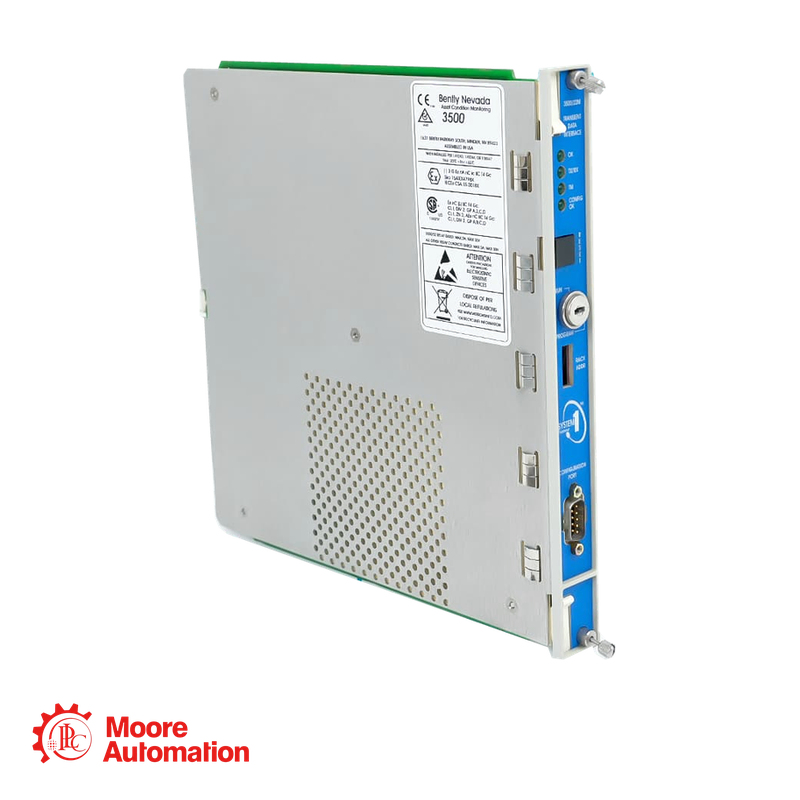

The Bently Nevada 3500/22-01-03-00 is a Standard Transient Data Interface (TDI) for the 3500 Machinery Protection System. It combines 3500/20 Rack Interface Module functions with continuous machinery-data collection, supporting communication between the monitoring rack and compatible host software. This configuration includes a 10Base-T/100Base-TX Ethernet I/O module with gold-plated OK relay contacts. Installed in Slot 1 beside the power supplies, it communicates with compatible 3500 M-series monitor modules and supports both rack configuration and machinery diagnostic data collection.
Order Number Breakdown
Position
Code
Description
Product Family
3500/22
Bently Nevada 3500/22M Transient Data Interface family.
TDI Type
01
Standard TDI for standard monitoring applications.
I/O Module Type
03
10Base-T/100Base-TX Ethernet with gold-plated OK relay contacts.
Agency Approval
00
None.
Technical Information
Manufacturer: Bently Nevada
Product Line: 3500 Machinery Protection System
Ordering Number: 3500/22-01-03-00
Product Type: Standard Transient Data Interface (TDI)
TDI Type: Standard TDI
Ethernet Connector: RJ-45
Maximum Ethernet Cable Length: 100 m (328 ft)
Power Consumption: 10.5 W
Operating Temperature: -30°C to +65°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 95%, non-condensing
Benefits&Features
Feature
Benefit
Standard TDI design
Combines rack-interface functions with machinery-data collection capability.
10Base-T/100Base-TX Ethernet
Provides autosensing Ethernet communication with compatible host software.
Gold-plated OK relay contacts
Supports low-level switching down to 1 mA at 1 VDC.
Static data capture
Collects monitored static values as a standard function.
Dynamic data capability
Supports dynamic and high-resolution transient waveform collection with a Dynamic Data Enabling Disk.
M-series monitor integration
Interfaces with compatible Bently Nevada 3500 M-series monitor modules.
Slot 1 installation
Occupies the dedicated rack position beside the power supplies.
Independent protection operation
Supports communication and diagnostics without affecting the critical protection path.
Application Areas
• Central data interface for Bently Nevada 3500 monitoring racks
• Machinery condition monitoring and diagnostic data collection
• Ethernet-based communication with System 1 and 3500 software
• Steady-state and transient waveform collection
• Rotating-equipment monitoring systems using compatible 3500 M-series monitors
Frequently Asked Questions
1. What is the 3500/22-01-03-00 used for?
It is a Standard Transient Data Interface that connects a Bently Nevada 3500 rack with compatible configuration, data-acquisition, and machinery-condition monitoring software.
2. What Ethernet interface is included with this configuration?
Code 03 identifies a 10Base-T/100Base-TX Ethernet I/O module with gold-plated OK relay contacts.
3. Can the TDI collect waveform data?
Static data capture is standard. Dynamic and high-resolution transient waveform collection is available when the appropriate Dynamic Data Enabling Disk is used.
