Bently Nevada 3500/15-05-05-CN Dual AC Power Supply

Product Overview

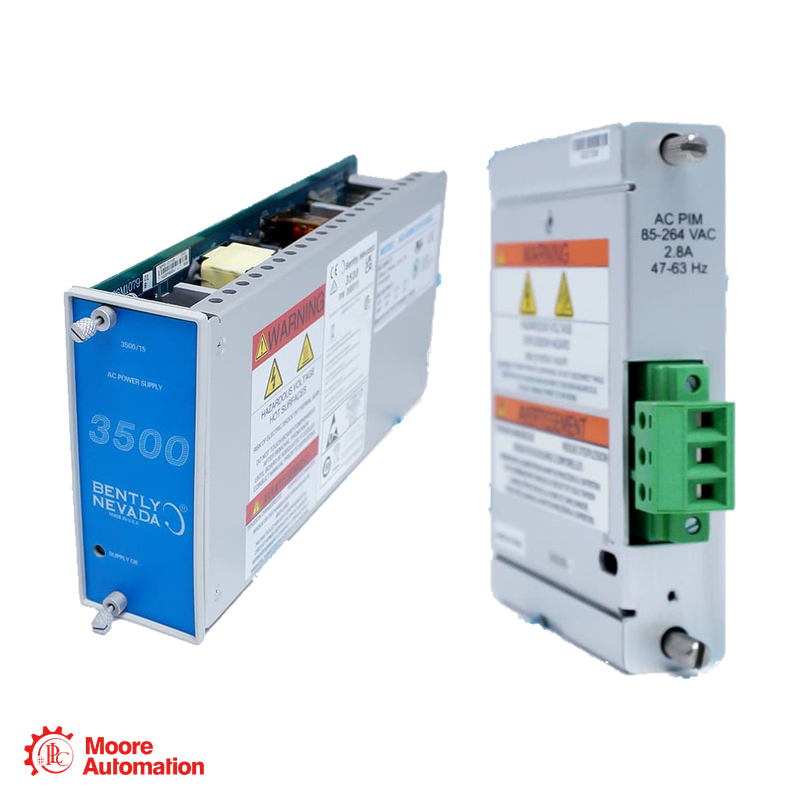

The Bently Nevada 3500/15-05-05-CN is a dual universal AC power-supply configuration for the 3500 Machinery Protection System. It places one universal AC supply in each of the two power-supply positions on the left side of the rack. Both supplies accept a wide input range of 85–264 Vac rms at 47–63 Hz. Either supply can operate a fully populated 3500 rack. With both units installed, the lower supply normally functions as the primary source and the upper unit provides backup power. Each front power-supply module works with a matching rear Universal AC Power Input Module. The dual-supply arrangement allows one unit to be removed or replaced while the other operating supply continues powering the rack.

Order Number Breakdown

Technical Information

Manufacturer: Bently Nevada
Product Line: 3500 Machinery Protection System
Ordering Number: 3500/15-05-05-CN
Product Type: Dual Universal AC Power Supply
Top Slot Power Supply: Universal AC Power Supply
Input Voltage: 85 to 264 Vac rms
Nominal Input Voltage: 110 to 220 Vac
Input Frequency: 47 to 63 Hz
Maximum Full-Rack Current Draw: 2.8 A rms
Power Supply Module Part Number: 106M1079-01
Operating Temperature: −30°C to +65°C

Benefits&Features

Application Areas

• Bently Nevada 3500 machinery-protection racks
• Redundant power for turbine monitoring systems
• Compressor vibration and condition-monitoring systems
• Generator and turbine-generator protection racks
• Oil and gas processing machinery
• Petrochemical and refinery rotating equipment
• Power-generation monitoring installations
• Critical pumps, motors and mechanical-drive systems
• Industrial sites requiring wide-range AC input capability

Frequently Asked Questions

1. What does the “05-05” configuration mean?
It means that universal AC power supplies are installed in both the upper and lower power-supply positions. Each supply accepts an input of 85–264 Vac rms.

2. How does power-supply redundancy work?
When both supplies are installed, the lower unit normally operates as the primary supply and the upper unit acts as the backup. Either supply has enough capacity to power a fully populated 3500 rack.

3. Can one power supply be removed while the rack is operating?
Yes. One supply can be removed or inserted without interrupting rack operation, provided that the second supply remains installed, properly connected and operational.

4. Which rear input module is required?

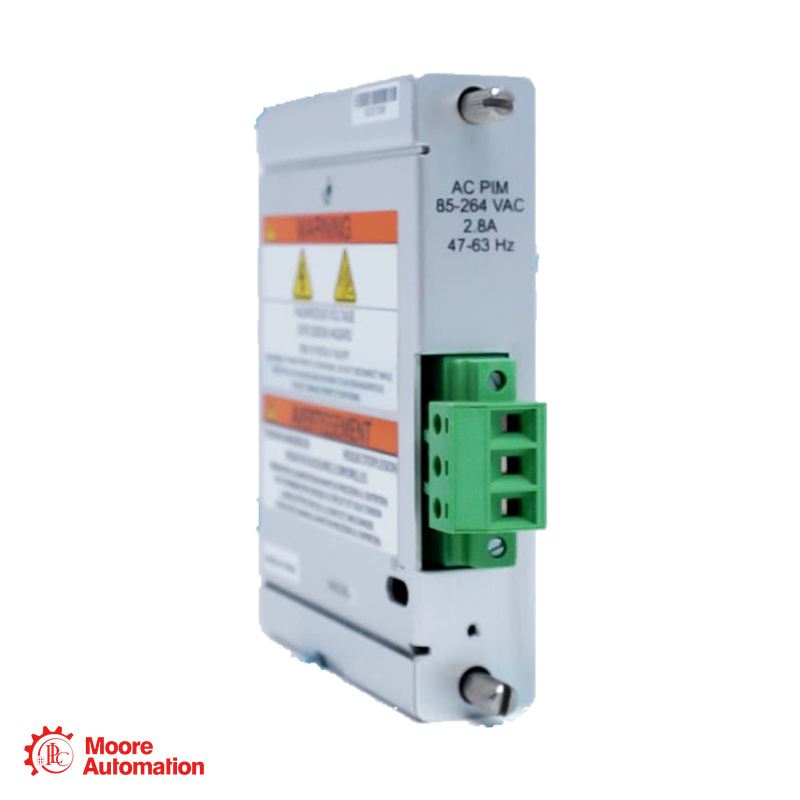

Each 106M1079-01 Universal AC Power Supply Module requires a matching 106M1081-01 Universal AC Power Input Module.
