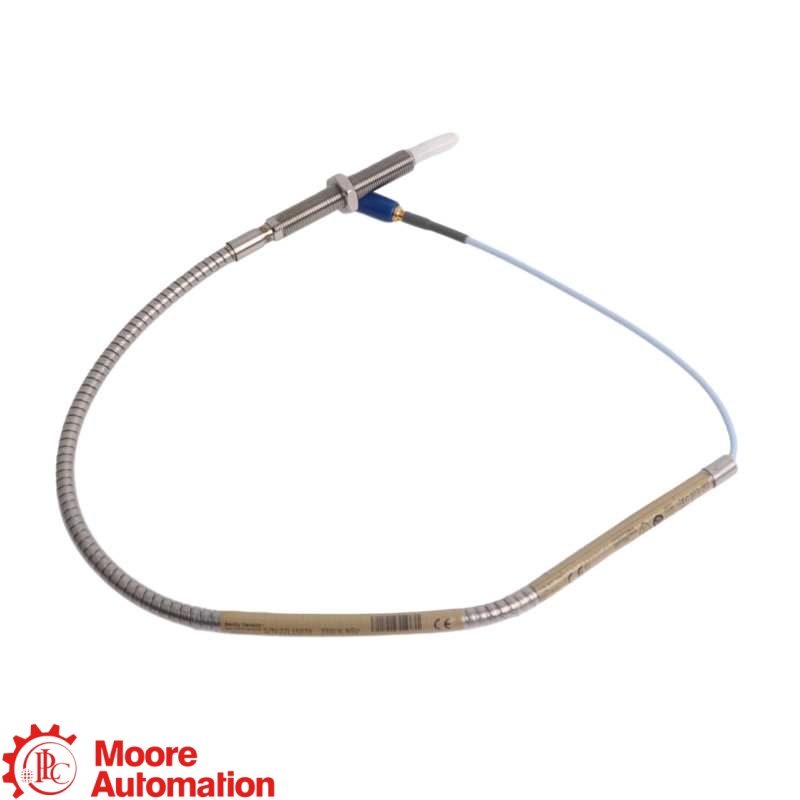

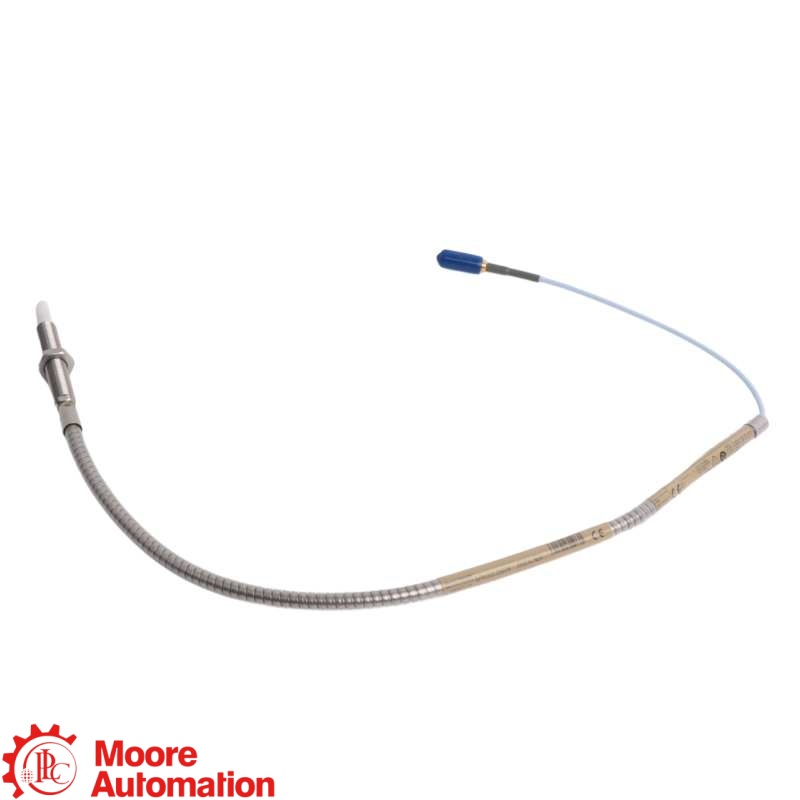

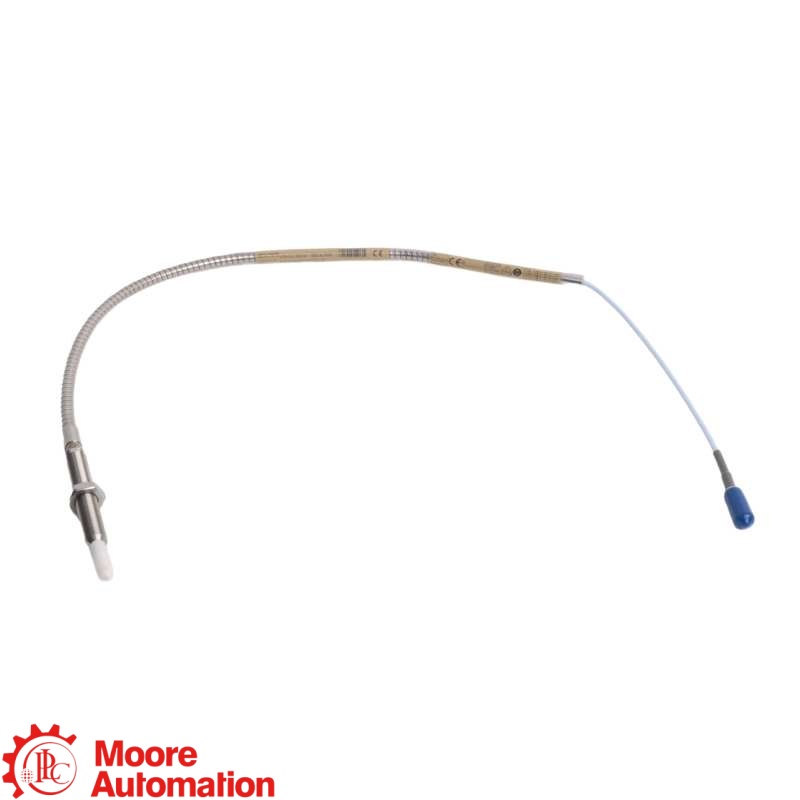

Bently Nevada 330910-00-07-05-02-05 3300 NSv Proximity Probe
Bently Nevada 330910-00-07-05-02-05 3300 NSv Proximity Probe
Bently Nevada 330910-00-07-05-02-05 3300 NSv Proximity Probe

Bently Nevada 330910-00-07-05-02-05 3300 NSv Proximity Probe

BENTLY NEVADA · 3300 XL NSv PROXIMITY PROBE

330910-00-07-05-02-05

The 330910-00-07-05-02-05 is a 3300 NSv proximity probe with M10X1 thread and armor. This configuration has 0 mm unthreaded length, 70 mm overall case length, 0.5 m total length, a standard-cable ClickLoc connector and Multiple Approvals.

PROBE TYPE3300 NSv armored probe
THREADM10X1
TOTAL LENGTH0.5 m (20 in)
CONNECTORClickLoc · standard cable
MANUFACTURERBently Nevada
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATIONProduct photos and videos provided after inquiry
REQUEST A QUOTE
Jetzt anfragen
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ↗3300 NSv PROXIMITY PROBE
3300 XL NSv MEASUREMENT-CHAIN COMPONENT

330910-00-07-05-02-05

330910

3300 NSv armored proximity probe · 0.5 m standard cable

PRODUCT ROLE

330910-00-07-05-02-05 is a 3300 NSv proximity probe with M10X1 thread and armor for a compatible 3300 XL NSv proximity measurement chain.

CONFIGURATION NOTE

For 330910-00-07-05-02-05, the official ordering options specify M10X1, Overall case length 70 mm and 0.5 m total length with standard-cable ClickLoc connection and Multiple Approvals. Confirm mounting, cable routing and matching NSv components before installation.

WANT THE BEST PRICE?

Frida

Sales Leader 🏆
ORDER NUMBER BREAKDOWN

How the 330910-00-07-05-02-05 reference is structured

330910
Probe familyM10X1 thread · with armor
00
Unthreaded length0.0 in
07
Case length70 mm
05
Total length0.5 m
02
Cable / connectorStandard cable · miniature ClickLoc
05
Approval optionMultiple approvals
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Baker Hughes Datasheet 147385 ↗
330910-00-07-05-02-05 · 3300 NSv PROXIMITY PROBE

Engineering data at a glance

Confirm the complete ordering number, M10X1 mounting thread, case length, total cable length, connector, approvals and matching NSv system components before installation.

PROBE TYPE3300 NSv probe with armor
THREADM10X1
CASE LENGTH70 mm
TOTAL LENGTH0.5 m (20 in)
Baker Hughes Datasheet 147385 lists 330910-00-07-05-02-05 as a 3300 NSv probe with M10X1 thread and armor and defines every option in the complete ordering number.
General Information＋
ManufacturerBently Nevada
Model330910-00-07-05-02-05
Product type3300 NSv Proximity Probe
Transducer system3300 XL NSv Transducer System
Measurement roleNon-contacting relative displacement measurement
ORDERING OPTIONS＋
Unthreaded length0 mm
Overall case length70 mm
Total probe length0.5 m (20 in)
Probe constructionM10X1 thread · stainless-steel armor
Connector / cable02 · miniature coaxial ClickLoc connector · standard cable
Agency approval05 · Multiple Approvals
SYSTEM PERFORMANCE＋
Average scale factor7.87 V/mm (200 mV/mil)
Linear range1.5 mm (60 mils)
Recommended gap1.0 mm (40 mils)
Frequency response0 to 10 kHz: +0, -3 dB typical
INSTALLATION & MATCHING CHECK＋
System componentsMatch the probe, NSv extension cable and NSv Proximitor Sensor
MountingVerify the M10X1 thread, 70 mm case length and target geometry
MaterialsPPS probe tip · AISI 304 stainless-steel case
Probe temperature-52°C to +177°C (-62°F to +351°F)
FAQ

Questions Buyers Ask Most

What is 330910-00-07-05-02-05?＋
330910-00-07-05-02-05 is a 3300 NSv proximity probe with M10X1 thread and armor, configured for a compatible 3300 XL NSv measurement chain.
What do the length codes in 330910-00-07-05-02-05 specify?＋
330910-00-07-05-02-05 specifies 0 mm unthreaded length, 70 mm overall case length and 0.5 m (20 in) total probe length.
What connector and cable does 330910-00-07-05-02-05 use?＋
330910-00-07-05-02-05 uses a miniature coaxial ClickLoc connector with standard cable. Confirm the matching NSv extension cable and conditioner before installation.
What approval option is included with 330910-00-07-05-02-05?＋
330910-00-07-05-02-05 uses agency-approval code 05, identified in official ordering information as Multiple Approvals. Verify the required site certification before installation.
What measurement-chain performance applies to 330910-00-07-05-02-05?＋
330910-00-07-05-02-05 belongs to a system with 7.87 V/mm (200 mV/mil) average scale factor, 1.5 mm linear range and 1.0 mm recommended gap.
What must be checked before installing 330910-00-07-05-02-05?＋
330910-00-07-05-02-05 requires confirmation of the M10X1 mounting thread, 70 mm case length, 0.5 m cable, ClickLoc connection, target material and matching NSv system components.
What information should be supplied when ordering 330910-00-07-05-02-05?＋
For 330910-00-07-05-02-05, provide the complete ordering number, quantity, installed probe and conditioner references, mounting dimensions, cable routing, approval requirement and delivery destination.
CONTACT PRODUCT SPECIALIST

Confirm your 330910-00-07-05-02-05 configuration with Frida

Share the complete ordering number, mounting dimensions, cable length, approval requirement and measurement-chain references for compatibility checking.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL DATASHEET

Official Datasheet and References for 330910-00-07-05-02-05

Official Baker Hughes manufacturer-reference information for the 330910-00-07-05-02-05 3300 NSv proximity probe.

3300 XL NSv Probe

Baker Hughes Datasheet 147385 lists 330910 as the 3300 NSv probe with M10X1 thread and armor and defines the 00-07-05-02-05 option sequence.

OFFICIAL DATASHEET ↗

Contact to Get Support

Send the complete model, quantity, nameplate details and your technical or purchasing question.

Source: Baker Hughes 3300 XL NSv Proximity Transducer System Datasheet 147385 Rev. R.
3300 XL NSv MEASUREMENT-CHAIN RELATIONSHIP

How 330910-00-07-05-02-05 Fits into the 3300 XL NSv Measurement Chain

Bently Nevada is the brand; the 3300 XL NSv System is the measurement platform; and 330910-00-07-05-02-05 is the 3300 NSv proximity probe.

Bently Nevada · BRAND
3300 XL NSv SystemMEASUREMENT PLATFORM · PROXIMITY TRANSDUCER SYSTEM
SPARE PROBE

330910-00-07-05-02-05

The probe performs non-contacting relative-displacement measurement in a matched NSv chain.

ORDERING CONFIGURATION

00 mm unthreaded · 70 mm case · 0.5 m total length

M10X1 thread, armor, standard-cable ClickLoc connector and Multiple Approvals.

SYSTEM ROLE

3300 XL NSv proximity measurement chain

Match the probe with a compatible NSv extension cable and Proximitor Sensor.

System relationship: the probe, extension cable, Proximitor Sensor, total system length and target material must all match.
APPLICATION AREAS

Application map for 330910-00-07-05-02-05

Relative Shaft VibrationMeasures relative displacement without contact on compatible rotating machinery
Axial Position MonitoringSupports compatible axial-position measurement with correct target material and gap
APPLICATION CENTER330910-00-07-05-02-053300 NSv Proximity Probe
Measurement-Chain IntegrationPairs with a compatible NSv extension cable and Proximitor Sensor
Installation MatchingConfirm thread, case length, cable, connector, approvals, target and system components
