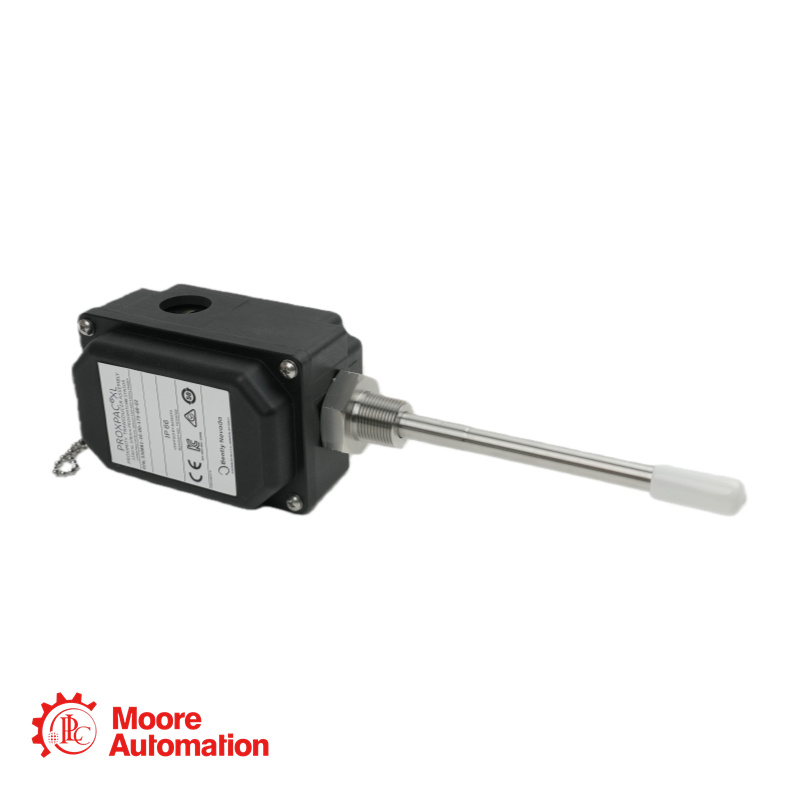

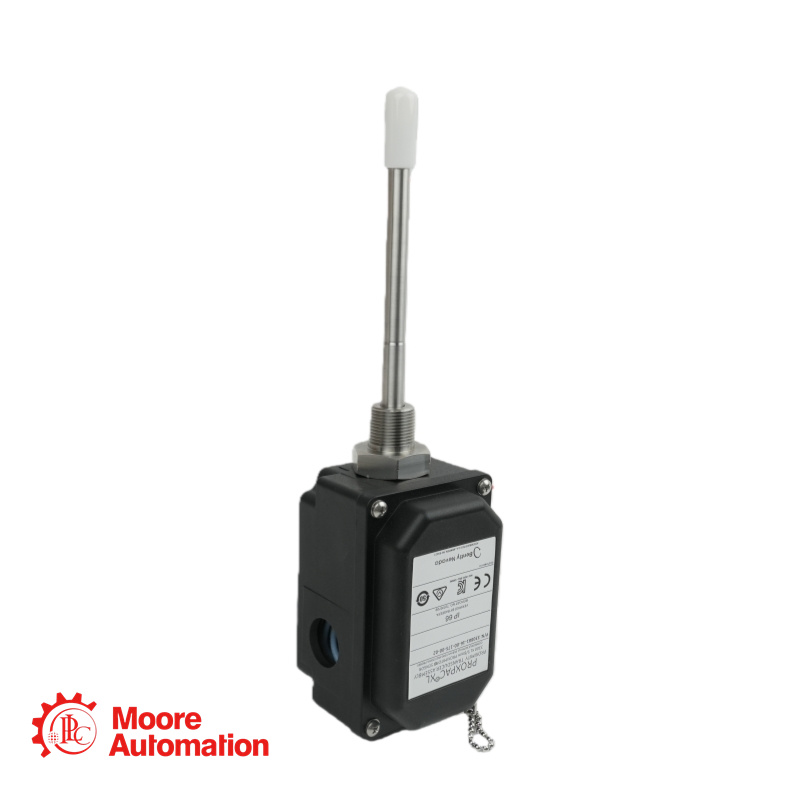

Bently Nevada 330881-16-00-385-06-02 Proximity Transducer, Metric

Contact here to get quotation

Know Product Details

❖Probe and Approvals (Option A): 16:3300 XL 8 mm probe without approvals
❖Standoff Adapter (Option B): 00 = No standoff adapter.
❖Probe Penetration / Sleeve Length (Option C): 385 = 385 mm
❖Fittings (Option D): 06 = One PG21 to PGII reducer, two plugs.

❖Mounting Thread Option (Option E):3/4-14 NPT

Linear Range: 2.0 mm (80 mils), from 0.25 mm to 2.3 mm from target.
Scale Factor: 7.87 V/mm (200 mV/mil) ±5%.
Recommended Gap Setting: 1.27 mm (50 mils).
Frequency Response: 0 to 10 kHz.
Minimum Target Size: 15.2 mm (0.6 in) diameter flat surface.
Minimum Shaft Diameter: 50.8 mm (2.0 in) to minimize cross-talk.
Probe Temperature Range: -52°C to +177°C (-62°F to +351°F).
Housing Operating Temperature: -52°C to +100°C (-62°F to +212°F).

Frequently Asked Questions?

❖What specific "Mounting Thread Option" (F=02) does this probe 330881-16-00-385-06-02 carry?
A: The "00" option means Not required.
❖Is this probe configuration commonly stocked for quick delivery?
A: Yes. For such Bently Nevada probe we usually have stock. If it is just out of stock, only 1-2 days can receive the goods and ship to you.
❖Is this 330881-16-00-385-06-02 orginal new one?

A: Yes! 330881-16-00-385-06-02 is brand new with one year warranty. Welcome to inquire our manager: Frida +86 15359408275 / sales5@mooreplc.com
