PROXIMITY PROBE

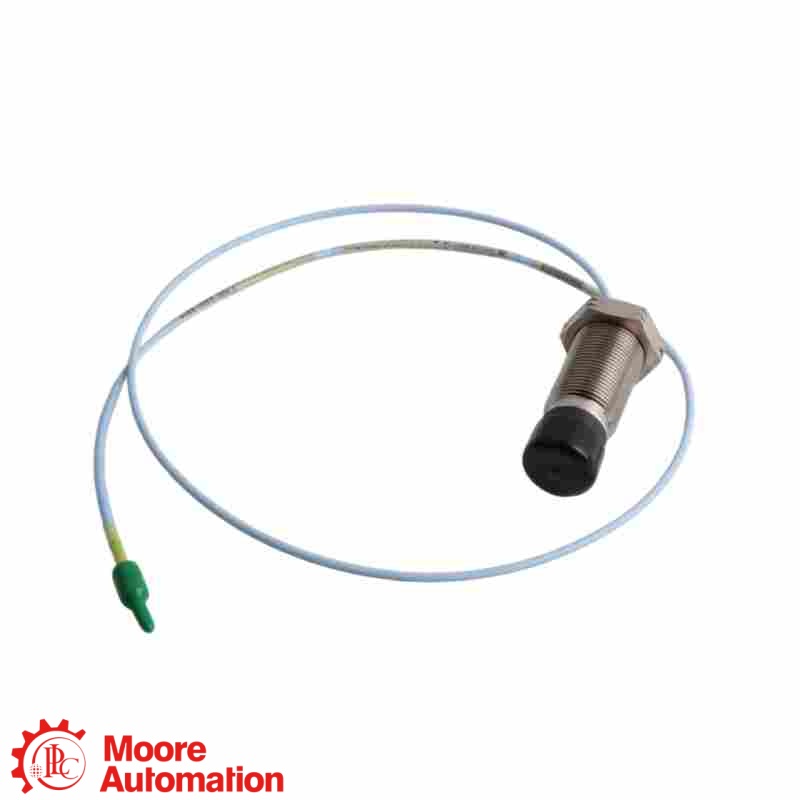

3300 XL 25 mm Probe
The probe senses the distance to a conductive target for static position and dynamic vibration measurements. Confirm case type, case dimensions, total length, armor and agency approval options.

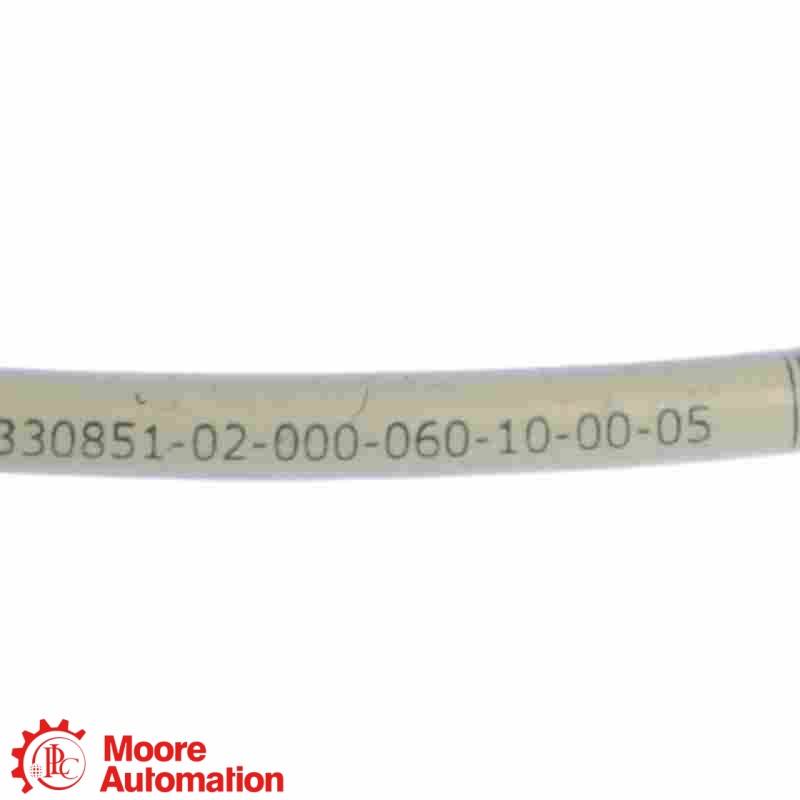

330851-02-000-060-10-00-05 — A 3300 XL 25 mm proximity probe with an M30x2 threaded case, 0 mm unthreaded length, 60 mm overall case length, 1.0 m total length, no armor, and multiple agency approvals.
Click “+” to expand more specifications.
Official manufacturer documentation and system context for Bently Nevada 330851-02-000-060-10-00-05.
Bently Nevada Datasheet 163236 Rev. M identifies 330851 as the 3300 XL 25 mm proximity probe and defines options 02, 000, 060, 10, 00 and 05 for this complete configuration.
VIEW OFFICIAL DATASHEETSend the complete model, quantity, and your technical or purchasing question.
Bently Nevada Datasheet 163236 Rev. M supports the complete 330851-02-000-060-10-00-05 configuration: M30x2 threaded case, 0 mm unthreaded length, 60 mm case length, 1.0 m total length, no armor and multiple agency approvals.
Bently Nevada is the manufacturer. 330851-02-000-060-10-00-05 is the 3300 XL 25 mm probe component. It must be matched to a compatible 330854 extension cable and 330850 Proximitor Sensor for the required 5 m or 9 m total system length.
The probe senses the distance to a conductive target for static position and dynamic vibration measurements. Confirm case type, case dimensions, total length, armor and agency approval options.
The matched 330854 extension cable combines with the 1.0 m probe lead to equal the 330850 Proximitor Sensor system length and preserves the specified 3300 XL electrical performance.
The compatible Proximitor Sensor conditions the probe signal into a voltage proportional to the gap between the probe tip and the conductive target.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete model, complete suffix, quantity and delivery destination.
