Configuration checkConfirm the complete nameplate, mating components and installation requirements before ordering.
General Information −
BrandBently Nevada
Part number330704-000-078-10-01-05

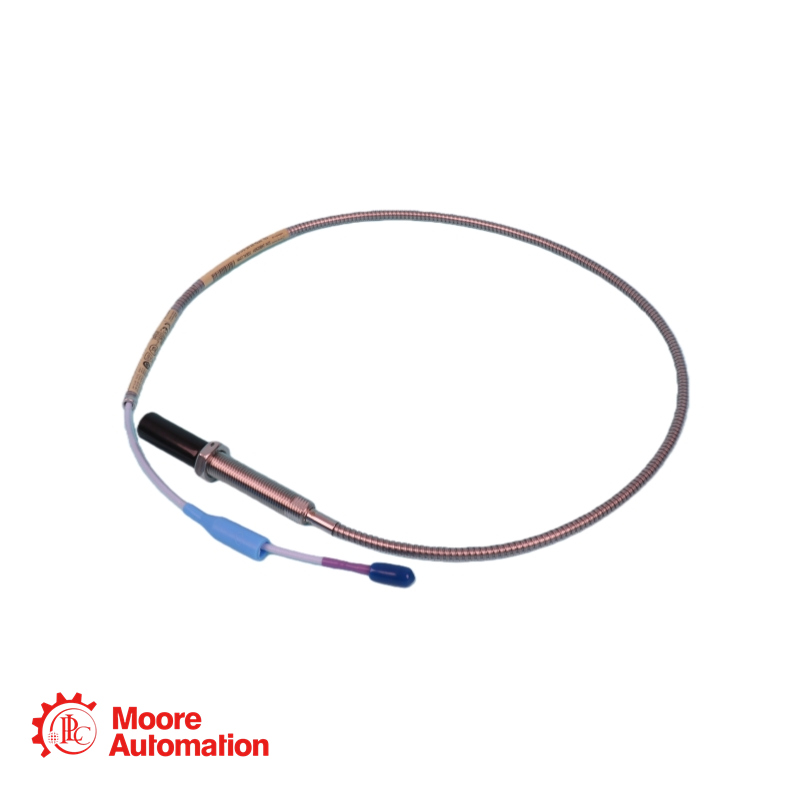

Product type11 mm armored proximity probe
Product family3300 XL 11 mm
MountingStandard mount · armored cable
ThreadM14 × 1.5
Detailed Measurement Data ＋
System linear range4.0 mm
Nominal system scale factor3.94 V/mm (100 mV/mil)
Recommended system gap2.5 mm
Cable and Installation ＋
Unthreaded length0 mm
Case length78 mm
Total probe length1.0 m
Connector option 01Miniature coaxial ClickLoc with protector; standard cable
Approval option 05Multiple approvals; verify the supplied marking
Environment and Certification ＋
Verify the supplied markings, applicable approvals and installation limits against the current manufacturer documentation. A suffix alone does not establish suitability for a hazardous-area installation.
Source: Bently Nevada 146256 Rev. T. System values require the complete compatible transducer configuration and the manufacturer’s stated conditions.
FAQ
Questions Buyers Ask Most
What is 330704 used for?＋
An armored M14 × 1.5 proximity probe for 3300 XL 11 mm machinery-monitoring systems.
What does the 330704-000-078-10-01-05 code specify?＋
000 = 0 mm unthreaded length; 078 = 78 mm case; 10 = 1.0 m total length; 01 = protected ClickLoc connector; 05 = multiple approvals.
Can a similar part number be substituted?＋
Do not substitute by appearance or family name alone. Compare the full suffix, dimensions, connections and system configuration.
Is this a complete measurement system?＋
No. This probe requires a compatible extension cable where applicable, a matching Proximitor Sensor and monitoring equipment.
What should I provide for a quotation?＋
Send the complete 330704-000-078-10-01-05 nameplate, quantity, installed-system details and delivery destination.
CONTACT PRODUCT SPECIALIST
Check your configuration with Frida
Share the complete label and system details for compatibility, availability and lead-time checking.
Technical statements on this product page are limited to publicly available Bently Nevada / Baker Hughes manufacturer documentation. No third-party product sources were used.
3300 XL SYSTEM RELATIONSHIP
How 330704 Fits into the Measurement System
Bently Nevada is the manufacturer. 330704-000-078-10-01-05 is a 3300 xl 11 mm armored proximity probe. It must be matched to the installed 3300 XL 11 mm Proximity Transducer System.
APPLICATION CENTER
3307043300 XL 11 mm Armored Proximity Probe
Rod MonitoringSystem applications include compressor rod position or rod drop.
Replacement CheckUse compatible 11 mm components and verify monitor configuration.
