Bently Nevada 330704-000-040-10-02-00 11 mm Armored Probe

Product Overview

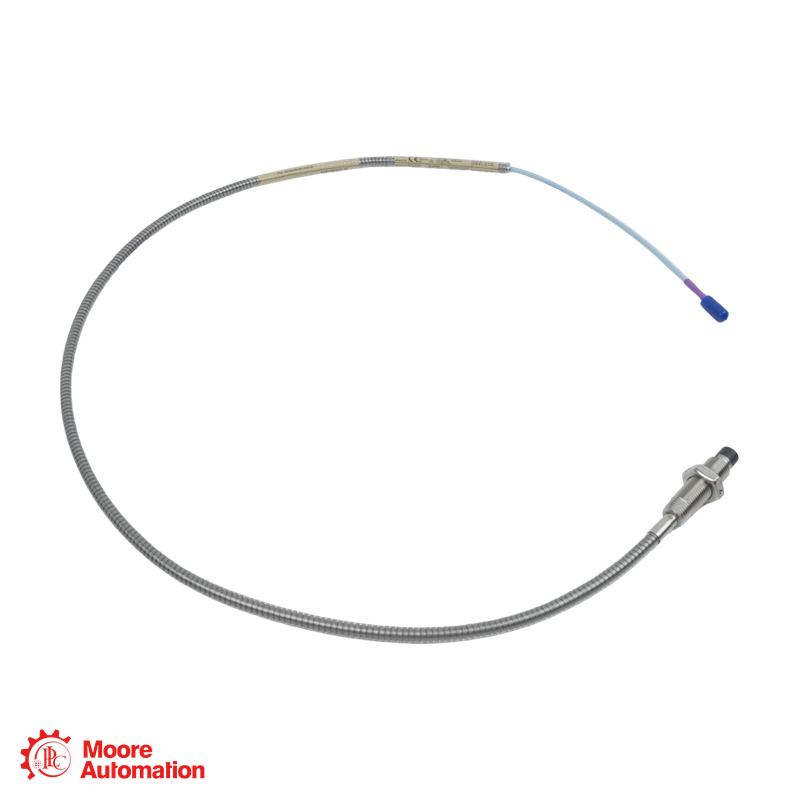

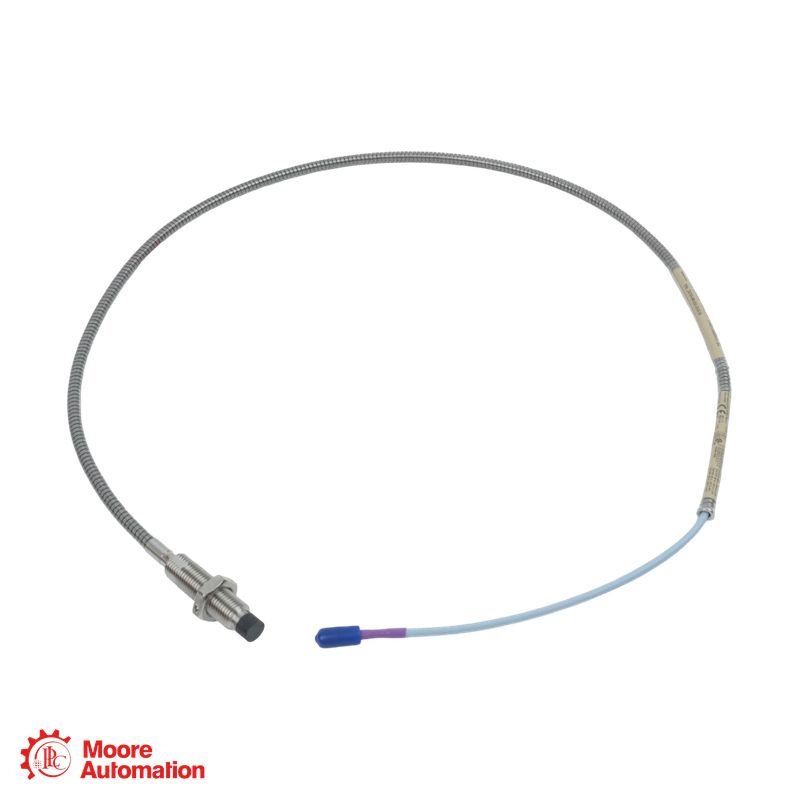

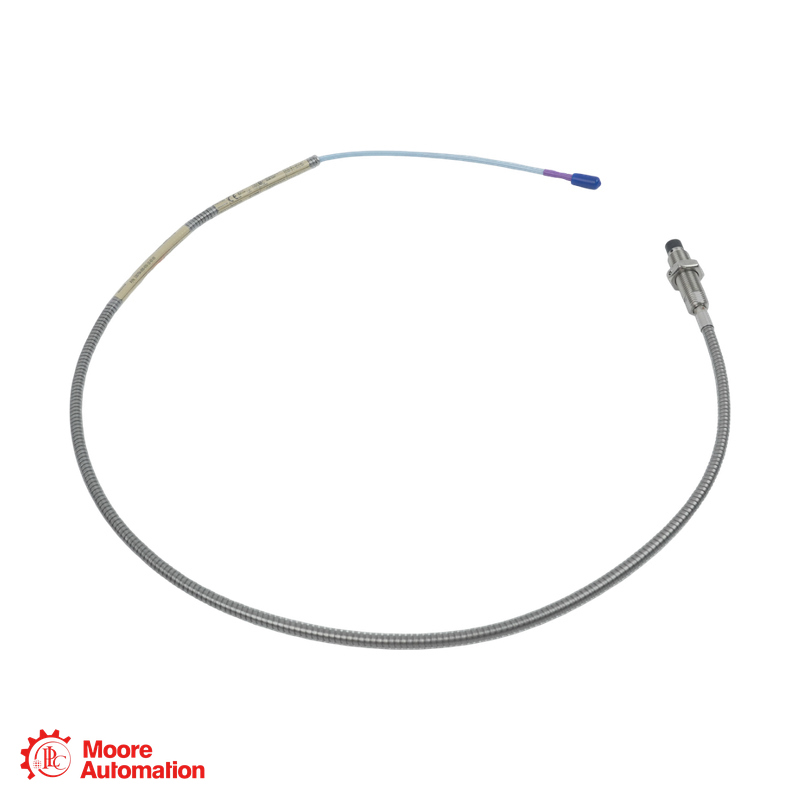

The Bently Nevada 330704-000-040-10-02-00 is an armored 3300 XL 11 mm proximity probe with an M14 × 1.5 threaded case. It provides non-contact sensing of a metal target as the probe component of a 3300 XL 11 mm proximity transducer system. The system is used to measure shaft position and vibration on rotating machinery, particularly where the 11 mm design’s longer linear range is needed. This ordering configuration specifies a 40 mm overall case length, a 1 m standard probe cable, and a miniature coaxial ClickLoc connector. The armored 330704 case distinguishes it from the unarmored 330703 version.

Model Number Breakdown

Model: 330704-000-040-10-02-00 — 3300 XL 11 mm proximity probe
Probe Configuration: 330704 — M14 × 1.5 thread, with armor
Unthreaded Length Option: 000 — 0 mm
Overall Case Length Option: 040 — 40 mm
Total Length Option: 10 — 1.0 m (3.3 ft)
Connector and Cable-Type Option: 02 — Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option: 00 — Not required

Features

• 11 mm probe tip for non-contact position and vibration sensing
• M14 × 1.5 metric threaded case with armor
• 40 mm overall case length and 0 mm unthreaded length
• 1 m standard probe cable
• Miniature coaxial ClickLoc connector
• Supports the longer linear range of a matched 3300 XL 11 mm transducer system

Product Identification Configuration

Environmental Capabilities

Probe operating and storage temperature: −52°C to +177°C
Standard probe-cable operating and storage temperature: −52°C to +177°C

Industries Served

• Power Generation: Shaft-position and differential-expansion measurements on turbine machinery.
• Oil & Gas: Rod-position and shaft measurements on compressors and turbine-driven equipment.
• Petrochemicals: Non-contact position monitoring on rotating machinery in continuous-process plants.
• Heavy Industry: Speed and phase-reference measurements where a 3300 XL 11 mm transducer system is specified.
