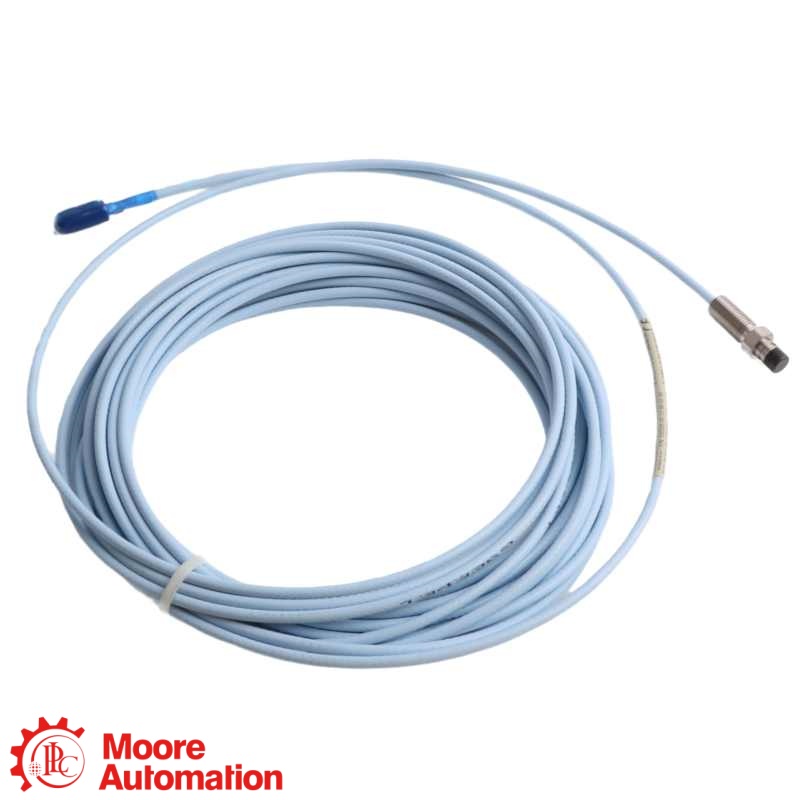

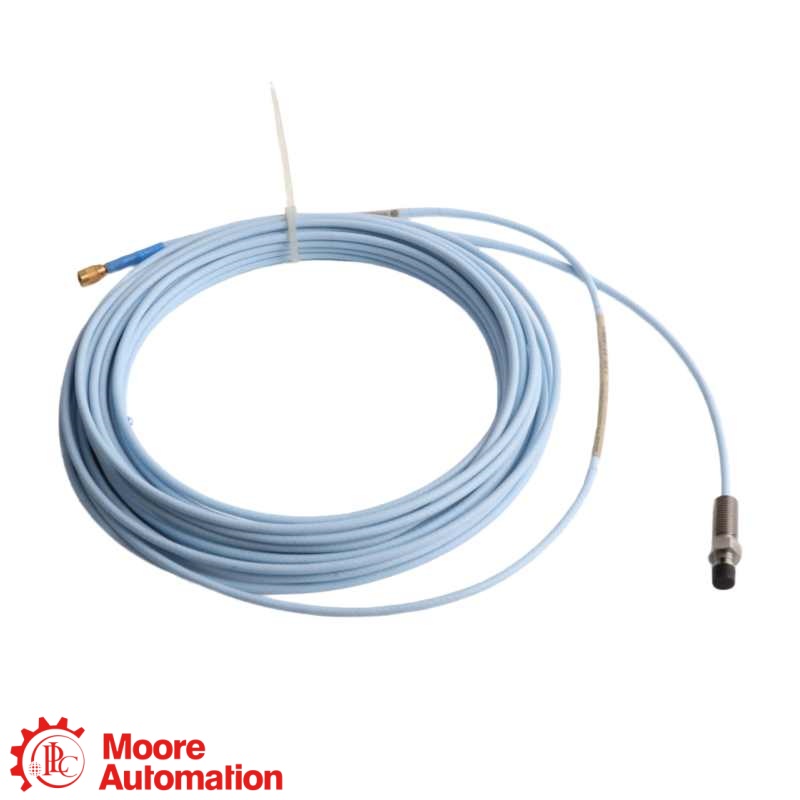

Bently Nevada 330105-02-12-90-12-00 3300 XL 8 mm Reverse Mount Proximity Probe
Bently Nevada 330105-02-12-90-12-00 3300 XL 8 mm Reverse Mount Proximity Probe
Bently Nevada 330105-02-12-90-12-00 3300 XL 8 mm Reverse Mount Proximity Probe

Bently Nevada 330105-02-12-90-12-00 3300 XL 8 mm Reverse Mount Proximity Probe

BENTLY NEVADA · 3300 XL 8 MM REVERSE MOUNT PROXIMITY PROBE

330105-02-12-90-12-00

The 330105-02-12-90-12-00 is a reverse-mount 3/8-24 UNF probe with 0.2 in unthreaded length, 1.2 in case length, 9.0 m total length, FluidLoc ClickLoc connector and no approval suffix. It must be used as part of a compatible 3300 XL 8 mm proximity transducer system.

MOUNTReverse
THREAD3/8-24 UNF
LENGTH9.0 m
CABLEFluidLoc
MANUFACTURERBently Nevada
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATIONProduct photos and videos provided after inquiry
REQUEST A QUOTE
Jetzt anfragen
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ↗3300 XL 8 MM REVERSE MOUNT PROXIMITY PROBE
3300 XL 8 MM PROXIMITY TRANSDUCER SYSTEM

330105-02-12-90-12-00

330105

Reverse mount · 3/8-24 UNF · 9.0 m FluidLoc cable · no approvals

PRODUCT ROLE

330105-02-12-90-12-00 is a reverse-mount 3/8-24 UNF proximity probe for non-contact measurement of shaft vibration, position, speed or Keyphasor reference when connected to a compatible 3300 XL 8 mm extension cable and Proximitor sensor.

CONFIGURATION NOTE

For 330105-02-12-90-12-00, the ordered fields specify reverse-mount body fields 02 and 12, 9.0 m total length, FluidLoc ClickLoc connector and no approvals. Confirm every field, target material, total electrical length, cable route, connector option and hazardous-area approval before replacement.

WANT THE BEST PRICE?

Frida

Sales Leader 🏆
ORDER NUMBER BREAKDOWN

How the 330105-02-12-90-12-00 reference is structured

330105
Probe familyReverse-mount 3300 XL 8 mm probe
02
Unthreaded length0.2 in
12
Case length1.2 in
90
Total length9.0 m
12
Cable / connectorFluidLoc cable · ClickLoc connector
00
Approval optionNo approvals
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Baker Hughes Datasheet 141194 ↗
330105 · 3300 XL 8 MM REVERSE MOUNT PROXIMITY PROBE

Engineering data at a glance

Verify the complete order code, mechanical dimensions, total length, connector/cable option and approval suffix before installation.

MOUNTReverse
THREAD3/8-24 UNF
LENGTH9.0 m
CABLEFluidLoc
Baker Hughes Datasheet 141194 documents the 3300 XL 8 mm ordering structure and system compatibility. Do not mix probe, extension cable or Proximitor components from an incompatible system.
General Information＋
ManufacturerBently Nevada
Model330105-02-12-90-12-00
Product type3300 XL 8 mm Reverse Mount Proximity Probe
Transducer system3300 XL 8 mm
Measurement methodNon-contact eddy-current proximity measurement
ORDER NUMBER CHECK＋
Probe family330105 · Reverse-mount 3300 XL 8 mm probe
Unthreaded length02 · 0.2 in
Case length12 · 1.2 in
Total length90 · 9.0 m
Cable / connector12 · FluidLoc cable · ClickLoc connector
Approval option00 · No approvals
SYSTEM & ELECTRICAL COMPATIBILITY＋
Compatible system3300 XL 8 mm probe, extension cable and Proximitor sensor
Nominal system lengthVerify the ordered total electrical length
ApplicationsRadial vibration, axial position, speed and Keyphasor reference
Target requirementConductive target material and calibrated system geometry
INSTALLATION & REPLACEMENT CHECK＋
Mechanical fitReverse mount, 3/8-24 UNF; fixed 0.2 in unthreaded and 1.2 in case geometry
Cable and connectorFluidLoc cable with ClickLoc connector and no connector protector
ApprovalsOption 00 · no approvals
CommissioningVerify gap voltage and machine protection settings after installation
FAQ

Questions Buyers Ask Most

What is 330105-02-12-90-12-00 used for?＋
330105-02-12-90-12-00 is reverse-mount 3/8-24 UNF proximity probe used in a compatible 3300 XL 8 mm proximity transducer system to measure shaft vibration, position, speed or a Keyphasor reference without contacting the target.
How is the 330105-02-12-90-12-00 order number decoded?＋
The 330105-02-12-90-12-00 order number must be read in its original sequence. 330105 identifies the reverse-mount family; 02 and 12 are fixed body dimensions; 90 specifies 9.0 m total length; 12 specifies FluidLoc ClickLoc; 00 specifies no approvals. These fields must not be reordered or merged because each identifies a separate mechanical, cable or approval selection.
Which cable and connector option is specified for 330105-02-12-90-12-00?＋
330105-02-12-90-12-00 uses FluidLoc cable with ClickLoc connector and no connector protector. The mating extension cable and Proximitor sensor must be selected for the same 3300 XL 8 mm system length and connector arrangement.
What total length is specified for 330105-02-12-90-12-00?＋
330105-02-12-90-12-00 specifies a 9.0 m total probe length. This is the ordered probe lead length, and the complete probe-plus-extension-cable electrical length must match the installed Proximitor system.
Which approvals apply to 330105-02-12-90-12-00?＋
330105-02-12-90-12-00 uses Option 00 · no approvals. Confirm that the exact approval marking on the delivered nameplate satisfies the installation area and local certification requirements.
Can 330105-02-12-90-12-00 directly replace another 3300 XL 8 mm probe?＋
330105-02-12-90-12-00 can be considered only when thread, case geometry, unthreaded length, total length, cable/connector option, approvals and the connected 3300 XL 8 mm extension cable and Proximitor sensor all match.
What information should be supplied when ordering 330105-02-12-90-12-00?＋
For a 330105-02-12-90-12-00 inquiry, provide the complete order code, quantity, nameplate photo, machine application, mounting dimensions, target material, existing extension-cable and Proximitor numbers, hazardous-area requirements and required delivery date.
CONTACT PRODUCT SPECIALIST

Confirm your 330105-02-12-90-12-00 configuration with Frida

Share the complete model and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL DATASHEET

Manuals and Official References for 330105-02-12-90-12-00

Official Baker Hughes manufacturer-reference information for the 330105-02-12-90-12-00 3300 XL 8 mm proximity probe.

3300 XL 8 mm Reverse Mount Proximity Probe

Baker Hughes Datasheet 141194 identifies 330105-02-12-90-12-00 as a reverse-mount 3/8-24 UNF probe with 0.2 in unthreaded length, 1.2 in case length, 9.0 m total length, FluidLoc ClickLoc connector and no approval suffix and documents its ordered mechanical, lead-length, connector/cable and approval fields.

OFFICIAL DATASHEET ↗

Contact to Get Support

Send the complete model, quantity, nameplate details and your technical or purchasing question.

Source: Baker Hughes 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM.
3300 XL 8 MM PROXIMITY TRANSDUCER SYSTEM RELATIONSHIP

How 330105-02-12-90-12-00 Fits into a Proximity Measurement Chain

Bently Nevada is the brand; the 3300 XL 8 mm Proximity Transducer System is the measurement family; and 330105-02-12-90-12-00 is the complete proximity-probe configuration.

Bently Nevada · BRAND
3300 XL 8 mm SystemPRODUCT FAMILY · MEASUREMENT
SENSING COMPONENT

Proximity Probe

The configured probe detects relative shaft vibration or position without contacting the target.

INTERCONNECTION

Extension Cable

The matched cable carries the probe signal while preserving the calibrated electrical length.

SIGNAL CONDITIONING

Proximitor / Monitor

The compatible Proximitor conditions the signal for the machinery-protection monitor channel.

System relationship: the probe code, mounting gap, target material, cable, system length, Proximitor and monitor channel must all match.
APPLICATION AREAS

Application mind map for 330105-02-12-90-12-00

Machine VibrationMeasures dynamic shaft motion in a compatible monitoring system
Axial PositionMeasures shaft position within the calibrated linear range
APPLICATION CENTER330105-02-12-90-12-003300 XL 8 mm Reverse Mount Proximity Probe
Speed / KeyphasorProvides a phase or speed reference when correctly installed
Replacement CheckMatch the complete six-field order code and installed transducer system
