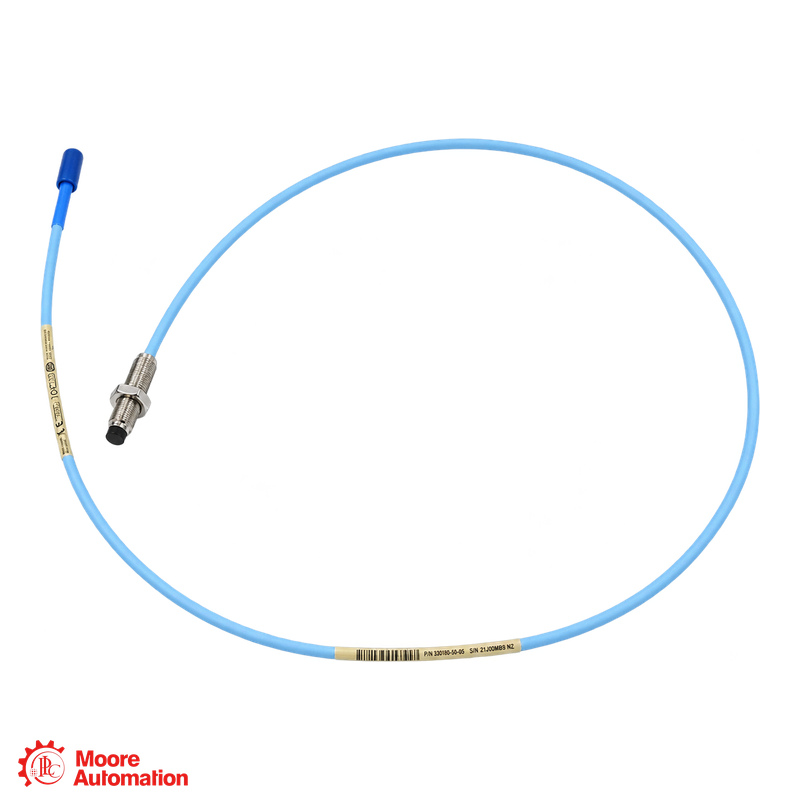

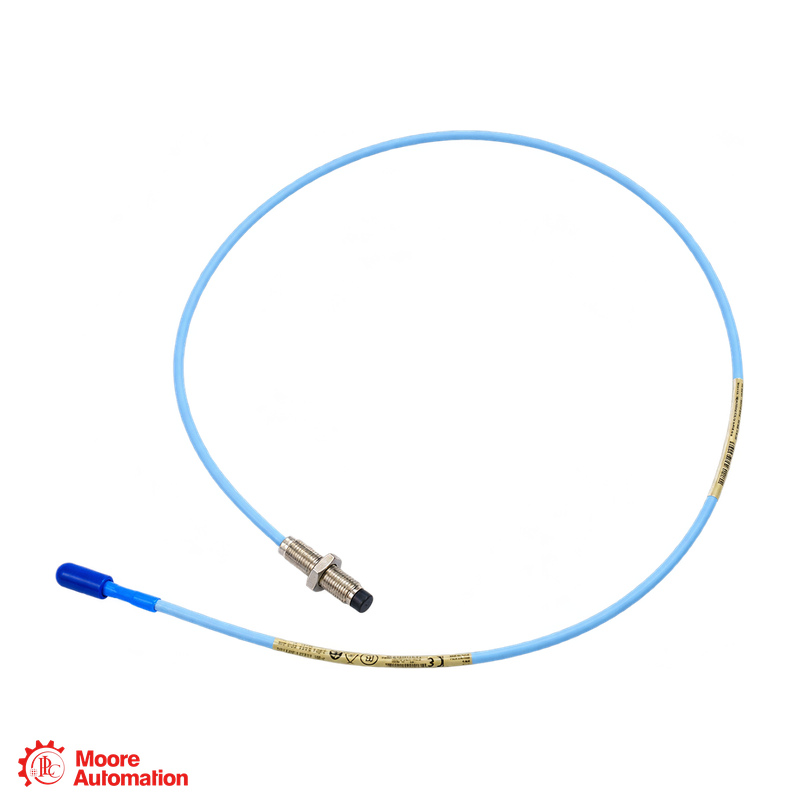

Bently Nevada 330103-00-04-90-02-00 3300 XL 8 mm Proximity Probe
Bently Nevada 330103-00-04-90-02-00 3300 XL 8 mm Proximity Probe
Bently Nevada 330103-00-04-90-02-00 3300 XL 8 mm Proximity Probe

Bently Nevada 330103-00-04-90-02-00 3300 XL 8 mm Proximity Probe

3300 XL 8 MM PROXIMITY PROBE

330103-00-04-90-02-00

330103-00-04-90-02-00 — a Bently Nevada 3300 XL 8 mm proximity probe with an M10 x 1 threaded case, 40 mm overall case length and 9.0 m total probe length.

UNTH.0 mm
CASE40 mm
TOTAL9.0 m
THRD.M10 x 1
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Jetzt anfragen
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 XL 8 MM PROXIMITY PROBE
3300 XL 8 MM PROXIMITY PROBE

330103-00-04-90-02-00

M10 x 1 · 40 mm case · 9.0 m lead

3300 XL 8 mm Proximity Probe

8 MM EDDY-CURRENT PROBE
330103-00-04-90-02-00 — A Bently Nevada 3300 XL 8 mm proximity probe with M10 x 1 threads, without armor, 40 mm case length and 9.0 m total length.
CONFIGURATION NOTE
330103: probe model 3300 XL 8 mm probe, M10 x 1 thread, without armor; 00: unthreaded length 0 mm; 04: overall case length 40 mm; 90: total length 9.0 m; 02: connector and cable Miniature coaxial ClickLoc; standard cable; 00: agency approval Not required.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

330103
Probe model3300 XL 8 mm probe, M10 x 1 thread, without armor
00
Unthreaded length0 mm
04
Overall case length40 mm
90
Total length9.0 m
02
Connector and cableMiniature coaxial ClickLoc; standard cable
00
Agency approvalNot required
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
3300 XL 8 MM PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

UNTHREADED0 mm
CASE LENGTH40 mm
TOTAL LENGTH9.0 m
THREADM10 x 1
Manufacturer-defined order configuration.
Configuration note330103: probe model 3300 XL 8 mm probe, M10 x 1 thread, without armor; 00: unthreaded length 0 mm; 04: overall case length 40 mm; 90: total length 9.0 m; 02: connector and cable Miniature coaxial ClickLoc; standard cable; 00: agency approval Not required.
General Information −
BrandBently Nevada
Part number330103-00-04-90-02-00
Product type3300 XL 8 mm Proximity Probe
Product family3300 XL 8 mm
ThreadM10 x 1
ArmorWithout armor
Probe Order Configuration ＋
Unthreaded length0 mm
Overall case length40 mm
Total probe length9.0 m
Connectorminiature coaxial ClickLoc
Connector protectorNo
Cable typeStandard cable
Mechanical Design ＋
Nominal tip diameter8 mm
Mounting threadM10 x 1
Probe tip constructionTipLoc molding
Probe cable attachmentCableLoc
Cable pull strength330 N (75 lbf)
System Integration ＋
Measurement technologyEddy-current proximity
System componentsProbe, extension cable and Proximitor Sensor
Measurement modesVibration and position
Connector lockingFinger-tight ClickLoc
FAQ

Questions Buyers Ask Most

What configuration does 330103-00-04-90-02-00 specify?＋

330103-00-04-90-02-00 uses 330103 for its probe construction, 0 mm unthreaded length, 40 mm overall case length, and 9.0 m total length. The connector and cable option is miniature coaxial ClickLoc with no protector.

What physical connection does 330103-00-04-90-02-00 use?＋

330103-00-04-90-02-00 uses a M10 x 1 probe case and a miniature coaxial ClickLoc connector. The selected 01 or 02 option determines whether a connector protector is included. Use the complete part number to match the installed probe and extension-cable connection.

Which machinery measurements can use 330103-00-04-90-02-00?＋

330103-00-04-90-02-00 330103-00-04-90-02-00 is a probe component of the 3300 XL 8 mm system for shaft vibration and position measurements. The system includes the matching extension cable and Proximitor Sensor, which convert probe-to-target gap into a proportional output voltage.

How should 330103-00-04-90-02-00 be matched in the transducer system?＋

330103-00-04-90-02-00 330103-00-04-90-02-00 belongs in a 3300 XL 8 mm transducer chain with an extension cable and Proximitor Sensor. Match the complete probe order code, connection style and required system length rather than substituting a different cable or probe configuration by appearance alone.

What order details matter for 330103-00-04-90-02-00?＋

For the complete 330103-00-04-90-02-00 probe, record the M10 x 1 thread, 0 mm unthreaded length, 40 mm case length, 9.0 m lead length, connector option and full trailing suffix. Compare them with the installed system before ordering a replacement.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 330103-00-04-90-02-00 label, probe thread, case length, lead length, connector option and quantity with Frida.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
330103-00-04-90-02-00

The Bently Nevada 3300 XL 8 mm system datasheet lists the 330103 base and every option position in 330103-00-04-90-02-00.

Official manufacturer datasheet

Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet 141194 defines the 330103 base model and the option values used in 330103-00-04-90-02-00.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use the linked Bently Nevada manufacturer datasheet.

3300 XL 8 MM SYSTEM CONTEXT

How 330103-00-04-90-02-00 Fits into a Machinery Monitoring System

Bently Nevada is the manufacturer. 330103-00-04-90-02-00 is a Bently Nevada 3300 XL 8 mm proximity probe. Together with a matching extension cable and Proximitor Sensor, it forms a system whose voltage output is proportional to probe-to-target distance.

Bently Nevada · BRAND
Bently Nevada 3300 XL 8 mm SeriesPRODUCT FAMILY · 8 MM PROXIMITY PROBE
PROBE THREAD

M10 x 1

The 330103 probe uses M10 x 1 threads.

CASE LENGTH

40 mm

The selected case-length code specifies 40 mm.

TOTAL PROBE LENGTH

9.0 m

The selected total-length code specifies 9.0 m of probe and attached cable.

System relationship: the 3300 XL 8 mm probe senses conductive shaft proximity; with the extension cable and Proximitor Sensor, the system converts target gap into a proportional voltage signal.
APPLICATION AREAS

Functions and application roles for 330103-00-04-90-02-00

Radial VibrationThe 3300 XL 8 mm transducer system measures shaft vibration on fluid-film bearing machines.
Shaft PositionThe system can measure static probe-to-target distance for shaft position monitoring.
APPLICATION CENTER 330103-00-04-90-02-00 3300 XL 8 mm Proximity Probe
Phase ReferenceThe system can support Keyphasor reference measurements with the correct monitor configuration.
Machine MonitoringThe probe operates in a three-component chain with an extension cable and Proximitor Sensor.
