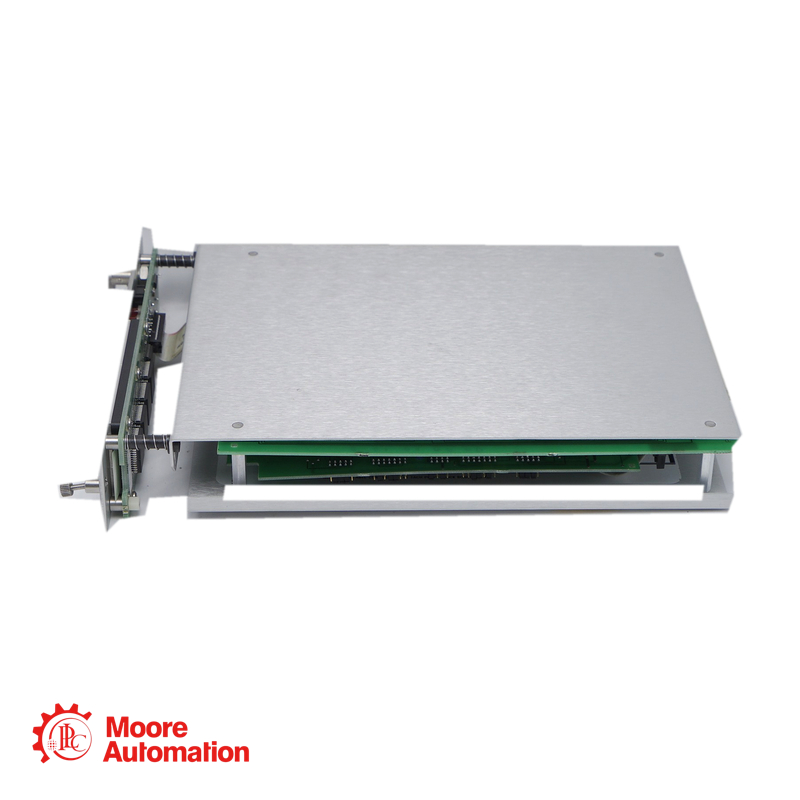

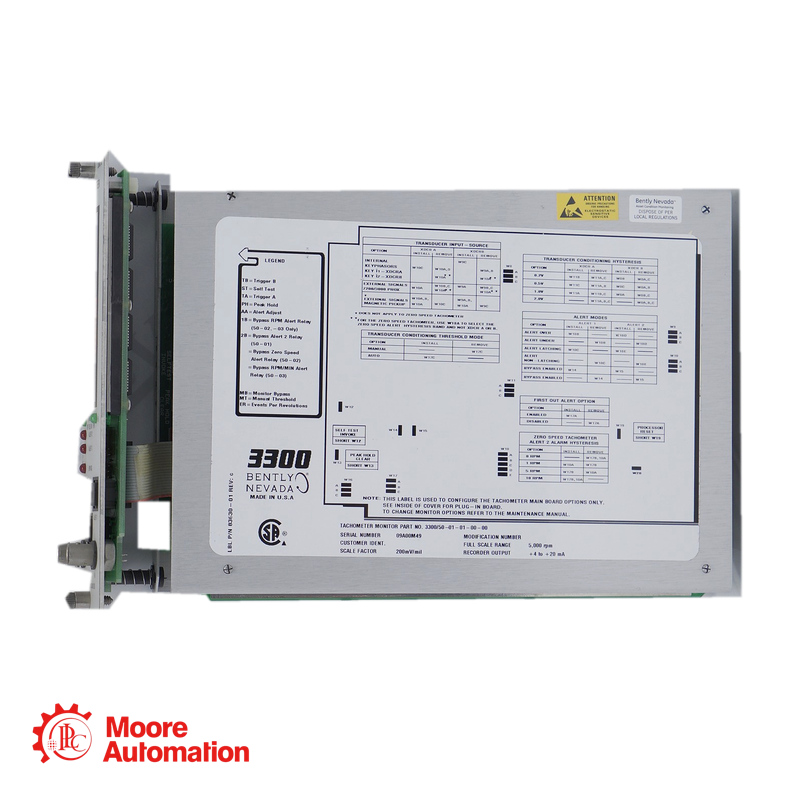

The Bently Nevada 3300/50-01-01-00-00 is a dual setpoint tachometer for continuous shaft rotational speed measurement in a 3300 monitoring system
Marke :
Bently NevadaArtikelnummer :
3300/50-01-01-00-00Gewicht :
1.2 kgAbmessungen :
5.1 × 20.3 × 33.0 cmHerkunftsland :
USAHS-Code :
8537101190Beschreibung :
Dual Setpoint Tachometer
|
GET THE BEST PRICE |
SALES CONTACT |
|
Contact Person |
Frida |
|
|
|
|
☎ Mobile / WhatsApp |
Product Overview
The Bently Nevada 3300/50-01-01-00-00 is a dual setpoint tachometer for continuous shaft rotational speed measurement in a 3300 monitoring system. It accepts two transducer signals and uses internal voting logic to reduce false indications if one input becomes invalid. This configuration provides two independently adjustable speed alert setpoints and epoxy-sealed relay outputs. A proportional recorder output is available for data logging or chart recording, while the front-panel display provides local RPM, probe-gap and operating-status information. The 3300/50 is intended for speed monitoring and alarm annunciation. It must not be used independently as a speed controller or overspeed protection system.
Order Number Breakdown
3300/50 — Tachometer monitor
01 — Dual Setpoint Tachometer
01 — Epoxy-sealed alert relay option
00 — Agency approval not required
00 — No safety barrier
Technical Information
|
Parameter |
Value |
|
Manufacturer |
Bently Nevada |
|
Product Line |
3300 System |
|
Ordering Number |
3300/50-01-01-00-00 |
|
Product Type |
Dual Setpoint Tachometer |
|
Measured Variable |
Shaft rotational speed |
|
Speed Measurement Range |
1–99,999 rpm |
|
Input Capacity |
2 transducer signals |
|
Input Impedance |
10 kΩ |
|
Automatic Threshold Frequency Range |
Above 10 Hz to 10 kHz |
|
Manual Threshold Range |
0 to −18 VDC, user-selectable |
|
Input Hysteresis Range |
0.2–2.0 V, user-selectable |
|
Events per Revolution |
Numerator 1–255; denominator 1–255 |
|
Alert Setpoints |
2 independently adjustable RPM setpoints |
|
Speed Display Resolution |
±1 rpm |
|
Speed Display Accuracy at 25°C |
Within ±1 rpm |
|
Recorder Output Options |
+4–20 mA, +1–5 VDC or 0 to −10 VDC |
|
Voltage Output Impedance |
100 Ω |
|
Minimum Voltage Output Load |
10 kΩ |
|
4–20 mA Output Load |
0–600 Ω |
|
Buffered Transducer Outputs |
One front-panel coaxial output per transducer |
|
Buffered Output Impedance |
100 Ω |
|
Transducer Supply Voltage |
−24 VDC or −18 VDC, field-programmable |
|
Nominal Power Consumption |
2.5 W |
|
Operating Temperature |
0°C to +65°C |
|
Storage Temperature |
−40°C to +85°C |
|
Relative Humidity |
Up to 95%, non-condensing |
Benefits&Features
• Continuously measures shaft rotational speed
• Provides two independently adjustable RPM alert setpoints
• Accepts two transducer inputs with internal voting logic
• Supports 3300, 7200 and 3000 Series proximity systems
• Can accept external magnetic pickup signals
• Provides overspeed or underspeed alert configuration
• Supports latching or nonlatching alert operation
• Offers programmable current or voltage recorder outputs
• Includes epoxy-sealed alert relays
Application Areas
-Shaft speed monitoring on turbines and compressors
-Rotational speed indication for pumps, fans and generators
-Dual-threshold speed annunciation for rotating machinery
-Speed data logging and chart recording
-Integration with external annunciator panels in 3300 monitoring systems
Main brands
No.
Brand
Main Product Lines
1
ABB
DSQC Series industrial robot parts; Bailey INFI 90; DCS
2
Honeywell
51 Series; MU Series; MC Series; TC Series; CC Series
3
General Electric (GE)
IC693 Series; IC697 Series; IC695 Series; DS200 Series
4
PLC
1756 Series; 1747 Series; 1746 Series
5
Schneider Electric
140 Series
6
Bently Nevada
3500 Series; 3300 Series; 330180 cables
7
Foxboro
FBM203; FBM204; FBM217; FBM231; FCP240; FCP270
8
Westinghouse
1C Series; 5X Series
9
Triconex
3008; 3511; 3625; 3664; 3721; 3700A
10
Siemens
6DD Series; 6DP Series; 6ES5 Series; 6DR Series; 6GK Series
Frequently Asked Questions
1. What is the function of the 3300/50-01-01-00-00?
It continuously measures shaft rotational speed and provides two adjustable RPM alert setpoints. This configuration is the Dual Setpoint Tachometer version of the 3300/50.
2. Why does the monitor accept two transducer inputs?
The two inputs allow internal voting between transducers. This arrangement helps reduce false speed indications if one transducer signal becomes invalid.
3. Can both speed alerts be configured independently?
Yes. The two alert functions can be adjusted independently for overspeed or underspeed annunciation and can be configured for latching or nonlatching operation.
