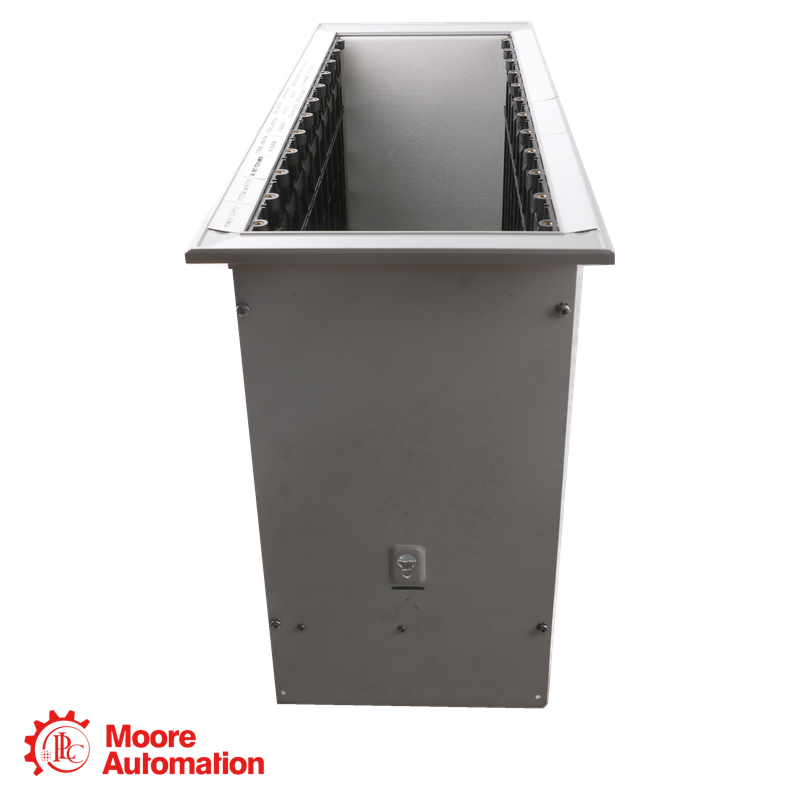

Bently Nevada 3300/05-23-00-00 8-Position System Rack

Product Overview

The Bently Nevada 3300/05-23-00-00 is an eight-position rack for the 3300 machinery monitoring system. It provides the mechanical mounting structure and backplane connections required for a 3300 power supply, system monitor and individual machinery-monitoring modules. Rack position 1 is reserved for the power supply, while position 2 accommodates the system monitor. Positions 3 through 8 provide six available locations for compatible 3300 monitor modules. Each monitor position also has a corresponding rear location for its signal input or relay module. This configuration uses standard mounting, does not include an internal safety-barrier bar and does not specify an additional agency-approval option. Its modular construction supports organized installation, straightforward module access and future system expansion.

Order Number Breakdown
3300/05--Bently Nevada 3300 System Rack
23--Eight-position rack, SDI/DDI compatible
00--Agency approval not required
00--Standard mounting configuration

Technical Information

Benefits&Features

• Eight-position rack for the Bently Nevada 3300 monitoring system
• Provides six usable positions for individual monitor modules
• Dedicated positions for the power supply and system monitor

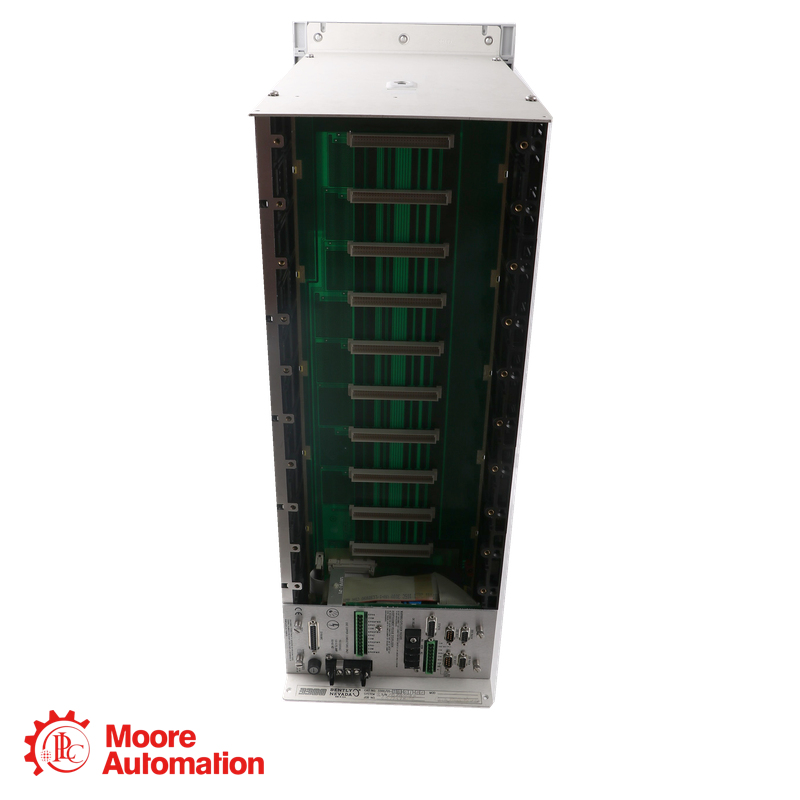

• Rear mounting locations for signal input and relay modules
• SDI/DDI-compatible rack configuration
• Standard panel-mount arrangement
• Modular construction simplifies system expansion
• No point-to-point internal rack wiring is required
• Front bezel supports machine-point and loop identification
• Supports different 3300 monitor types within one system

Application Areas

-Bently Nevada 3300 machinery monitoring systems
-Turbine supervisory and machinery-protection panels
-Compressor vibration-monitoring installations
-Generator and turbine-generator monitoring systems
-Pump and large-motor condition-monitoring panels
-Petrochemical and refinery rotating-equipment systems
-Power-generation machinery monitoring
-Panel-mounted industrial monitoring cabinets
-Expansion or maintenance of an installed 3300 rack system

Main brands

Frequently Asked Questions

1. How many module positions does the 3300/05-23-00-00 provide?
It has eight rack positions. Position 1 is reserved for the power supply, position 2 is reserved for the system monitor, and positions 3 through 8 can accommodate six individual monitor modules.

2. Is this a 19-inch EIA rack version?
No. The “23” option identifies the standard eight-position rack. The separate “27” option is used for the eight-position, 19-inch EIA mounting version.

3. Does this configuration include an internal barrier bar?
No. The “23” rack-size option does not include an internal barrier bar. The equivalent eight-position configuration with an internal barrier bar is identified by option “33.”
