Configuration checkConfirm the complete nameplate, mating components and installation requirements before ordering.
General Information −
BrandBently Nevada
Part number31000-28-10-15-040-03-02

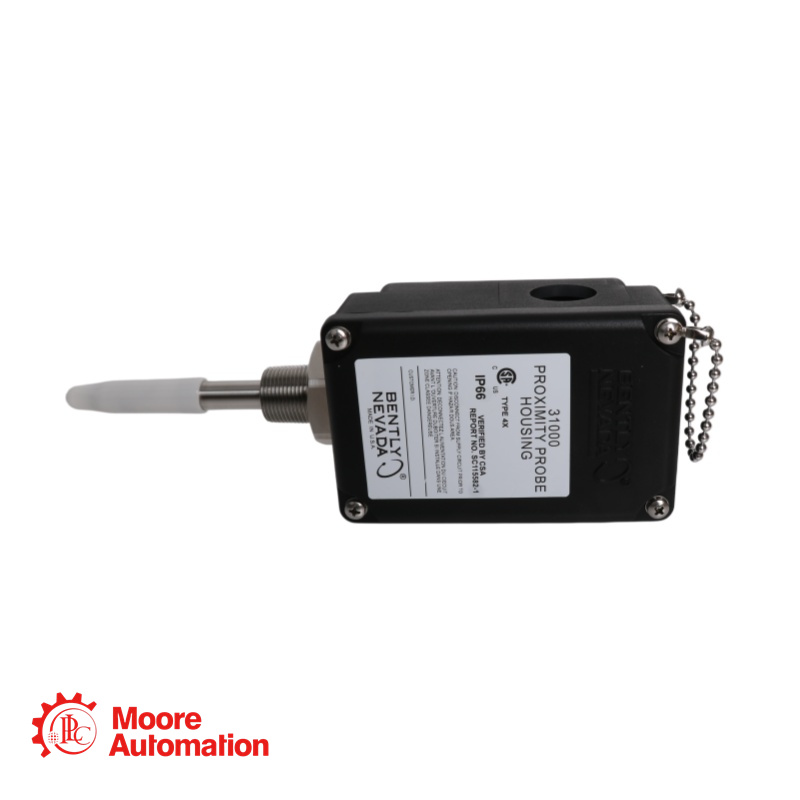

Product typeProximity Probe Housing Assembly
Product family31000 Housing
Mounting thread3/4-14 NPT
Detailed Measurement Data ＋
FunctionExternal access for gap adjustment and probe replacement
MeasurementDetermined by the installed probe system
Enclosure limitationMechanical/environmental protection; not an explosion-proof housing
Cable and Installation ＋
Probe option3300 XL 8 mm; multiple approvals
Cable length1.0 m
Standoff1.5 in
Penetration4.0 in
Fitting set 03NPT fitting, reducer, plugs and cable-seal hardware
Environment and Certification ＋
Verify the supplied markings, applicable approvals and installation limits against the current manufacturer documentation. A suffix alone does not establish suitability for a hazardous-area installation.
Source: Bently Nevada 141610. System values require the complete compatible transducer configuration and the manufacturer’s stated conditions.
FAQ
Questions Buyers Ask Most
What is 31000 used for?＋
An externally accessible housing assembly for mounting a proximity probe through the machine case.
What does the 31000-28-10-15-040-03-02 code specify?＋
28: XL 8 mm probe with multiple approvals; 10: 1.0 m probe cable; 15: 1.5 in standoff; 040: 4.0 in penetration; 03: fitting set; 02: 3/4-14 NPT mounting.
Can a similar part number be substituted?＋
Do not substitute by appearance or family name alone. Compare the full suffix, dimensions, connections and system configuration.
Is this a complete measurement system?＋
No. This housing assembly supports the probe; the compatible transducer and monitor configuration must be selected separately.
What should I provide for a quotation?＋
Send the complete 31000-28-10-15-040-03-02 nameplate, quantity, installed-system details and delivery destination.
CONTACT PRODUCT SPECIALIST
Check your configuration with Frida
Share the complete label and system details for compatibility, availability and lead-time checking.
Technical statements on this product page are limited to publicly available Bently Nevada / Baker Hughes manufacturer documentation. No third-party product sources were used.
SYSTEM RELATIONSHIP
How 31000 Fits into the Measurement System
Bently Nevada is the manufacturer. 31000-28-10-15-040-03-02 is a proximity probe housing assembly. It must be matched to the installed 31000 Proximity Probe Housing Assembly.
31000 Housing SystemPRODUCT FAMILY · COMPLETE SYSTEM
MECHANICAL SUPPORT
Probe Housing
The housing provides mechanical mounting and external access at the machine case.
SENSING COMPONENT
Installed Probe
The selected probe must match the required measurement and electrical system configuration.
SIGNAL CHAIN
Monitoring System
The compatible Proximitor Sensor and monitoring equipment complete the measurement chain.
System relationship: compatible component types and total system length must match the Bently Nevada 31000 Housing system requirements.
APPLICATION AREAS
Application mind map for 31000
External Probe MountingPositions a probe through the machine case.
Maintenance AccessAllows external probe adjustment and replacement.
APPLICATION CENTER
31000Proximity Probe Housing Assembly
Radial MonitoringMatch the housing and probe to the bearing-case installation.
Replacement ReviewVerify sleeve penetration, standoff, threads and fitting set.
