Bently Nevada 27465-01 Weatherproof Valve Position Transducer Assembly
Bently Nevada 27465-01 Weatherproof Valve Position Transducer Assembly
Bently Nevada 27465-01 Weatherproof Valve Position Transducer Assembly

Bently Nevada 27465-01 Weatherproof Valve Position Transducer Assembly

27465 · VALVE POSITION TRANSDUCER

27465-01

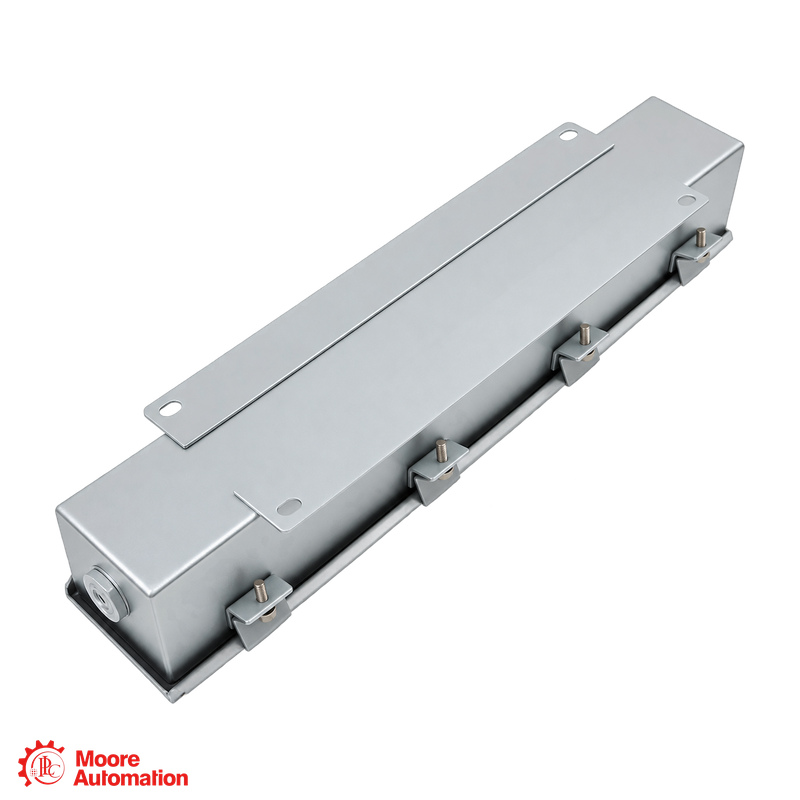

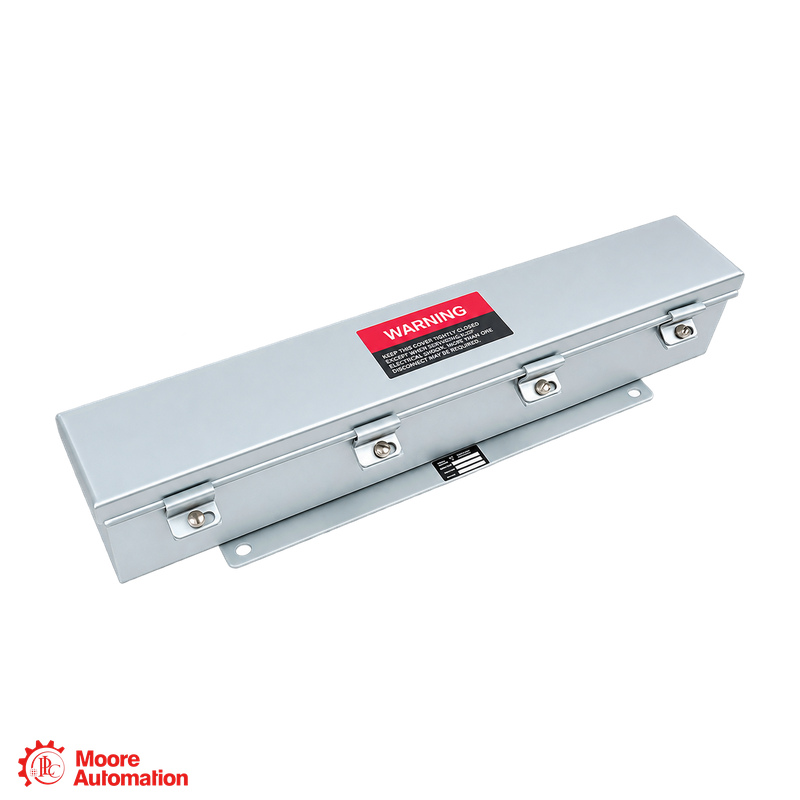

27465-01 — a Bently Nevada weatherproof valve-position transducer housing with an included 18639-07 AC LVDT. The manufacturer lists a 254 mm (10 in) range for this exact assembly.

RANGE254 mm
DIMENSION A368 mm
DIMENSION B343 mm
DIMENSION C508 mm
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Jetzt anfragen
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 27465 WEATHERPROOF VALVE-POSITION ASSEMBLY
AC LVDT · VALVE POSITION

27465-01

254 mm range · weatherproof housing

27465 Weatherproof AC LVDT Valve Position Assembly

STEAM TURBINE GOVERNOR VALVE POSITION
27465-01 — A Bently Nevada weatherproof housing assembly for steam-turbine governor-valve position measurement. The manufacturer table lists an included 18639-07 AC LVDT with a 254 mm (10 in) range.
CONFIGURATION NOTE
The exact 27465-01 weatherproof-housing reference includes the 18639-07 AC LVDT. Verify the complete housing code, valve stroke, connecting-rod arrangement and monitor input before ordering.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

27465
Housing familyWeatherproof AC LVDT valve-position housing
01
Exact assemblyIncludes 18639-07 AC LVDT · 254 mm range
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
27465 WEATHERPROOF VALVE-POSITION HOUSING

Engineering data at a glance

Click “+” to expand more specifications.

RANGE254 mm
DIMENSION A368 mm
DIMENSION B343 mm
DIMENSION C508 mm
Exact weatherproof-housing data from manufacturer Table 1.
Configuration note 27465-01 is the weatherproof housing row that includes the 18639-07 AC LVDT with a 254 mm range. Dimensions A, B and C are drawing-specific and must not be mistaken for bare-sensor dimensions.
General Information −
BrandBently Nevada

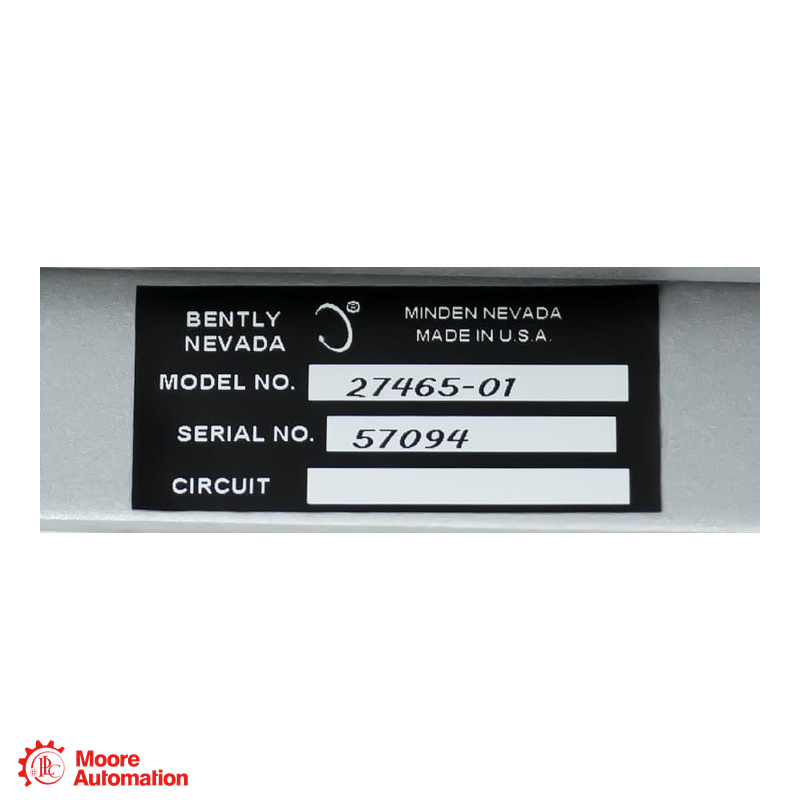

Part number27465-01
Product typeWeatherproof AC LVDT valve-position housing
Included transducer18639-07 AC LVDT
Range254 mm (10 in)
Primary applicationSteam-turbine governor-valve position
Exact Housing Dimensions ＋
Manufacturer drawingTable 1 weatherproof housing
Dimension A368 mm (14.5 in)
Dimension B343 mm (13.5 in)
Dimension C508 mm (20.0 in)
Included AC LVDT18639-07
Included LVDT Ratings ＋
Transducer typeAC linear variable differential transformer
Nominal range254 mm (10 in)
Linearity0.25% of full-scale
Null voltage0.5% of full-scale maximum
Operating temperature−54°C to +149°C · transducer datasheet
System and Installation ＋
Compatible monitor3500/45 Position Monitor or 3300/70 Dual Valve Position Indicator
Measured variableGovernor valve opening / position
Connection rodSelect separately if linkage requires it
CE installationFerrite bead at transducer end of field wiring
Installation referenceAC LVDT Installation Manual 75723-01
Source: Bently Nevada Valve Position Transducer Datasheet 141597-01 Rev. E, Table 1. See official manufacturer document.
FAQ

Questions Buyers Ask Most

What is included in 27465-01?＋

27465-01 The official weatherproof-housing table identifies the included 18639-07 AC LVDT; this code is for the housed assembly, not a bare LVDT.

What valve-position range does 27465-01 cover?＋

27465-01 The manufacturer lists a 254 mm (10 in) range for the included 18639-07 AC LVDT.

Which position monitors can use 27465-01?＋

27465-01 The AC LVDT valve-position system is specified for a 3500/45 Position Monitor or 3300/70 Dual Valve Position Indicator; verify the configured input before connection.

Which housing dimensions apply to 27465-01?＋

27465-01 Manufacturer Table 1 lists drawing dimensions A 368 mm, B 343 mm and C 508 mm for this exact weatherproof-housing reference.

What should be verified before ordering 27465-01?＋

For 27465-01 confirm the full housing code, 254 mm valve stroke, compatible monitor, connecting-rod arrangement and any CE ferrite-bead requirement.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 27465-01 marking, 254 mm valve-stroke requirement, compatible monitor, weatherproof-housing installation and connecting-rod details for configuration checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Documentation and Manufacturer References for
27465-01

The official Bently Nevada Valve Position Transducer datasheet lists the exact 27465-01 weatherproof housing, included 18639-07 AC LVDT, 254 mm range and drawing dimensions.

Official manufacturer datasheet

View the manufacturer-hosted Valve Position Transducer datasheet and confirm the 27465-01 row in the weatherproof-housing table.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the full housing model, quantity, valve stroke, monitor type and linkage or connecting-rod details.

Technical statements use the official Bently Nevada Valve Position Transducer Datasheet 141597-01 Rev. E, especially the 27465-01 weatherproof-housing row.

GOVERNOR VALVE POSITION MEASUREMENT CHAIN

How 27465-01 Fits into Valve Position Monitoring

Bently Nevada is the manufacturer. 27465-01 is a weatherproof housing assembly that includes an 18639-07 AC LVDT for governor-valve opening measurement with a compatible position monitor.

Bently Nevada · BRAND
Valve Position SystemPRODUCT FAMILY · AC LVDT POSITION TRANSDUCER
HOUSING

27465 Weatherproof Housing

The 27465-01 assembly includes the 18639-07 AC LVDT.

AC LVDT

18639-07 · 254 mm

The included AC LVDT has a 254 mm (10 in) range.

MONITOR

3500/45 or 3300/70

The manufacturer specifies a 3500/45 Position Monitor or 3300/70 Dual Valve Position Indicator for this AC LVDT system.

System relationship: verify valve stroke, connecting-rod linkage, weatherproof-housing fit and monitor input configuration before replacement or commissioning.
APPLICATION AREAS

Applications for 27465-01

Governor Valve OpeningTracks the position of steam-turbine governor valves via the AC LVDT core.
Steam-Flow AdjustmentValve-opening data supports adjustment of steam flow to individual valves.
APPLICATION CENTER 27465-01 27465-01 Weatherproof AC LVDT Valve Position Assembly
3500/45 IntegrationThe AC LVDT system can be connected to a 3500/45 Position Monitor.
3300/70 IntegrationThe system can be connected to a 3300/70 Dual Valve Position Indicator.
