24765 · CASE EXPANSION TRANSDUCER

24765-02-00

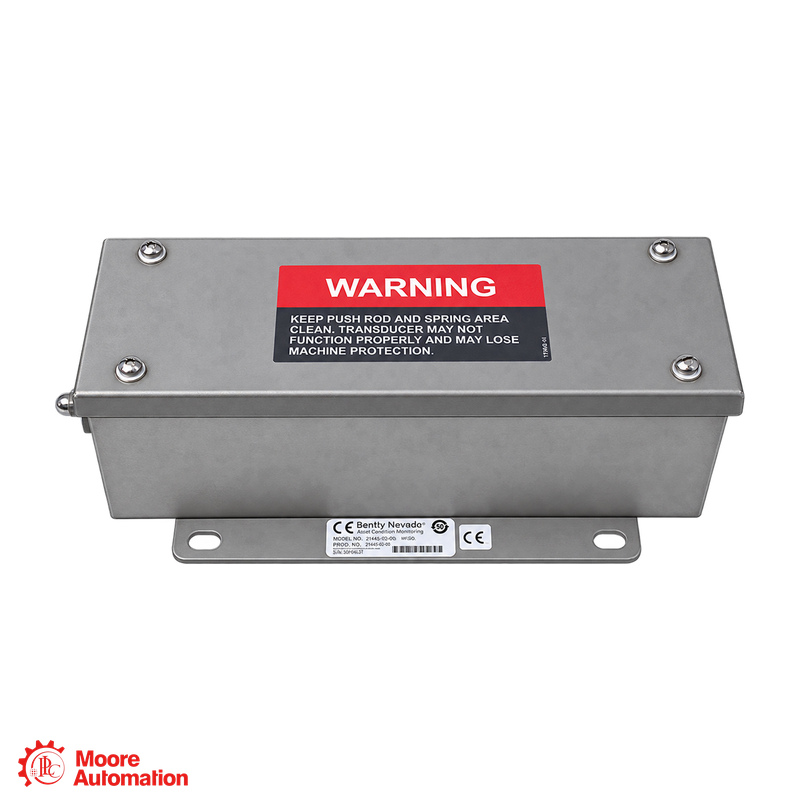

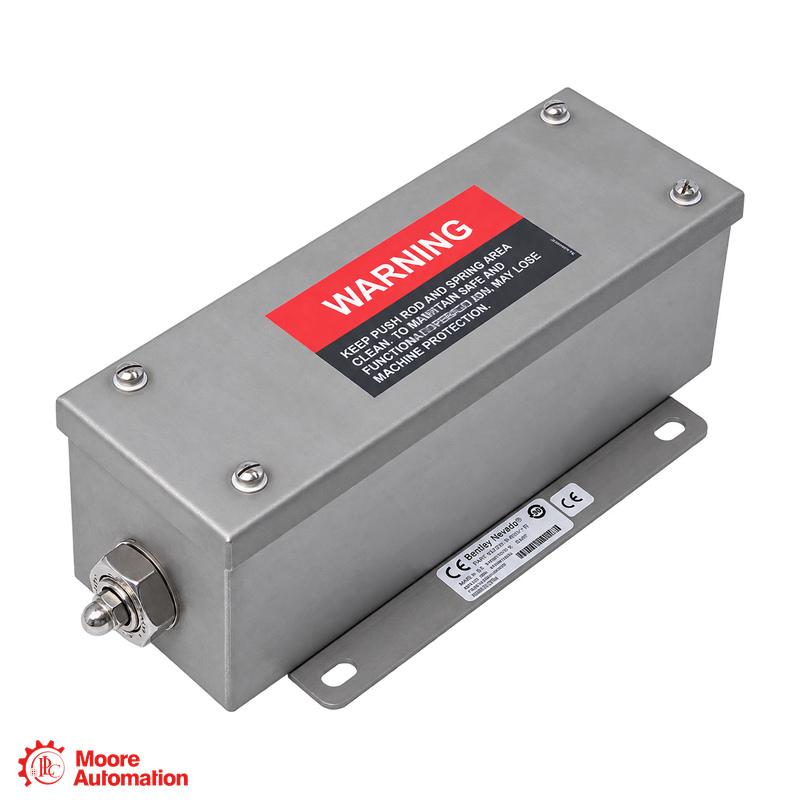

24765-02-00 — a Bently Nevada 24765 DC LVDT case-expansion transducer assembly. The 02 range option provides ±25.4 mm linear travel, while 00 specifies no spring return.

HEIGHT88.9 mm
WIDTH117 mm
DEPTH241 mm
WEIGHT2.3 kg
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Jetzt anfragen
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 24765 CASE EXPANSION TRANSDUCER
DC LVDT · CASE EXPANSION

24765-02-00

±25.4 mm linear range · no spring return

24765 DC LVDT Case Expansion Transducer Assembly

TURBINE CASE EXPANSION MONITORING
24765-02-00 — A Bently Nevada DC LVDT assembly for measuring turbine-casing thermal growth relative to the foundation. The 02 range and 00 spring options identify the ±25.4 mm linear-range version without spring return.
CONFIGURATION NOTE
24765 identifies the DC LVDT case-expansion assembly; 02 is the 50.8 mm (2 in) ordering range option with ±25.4 mm specified linear range; 00 means without spring return.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

24765
Assembly familyDC LVDT case-expansion transducer
02
Range option50.8 mm ordering range; ±25.4 mm linear span
00
Spring optionWithout spring return
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
24765 CASE EXPANSION TRANSDUCER

Engineering data at a glance

Click “+” to expand more specifications.

HEIGHT88.9 mm
WIDTH117 mm
DEPTH241 mm
WEIGHT2.3 kg
Exact-model mechanical data from the manufacturer datasheet.
Configuration note 24765-02-00 specifies the 24765 DC LVDT with the 50.8 mm range option and no spring return. The manufacturer rates this option for ±25.4 mm linear travel, 0.404 V/mm scale factor and +24 Vdc input.
General Information −
BrandBently Nevada
Part number24765-02-00
Product typeDC LVDT case-expansion transducer
Height88.9 mm
Width117 mm
Length241 mm
Weight2.3 kg
Ordering Configuration ＋
Base family24765 DC LVDT assembly
Range option 0250.8 mm (2 in) ordering range
Specified linear range±25.4 mm (±1 in)
Spring option 00Without spring return
Electrical and Signal ＋
Input power+24 Vdc; 30 mA minimum
Scale factor0.404 V/mm
Output impedance7 kΩ nominal
Minimum load100 kΩ
Linearity±0.5% full-range
Mechanical and Environment ＋
−3 dB frequency15 Hz
Operating temperature−18°C to +71°C
Housing ratingNEMA 3
Machine-end thread1/4-20 UNC-2A
Core-end thread6-40 UNF-2B
Source: Bently Nevada 24765 and 135613 Case Expansion Transducer Systems Datasheet 141598 Rev. L. See official manufacturer document.
FAQ

Questions Buyers Ask Most

How is 24765-02-00 decoded?＋

24765-02-00 The 24765 family is a DC LVDT case-expansion transducer; 02 selects the 50.8 mm ordering range and 00 specifies no spring return.

What linear travel and scale factor does 24765-02-00 provide?＋

24765-02-00 Its specified linear travel is ±25.4 mm and nominal scale factor is 0.404 V/mm.

What power and output loading does 24765-02-00 require?＋

24765-02-00 The manufacturer specifies +24 Vdc at 30 mA minimum, 7 kΩ nominal output impedance and a minimum 100 kΩ load.

What should be checked before installing 24765-02-00?＋

For 24765-02-00 check foundation-to-case mounting, available rod travel, alignment and the required transducer arrangement against the installation drawing.

What details should accompany a 24765-02-00 quotation?＋

For 24765-02-00 provide the complete marking, quantity, 50.8 mm range, no-spring configuration, monitor interface and mounting details.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 24765-02-00 marking, installed monitor reference, available travel, mounting arrangement and commissioning requirements for configuration checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Documentation and Manufacturer References for
24765-02-00

The official Bently Nevada 24765/135613 manufacturer datasheet documents the 24765-02-00 ordering fields, case-expansion application, electrical performance and mechanical dimensions.

Official manufacturer datasheet

View the manufacturer-hosted case expansion transducer systems datasheet for the 24765-02-00 range and no-spring ordering configuration.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, monitor interface, machine mounting context and your technical or purchasing question.

Technical statements and order-code meanings use the official Bently Nevada 24765 and 135613 Case Expansion Transducer Systems Datasheet 141598 Rev. L.

CASE EXPANSION MEASUREMENT CHAIN

How 24765-02-00 Fits into Case Expansion Monitoring

Bently Nevada is the manufacturer. 24765-02-00 is a DC LVDT assembly measuring differential case expansion between machine foundation and turbine case through its mechanical linkage and monitor interface.

Bently Nevada · BRAND
Case Expansion SystemPRODUCT FAMILY · DC LVDT TRANSDUCER
TRANSDUCER

24765 DC LVDT

The 02 option specifies a 50.8 mm ordering range with ±25.4 mm linear travel.

MECHANICAL

00 · No Spring

The 00 option specifies an assembly without spring return.

SIGNAL

24 Vdc and Monitor

The DC LVDT uses +24 Vdc and provides a 0.404 V/mm nominal scale factor to the monitor.

System relationship: check transducer range, mechanical mounting, rod travel, electrical loading and monitor calibration before replacing or commissioning.
APPLICATION AREAS

Applications for 24765-02-00

Turbine Case ExpansionMeasures axial case movement relative to the foundation as the turbine heats and cools.
Case Expansion TrendingProvides DC LVDT displacement data to a compatible case-expansion monitor.
APPLICATION CENTER 24765-02-00 24765 DC LVDT Case Expansion Transducer
Turbine Start-up ChecksHelps track changing case position during start-up and shutdown.
Case-to-Foundation TrendSupports trend monitoring of thermal case growth within the specified travel.
ABOUT MOORE AUTOMATION
