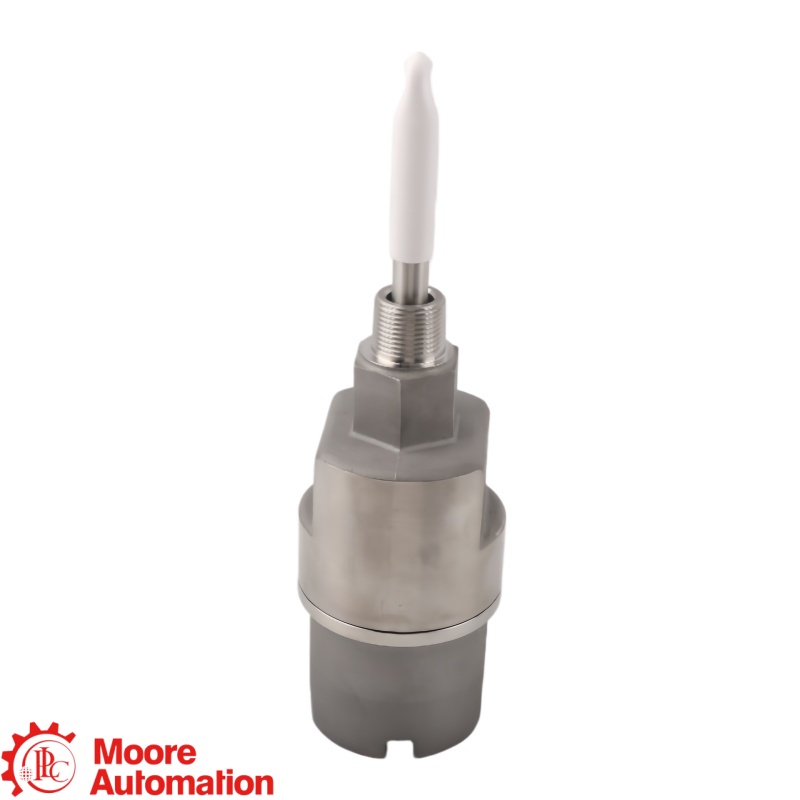

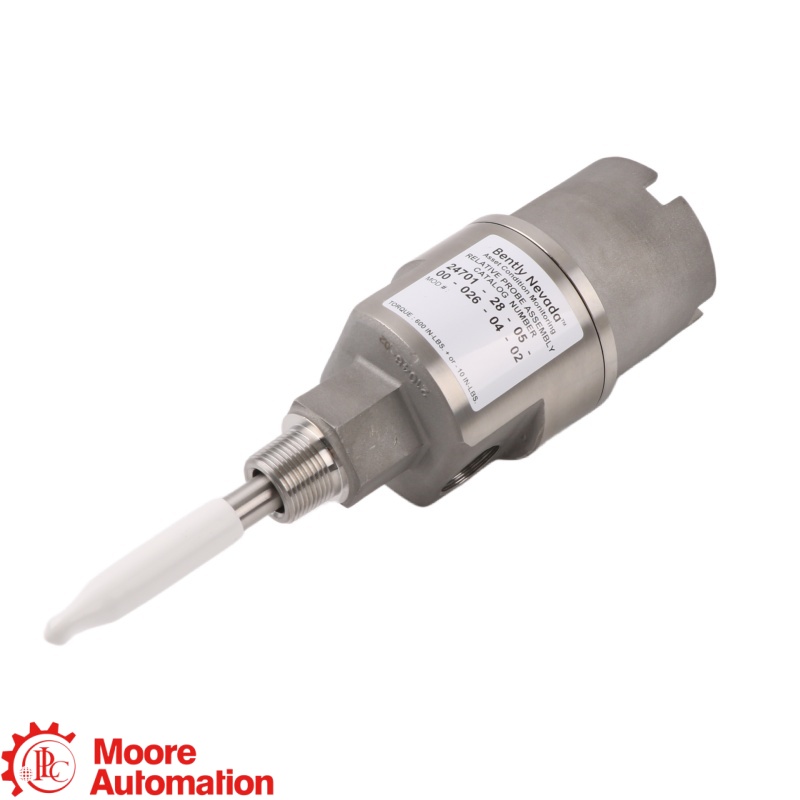

Bently Nevada 24701-00-00-15-037-04-02 Stainless Steel Proximity Probe Housing Assembly
Bently Nevada 24701-00-00-15-037-04-02 Stainless Steel Proximity Probe Housing Assembly
Bently Nevada 24701-00-00-15-037-04-02 Stainless Steel Proximity Probe Housing Assembly

Bently Nevada 24701-00-00-15-037-04-02 Stainless Steel Proximity Probe Housing Assembly

24701 STAINLESS STEEL · HOUSING ASSEMBLY

24701-00-00-15-037-04-02

The 24701-00-00-15-037-04-02 is a Bently Nevada stainless steel proximity probe housing assembly for external probe mounting and protection.

MATERIALSTAINLESS STEEL
PROBENOT INCLUDED
STANDOFF1.5 IN
PENETRATION3.7 IN
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Jetzt anfragen
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● STAINLESS STEEL HOUSING
24701 PROXIMITY PROBE HOUSING ASSEMBLY

24701-00-00-15-037-04-02

STAINLESS STEEL · 24701 SERIES

External-Mount Proximity Probe Housing Assembly

MEASUREMENT ROLE
24701-00-00-15-037-04-02 is a stainless steel housing assembly used to externally mount and protect a compatible Bently Nevada proximity probe installation.
CONFIGURATION NOTE
For 24701-00-00-15-037-04-02, the official ordering table specifies no probe or cable, a 1.5 in standoff, 3.7 in probe penetration, one 3/4-14 NPT plug and a 3/4-14 NPT mounting thread.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

What is confirmed—and what requires verification

24701
Housing familyStainless steel housing
00
ProbeNot included
00
Probe cableNot included
15
Standoff1.5 in (38 mm)
037
Probe penetration3.7 in (94 mm), adjustable ±0.5 in
04
FittingOne 3/4-14 NPT plug
02
Mounting thread3/4-14 NPT
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

24701 Housing Assembly ↗
24701 STAINLESS STEEL HOUSING FAMILY

Engineering data at a glance

Click “+” to expand more specifications.

BODY303 STAINLESS STEEL
SLEEVE304 STAINLESS STEEL
PROBENOT INCLUDED
WEIGHT1.8 KG TYPICAL
Official Bently Nevada product data.
Exact configuration verification Verify the complete order number 24701-00-00-15-037-04-02against the current official housing assembly datasheet before ordering.
General Information −
BrandBently Nevada
Part number24701-00-00-15-037-04-02
Product typeProximity Probe Housing Assembly
Product family24701 Stainless Steel Housing
Mounting styleExternal mount
Mounting thread3/4-14 NPT
Housing Construction and Dimensions ＋
Body material303 stainless steel
Sleeve material304 stainless steel
Typical mass1.8 kg (4.1 lb), without fittings
Ordering Configuration ＋
Probe with connectorNot required (code 00)
Probe cableNot required (code 00)
Standoff adapter1.5 in (38 mm), code 15
Probe penetration3.7 in (94 mm), code 037
Fitting / mountingOne 3/4-14 NPT plug / 3/4-14 NPT thread
Environment and Certification ＋
Environmental and hazardous-area suitability depend on the exact ordered configuration. Verify 24701-00-00-15-037-04-02 against the current official manufacturer datasheet and approvals guide.
Source: Bently Nevada 21000, 24701 and 164818 Proximity Probe Housing Assemblies, Document 141600, Rev. AC.
FAQ

Questions Buyers Ask Most

What is 24701-00-00-15-037-04-02 used for?＋

24701-00-00-15-037-04-02 is a stainless steel housing assembly used to externally mount and protect a compatible proximity probe installation.

What do the ordering codes in 24701-00-00-15-037-04-02 mean?＋

For 24701-00-00-15-037-04-02, codes 15 and 037 specify a 1.5 in standoff and 3.7 in probe penetration; the remaining codes identify no probe or cable, fitting 04 and mounting thread 02.

Does 24701-00-00-15-037-04-02 include a proximity probe?＋

No. 24701-00-00-15-037-04-02 uses option 00 for no probe and option 00 for no probe cable; order the compatible sensing components separately.

Which fitting and mounting thread are supplied with 24701-00-00-15-037-04-02?＋

24701-00-00-15-037-04-02 specifies one 3/4-14 NPT plug and a 3/4-14 NPT mounting thread under options 04 and 02.

What quotation details are needed for 24701-00-00-15-037-04-02?＋

For 24701-00-00-15-037-04-02, provide the complete nameplate, installed probe model, housing dimensions, mounting location, quantity, destination and clear application photos.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete label and system details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
24701-00-00-15-037-04-02

Official Bently Nevada documentation for the 21000, 24701 and 164818 Proximity Probe Housing Assemblies.

21000, 24701 and 164818 Proximity Probe Housing Assemblies

Bently Nevada datasheet 141600 Rev. AC. Refer to the 24701 ordering information for stainless steel construction, option decoding, fittings, mounting threads, dimensions and mass.

OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements on this product page are limited to publicly available Bently Nevada / Baker Hughes manufacturer documentation. No third-party product sources were used.

24701 HOUSING SYSTEM RELATIONSHIP

How 24701-00-00-15-037-04-02 Supports External Probe Installation

Bently Nevada is the brand; the 24701 Stainless Steel Housing Family provides external probe protection; and 24701-00-00-15-037-04-02 is the no-probe, no-cable configuration with defined standoff, penetration, fitting and mounting-thread options.

Bently Nevada · BRAND
24701 Stainless Steel HousingPRODUCT FAMILY · PROBE ACCESSORY
PROTECTIVE HOUSING

Stainless Steel Body

The 303 stainless steel body and 304 stainless steel sleeve protect the external probe installation.

MOUNTING INTERFACE

Standoff and Sleeve

The 1.5 in standoff and 3.7 in penetration options define the ordered installation geometry.

SENSOR INTEGRATION

Compatible Proximity Probe

This configuration ships without a probe or probe cable; select compatible sensing components separately.

System relationship: verify the housing options, probe selection, cable routing, mounting thread and application approvals as one installation.
APPLICATION AREAS

Application mind map for the 24701 Stainless Steel Housing

External Probe MountingStainless steel housing for externally mounted probes
Installation ProtectionMechanical protection for probe and sleeve assemblies
APPLICATION CENTER 24701 Housing External proximity probe housing assembly
Bearing Housing AccessControlled standoff and probe penetration geometry
Maintenance RetrofitExact fitting and thread verification for replacement
