Marke :
Bently NevadaArtikelnummer :
330880-16-00-039-03-02Gewicht :
1.35 kgAbmessungen :
36.5x9x9.3cmHerkunftsland :
USAHS-Code :
8537101190Beschreibung :

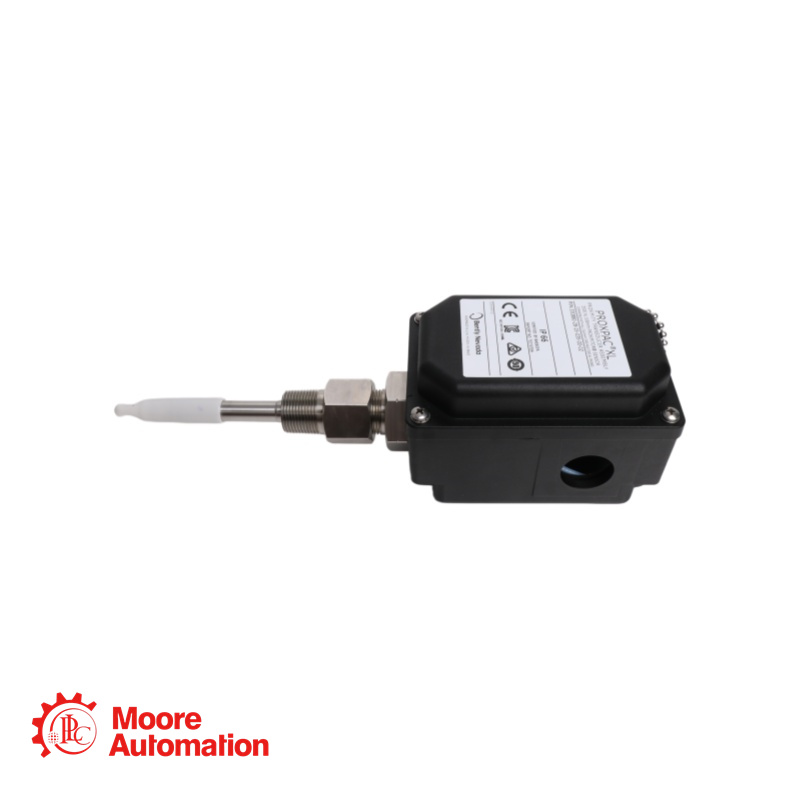

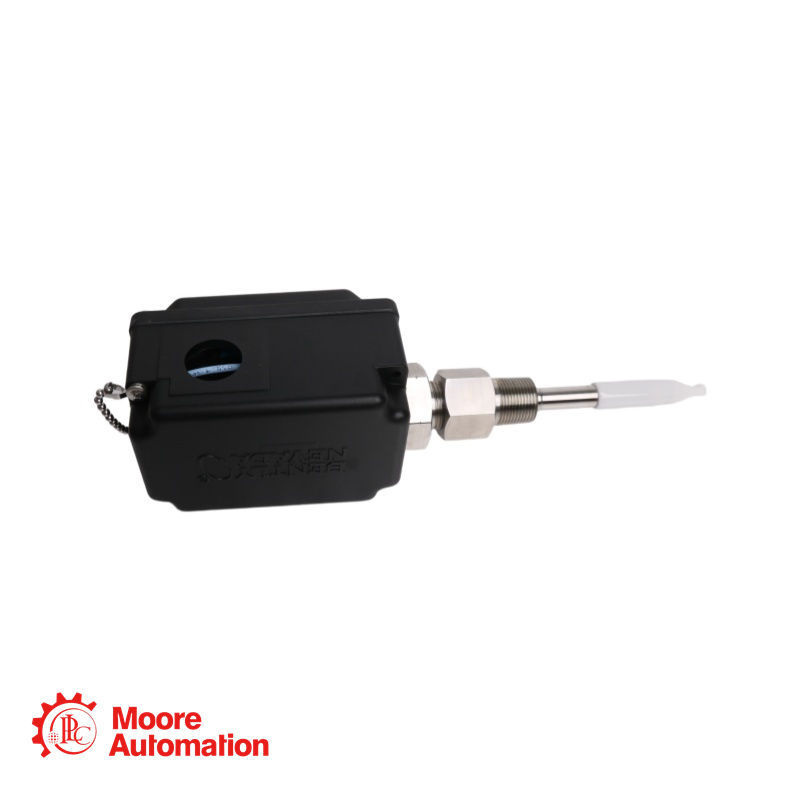

Proximity Transducer
※Contact & Order
✉ Email: sales5@mooreplc.com
※Part Number Breakdown
B (Standoff Adapter):00 No standoff adapter
C (Probe Penetration):039 3.9 inches (99 mm) probe sleeve penetration
D (Fittings):03 One 3/4-14 NPT fitting, one 3/4-14 NPT to 1/2-14 NPT SST reducer, two plugs
E (Mounting Thread):02 3/4-14 NPT outer sleeve assembly (required with standoff adapter)
※General Information
Field
Value
Product ID
330880-16-00-039-03-02
Type Designation
PROXPAC XL Proximity Transducer Assembly
Manufacturer
Bently Nevada
Catalog Description
Self-contained proximity probe system with integrated Proximitor sensor
Long Description
The PROXPAC XL combines a 3300 XL 8 mm probe, Proximitor sensor, and housing into a single assembly. No separate extension cable or Proximitor housing required. PPS thermoplastic housing rated IP66/Type 4X. Ideal for severe environments.
Product Family
3300 XL Series
※Core Data
Parameter
Specification
Probe type
3300 XL 8 mm with 1m integral cable
Linear range
2 mm (80 mils) from 0.25 mm to 2.3 mm (−1 Vdc to −17 Vdc)
Recommended gap
1.27 mm (50 mils)
Incremental Scale Factor (ISF)
7.87 V/mm (200 mV/mil) ±5%
Deviation from straight line (DSL)
< ±0.025 mm (±1 mil) @ 0°C to +45°C
Frequency response
0–10 kHz, +0/−3 dB (up to 305 m field wiring)
Power required
−17.5 Vdc to −26 Vdc @ 12 mA max
Output resistance
50 Ω
Minimum target diameter
15.2 mm (0.6 in) flat
Minimum shaft diameter
50.8 mm (2.0 in)
※Applications
Compressors:Shaft vibration & position in centrifugal/reciprocating compressors
Pumps:Bearing vibration & shaft position in large industrial pumps
Fans & blowers:Critical asset protection
Oil & gas:Offshore platforms, refineries, pipelines
Power generation:Steam/gas turbines, generators, hydro plants
Marine:Main propulsion shaft monitoring (ABS/DNV certified)
|
