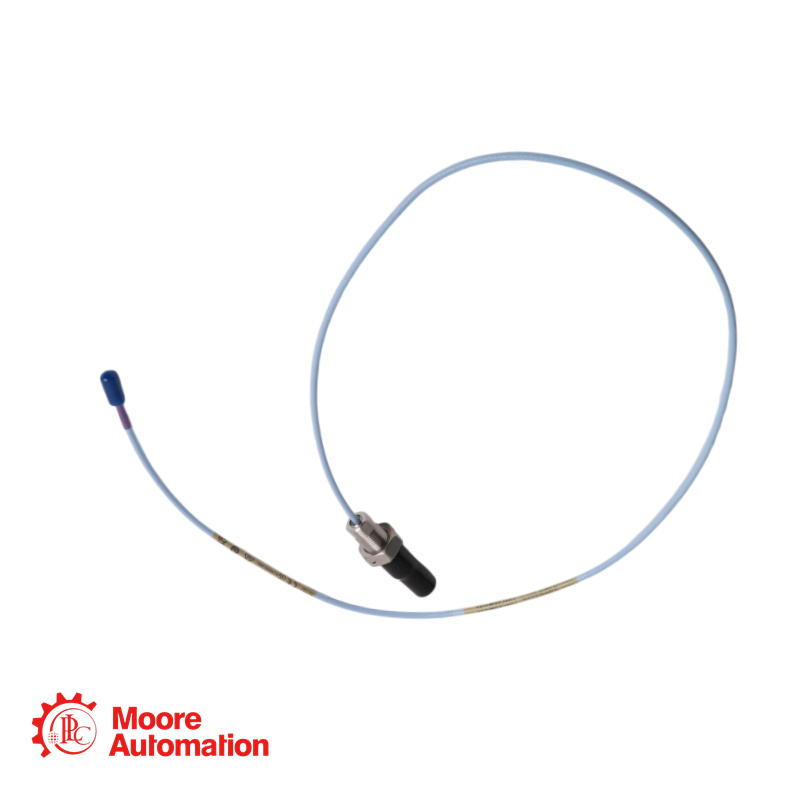

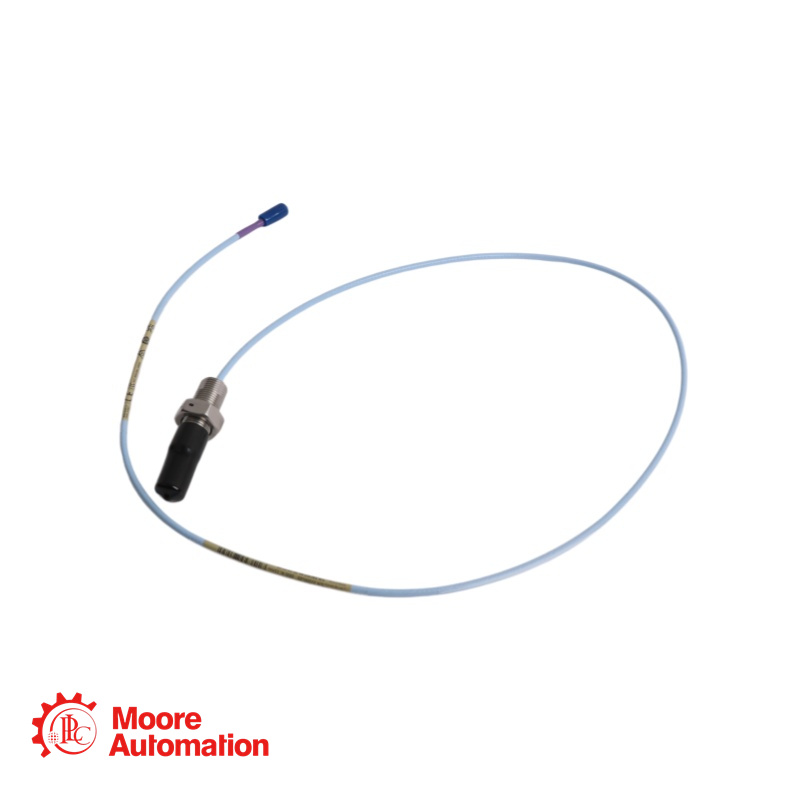

The Bently Nevada 330707-00-20-10-11-00 is a 3300 XL 11 mm proximity probe.
Marke :
Bently NevadaArtikelnummer :
330707-00-20-10-11-00Gewicht :
0.1 kgAbmessungen :
2.6x2.3x123cmHerkunftsland :
USAHS-Code :
8537101190Beschreibung :
Proximity Probe
330707-00-20-10-11-00
The Bently Nevada 330707-00-20-10-11-00 is a 3300 XL 11 mm proximity probe, an eddy current sensor that measures displacement and vibration of rotating machinery shafts without physical contact. The 11 mm diameter provides a larger linear measurement range than smaller probes, making it suitable for applications with greater shaft movement or larger gap requirements.
Technical Specifications for 330707-00-20-10-11-00
|
Part Number |
330707-00-20-10-11-00 |
|
Series |
3300 XL |
|
Probe Diameter |
11 mm (0.43 in) |
|
Tip Material |
PPS (Polyphenylene sulfide) |
|
Case Material |
AISI 304 Stainless Steel |
|
Case Length |
2.0 inches (50.8 mm) |
|
Cable Length |
1.0 meter (3.3 ft) |
|
Cable Type |
75Ω triaxial, FEP insulated |
|
Mounting Thread |
5/8-18 UNF |
|
Connector |
ClickLoc™ with connector protector & FluidLoc cable |
|
Resistance (loop) |
5.9 Ω ±0.5 |
|
Temperature Range (operating) |
-51°C to +177°C (-60°F to +351°F) |
FAQ about 330707-00-20-10-11-00
What is the difference between 330707 and other 3300 XL probes?
The 3307 prefix indicates an 11 mm probe with 5/8-18 UNF thread, 2.0 inch case length, and connectorized configuration. Other prefixes:
330101 – 5 mm probe
330103 – 5 mm probe (metric thread)
330104 – 8 mm probe
330106 – 8 mm probe (reverse mount)
330707 – 11 mm probe
What is the linear measurement range of this 11 mm probe?
The 11 mm probe provides a larger linear range than smaller probes. While not specified in the datasheet, typical linear range for 11 mm probes is approximately 1.0 mm to 4.0 mm (40 to 160 mils) gap.
Can I extend the cable length beyond 1.0 meter?
Yes. The 3300 XL system supports extension cables (330130 series) to reach the proximitor. For this specific probe with code "10" (1.0 m cable), you can add extension cables up to a total system length of 305 meters (1000 feet) . Standard extension cable lengths: 1.0 m, 2.0 m, 3.0 m, 4.0 m, 5.0 m, 7.5 m, 8.0 m, 9.0 m.
What is the minimum safe operating temperature for the seal?
While the probe can operate at -51°C, the Viton O-ring seal becomes brittle below -34°C (-30°F) .
What is the resistance of the probe loop?
The total loop resistance (probe + cable) is 5.9 Ω ±0.5.
|
