Proximity Probe Housing Assembly

24701-34-05-00-030-04-02:

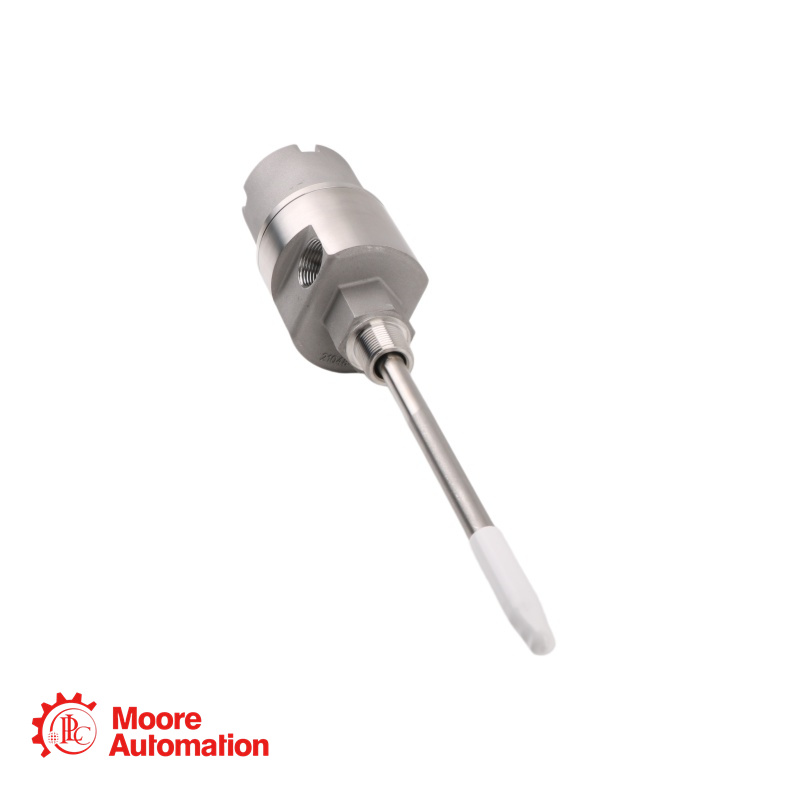

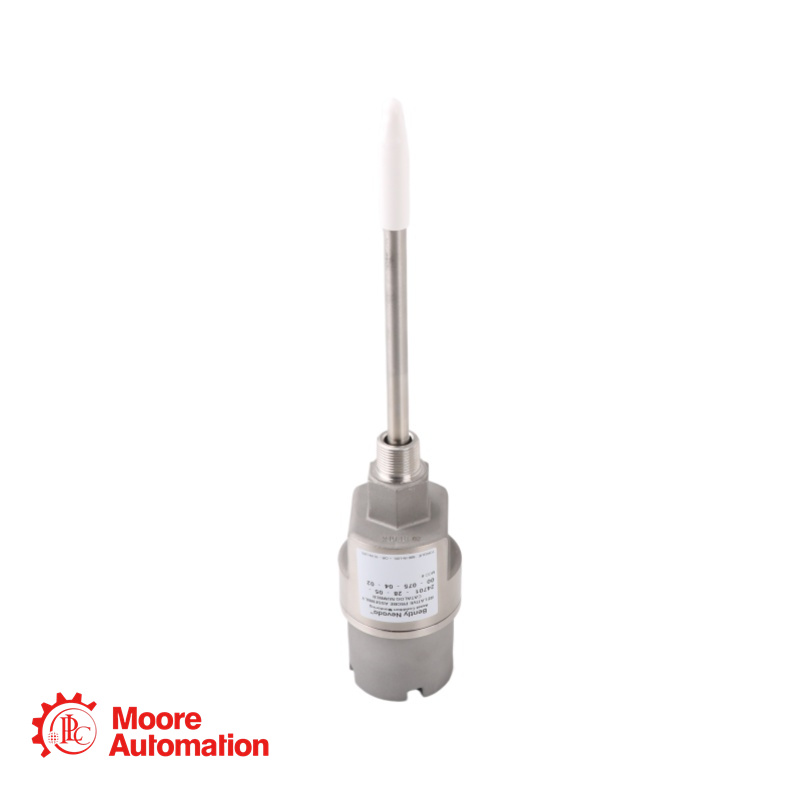

This is a 24701 Proximity Probe Housing Assembly manufactured by Bently Nevada (Baker Hughes). It is an all-metal housing constructed from 303 stainless steel body with a 304 stainless steel sleeve. It includes a pre-installed 3300 XL 8 mm proximity probe (with connector protector) and a 0.5-meter cable.

Parameters - 24701-34-05-00-030-04-02

Probe Type:3300 XL 8 mm (Reverse Mount, with Connector Protector)
Probe Cable Length:0.5 meter
Probe Penetration (Sleeve Length):3.0 inches (76.2 mm)
Mounting Thread:3/4-14 NPT (Machined for 5-7 full threads for increased stiffness)
Housing Material:303 Stainless Steel (Body), 304 Stainless Steel (Sleeve)

Application Areas - 24701-34-05-00-030-04-02

Radial Vibration Monitoring: Steam turbines, gas turbines, centrifugal compressors, pumps, and generators.
Keyphasor (Phase Reference/Speed) Measurement
Industry Compliance & Environment: Machinery Protection Systems in the Oil & Gas, Petrochemical, and Power Generation industries.

Important Cautions - 24701-34-05-00-030-04-02

Explosion-Proof Integrity: Although the housing is metal, the CSA explosion-proof certification is only valid when ordered with specific "EE" (Fittings) options. Option 04 (One plug only) is compliant. Options like 03 (Cable gland) are not rated explosion-proof for this housing series.
Connector Protector: Option AA = 34 includes a connector protector. This is a metal shield that protects the probe connector interface inside the housing.
Sleeve Support: The total penetration length (CC=00 + DDD=3.0 in) is 3.0 inches. This is less than the 12-inch limit, so no additional sleeve support is required.
