Marke :
Bently NevadaArtikelnummer :
21000-34-10-00-078-04-02Gewicht :
1.2kgAbmessungen :
31x8.5x8.5cmHerkunftsland :
USAHS-Code :
8537101190Beschreibung :

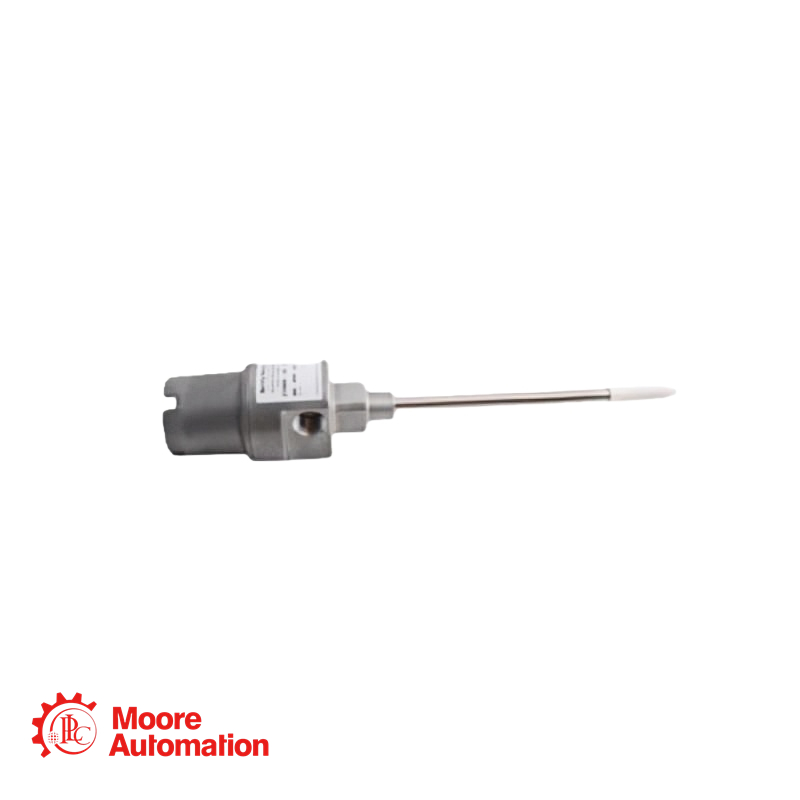

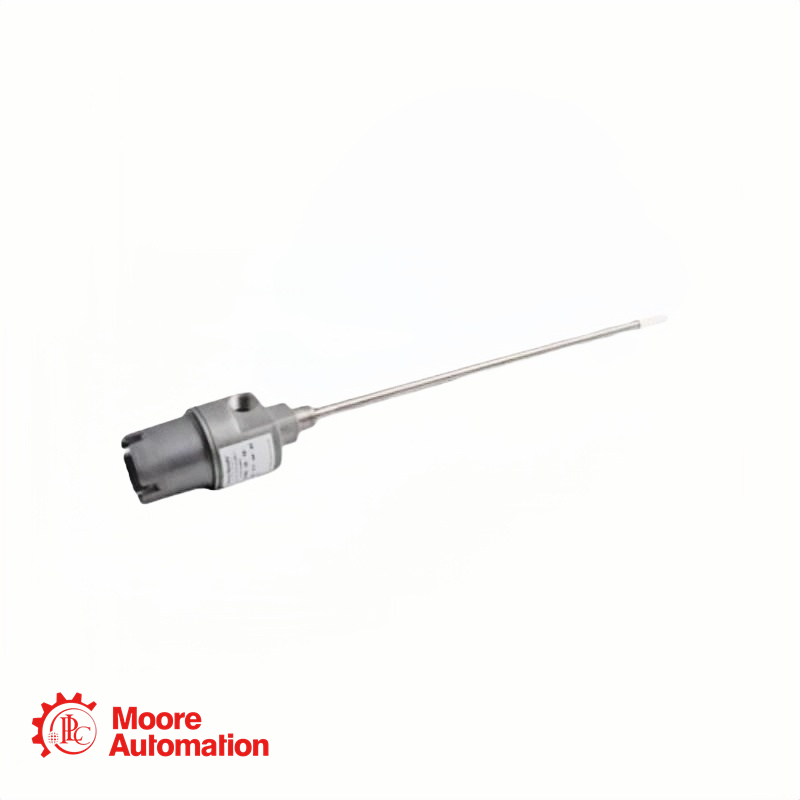

Proximity Probe Housing Assembly
※Contact & Order
✉ Email: sales5@mooreplc.com
※Part Number Breakdown
B (Probe Cable Length):10 1.0 meter (39 inches)
C (Standoff Adapter Length):00 No standoff adapter
D (Probe Penetration):078 7.8 inches probe sleeve penetration
E (Fittings):04 One 3/4-14 NPT plug only
F (Mounting Thread):02 3/4-14 NPT
※General Information
Field
Value
Product ID
21000-34-10-00-078-04-02
Type Designation
21000 Proximity Probe Housing Assembly
Manufacturer
Bently Nevada
Catalog Description
Explosion-proof aluminum proximity probe housing for external mounting
Long Description
The 21000 all-metal housing assembly allows external access to proximity probes for gap adjustment or replacement without machine disassembly. Aluminum body with stainless steel sleeve. CSA certified explosion-proof for hazardous areas (Class I Div 1 & 2, Class II Div 1 & 2, Class III). Fully compliant with API 670 standard. This model includes a 3300 XL 8 mm probe with connector protector and hazardous area approvals.
Product Family
21000 / 24701 / 164818 Series
※Core Data
Parameter
Specification
Probe type
3300 XL 8 mm reverse mount
Cable length
1.0 meter (39 inches)
Connector protector
Yes (Option A=34)
Probe operating temp (3300 XL 8 mm)
−51°C to +177°C (−60°F to +351°F)
Probe storage temp
−51°C to +177°C
※Applications
Compressors:Shaft vibration & position in centrifugal/reciprocating compressors
Pumps:Bearing vibration & shaft position in large industrial pumps
Fans & blowers:Critical asset protection
Oil & gas:Offshore platforms, refineries, pipelines
Power generation:Steam/gas turbines, generators, hydro plants
Marine:Main propulsion shaft monitoring (ABS/DNV certified)
|
