Proximity Probe Housing Assembly

21000-28-05-00-031-01-02:

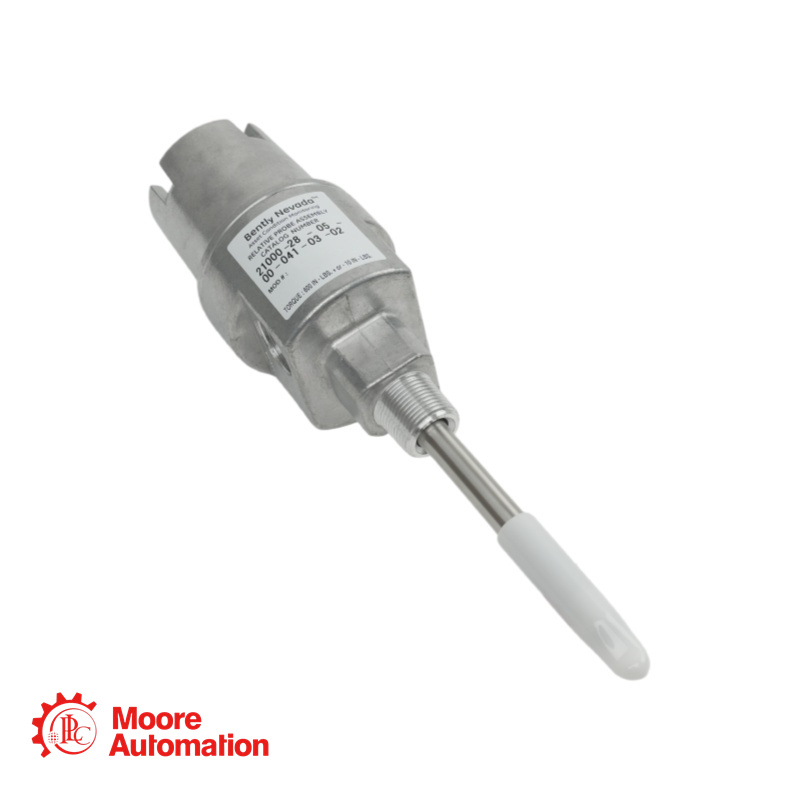

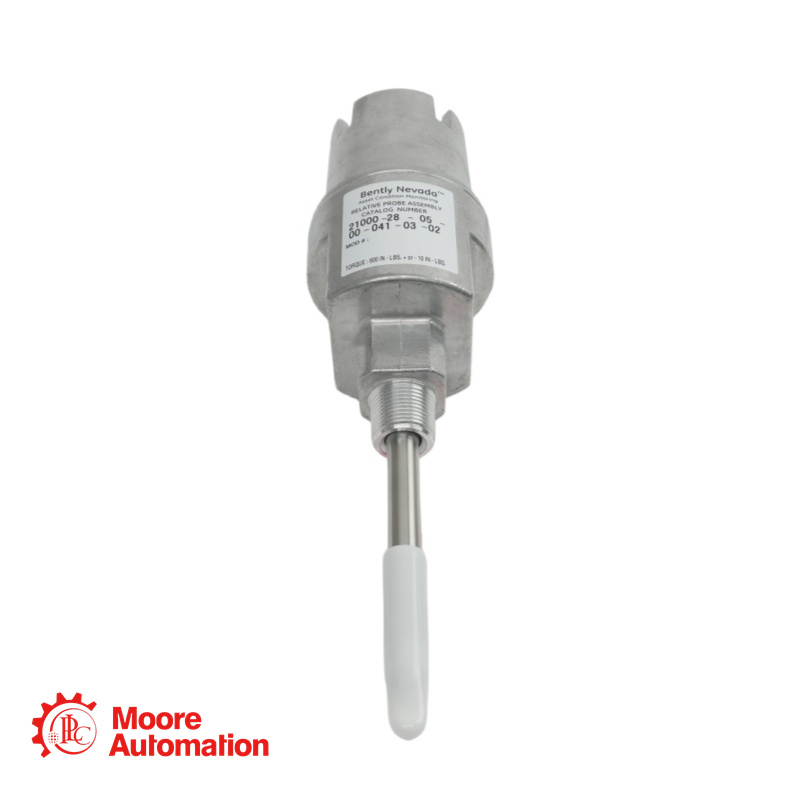

This is a 21000 Proximity Probe Housing Assembly manufactured by Bently Nevada (Baker Hughes). 21000-28-05-00-021-03-02assembly features a flush mount configuration (no standoff) with a 2.1-inch probe penetration length. It includes a 3/4-14 NPT mounting thread and Option 03 conduit fitting kit for field termination.

Parameters - 21000-28-05-00-031-01-02

Probe Type:3300 XL 8 mm (Reverse Mount)
Probe Cable Length:0.5 meter
Mounting Thread:3/4-14 NPT (Machined for 5-7 full threads for increased stiffness)
Housing Material:Aluminum (Body), 304 Stainless Steel (Sleeve)

Application Areas - 21000-28-05-00-021-03-02

Radial Vibration Monitoring: Steam turbines, gas turbines, centrifugal compressors, pumps, and generators.
Keyphasor (Phase Reference/Speed) Measurement
Industry Compliance & Environment: Machinery Protection Systems in the Oil & Gas, Petrochemical, and Power Generation industries.

Important Cautions - 21000-28-05-00-021-03-02

1. Low-Temperature Pressure Seal Risk:Exposing the 3300 XL probe to temperatures below -34°C (-30°F) may cause premature failure of its internal pressure seals.
2. Vibration Resonance (Sleeve Support): Probe penetration is 2.1 inches, which is well within the 12-inch (300 mm) safe unsupported length limit. No internal sleeve support is required.
3. Conduit Fitting Compatibility: The selected Option 03 includes a cable seal grip with grommets sized for cable ODs of 1/8" to 3/8".
