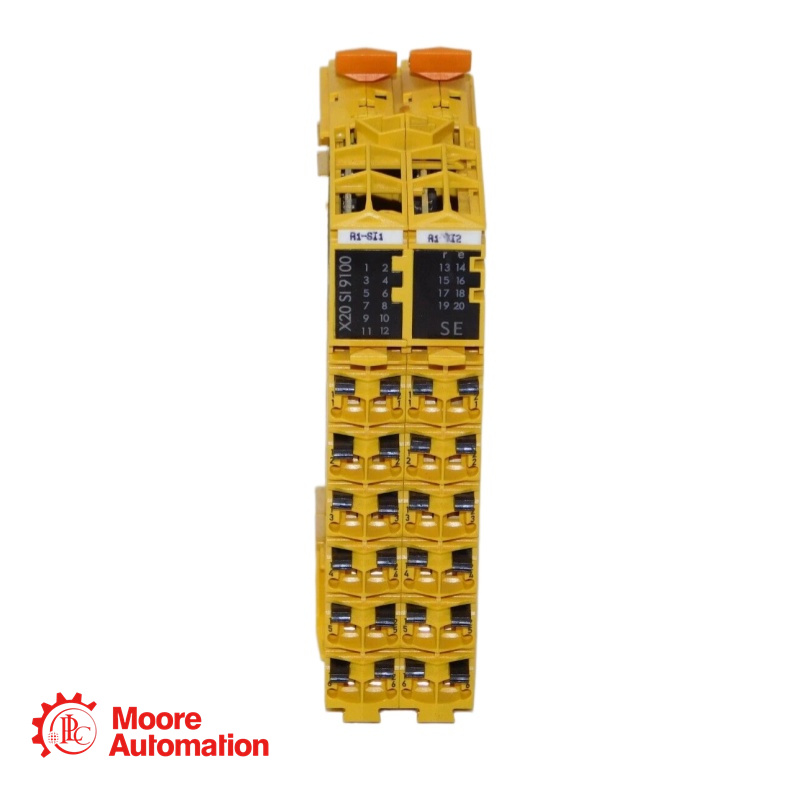

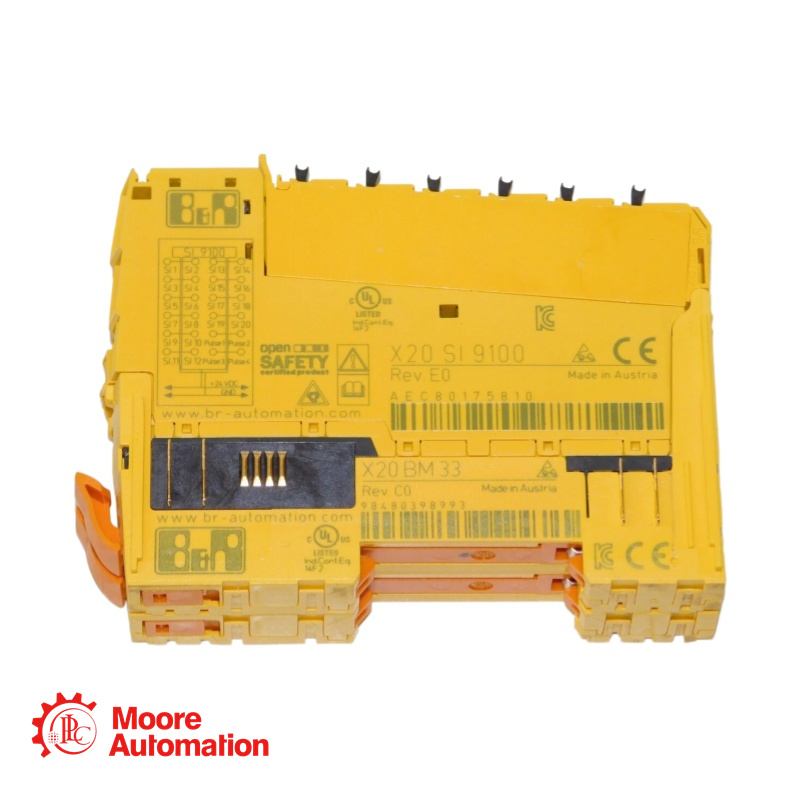

X20SI9100 Digital Input Module

This X20SI9100 module is equipped with 20 safe digital inputs. It is designed for a nominal voltage of 24 VDC.
The X20SI9100 module can be used to read various digital signals in safety-related applications up to PL e or SIL 3.
The X20SI9100 module is equipped with filters that are individually configurable for switch-on and switch-off behavior. The module also provides pulse signals for diagnosing the sensor line.
This X20SI9100 module is designed for X20 12-pin terminal blocks.

Specifications of X20SI9100

20 safe digital inputs
4 pulse outputs
Sink circuit
Software input filter configurable for each channel
Power consumption Bus Internal I/O: 0.4 W

Nominal voltage:24 VDC
