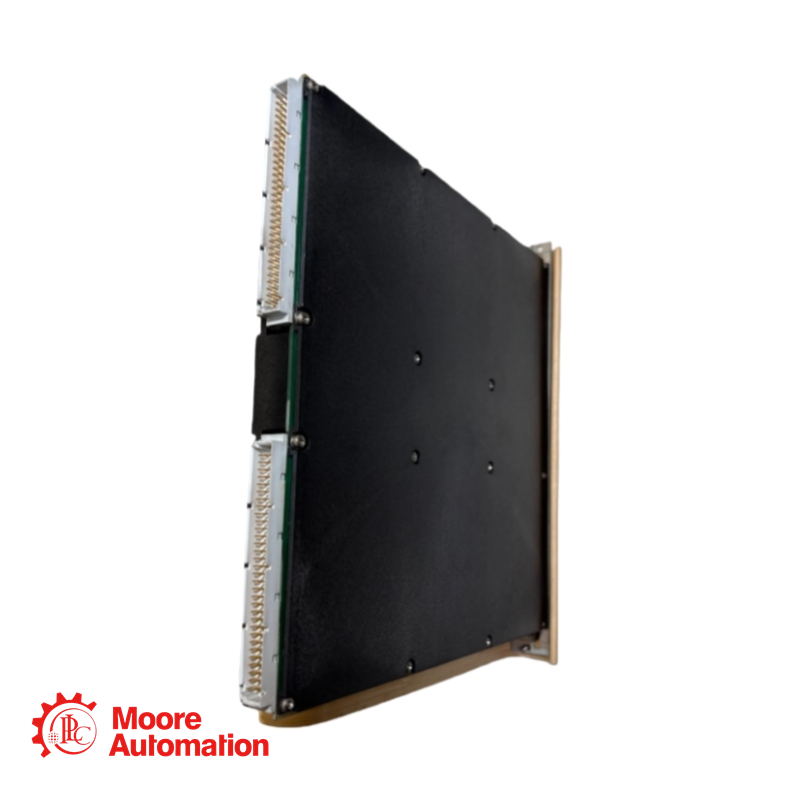

The Woodward 5464-654 is a Discrete Output Module designed as a key interface within the MicroNet control system for prime movers, such as gas turbines or diesel engines.
Marke :
WoodwardArtikelnummer :
5464-654Gewicht :
1.04kgAbmessungen :
2.6x24.6x26.2cmHerkunftsland :
USAHS-Code :
8537101190Beschreibung :
Discrete Output Module
Contact information
Sales Name: Frida
Phone/Whatsapp: +86 15359408275
Email: sales5@mooreplc.com
|
Technical Information |
|
|
Description |
Specification |
|
The Woodward 5464-654 is a Discrete Output Module designed as a key interface within the MicroNet control system for prime movers, such as gas turbines or diesel engines. It translates digital commands from the CPU into driver signals to control external Woodward Relay Modules, which in turn actuate critical field devices like fuel valves, ignition systems, or annunciators. Notably, this module requires an external 24 Vdc power source for the relay coils and connects to relay modules via daisy-chained low-density cables. A typical application is in a peaking power plant, where this module reliably sequences the startup and shutdown of fuel solenoids hundreds of times per year without requiring recalibration. Its front-panel handles and tool-less design allow for quick replacement during scheduled maintenance, minimizing turbine downtime. |
System Function: Generates non-isolated relay driver signals from CPU commands |
FAQ
Q1: Does this module need periodic calibration or adjustment?
No, calibration is not required. These modules are designed without internal potentiometers or user-adjustable components. If a replacement is needed, you can install a new module of the same part number directly, with no calibration steps.
Q2: What is the correct procedure for installing the module?
Installation is a straightforward process:
Slide the module into the dedicated card guides inside the control chassis.
Carefully press the module until its connectors fully seat with the motherboard.
Secure the module by tightening the two provided screws—one at the top and one at the bottom of the front panel.
Q3: How do I safely remove a module from the chassis?
Removal is designed for easy serviceability:
Locate the two ejection handles on the module's front panel (top and bottom).
Simultaneously push both handles outward. This action will partially eject the module, disconnecting its board from the motherboard connectors.
Once disengaged, you can gently pull the module free from the card guides.
Q4: What is the primary function of the Discrete Output module?
Its core function is to act as an interface. It receives digital command signals from the system's CPU and converts them into relay driver signals. These output signals are then sent to control the operation of relays in external Woodward Relay Modules.
Q5: Are the output signals from this module isolated?
No, the relay driver signals generated by this module are non-isolated. This design is intentional for compatibility with the associated Woodward Relay Modules.
Q6: If a module fails, is the repair process complex?
Not at all. Due to the non-adjustable, solid-state design, the standard repair action is a direct unit replacement. The lack of calibration ensures the new module will be operational immediately upon installation and securing.
