 /Vibro-Meter XMV16 620-001-001-116 VM600 Extended Vibration Monitoring Module

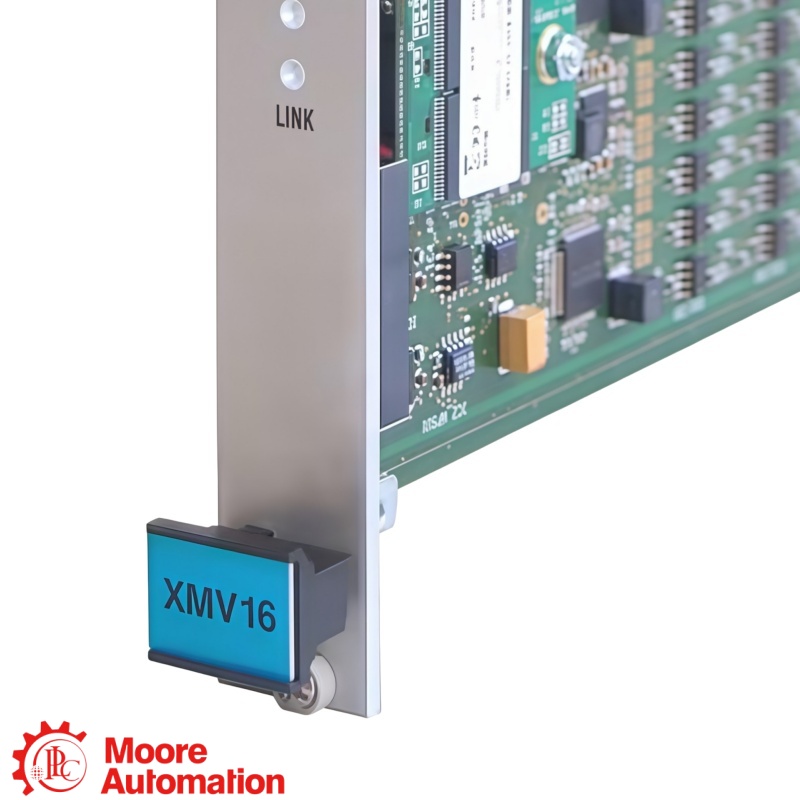

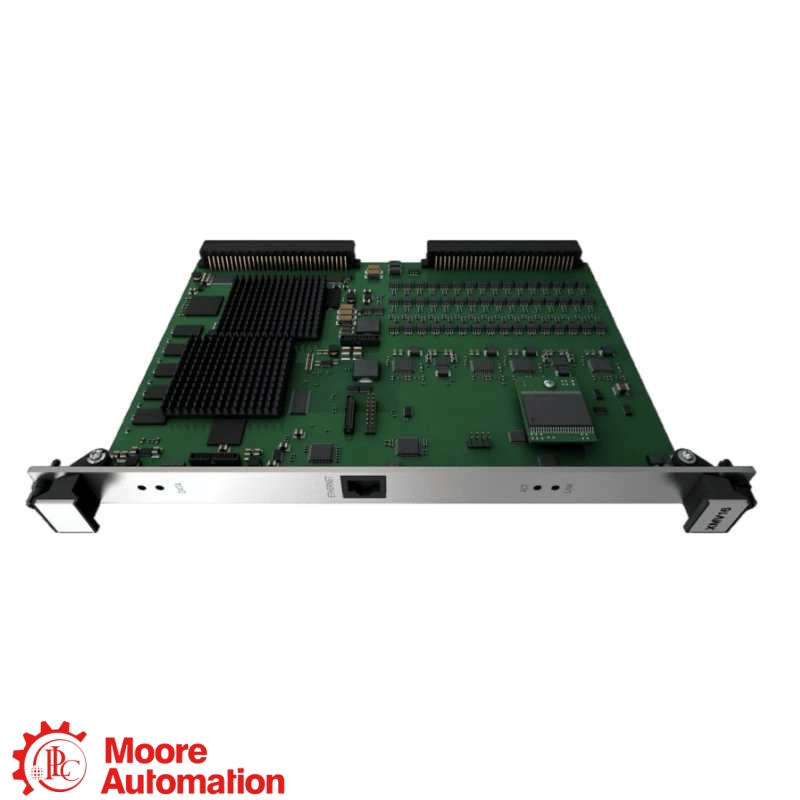

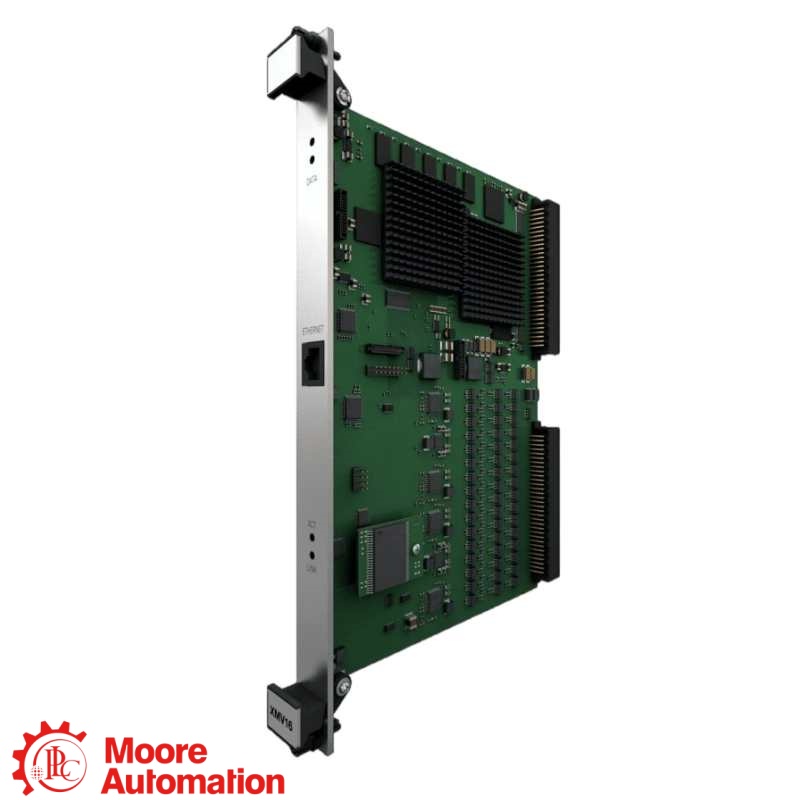

Vibro-Meter XMV16 620-001-001-116 VM600 Extended Vibration Monitoring Module
Vibro-Meter XMV16 620-001-001-116 VM600 Extended Vibration Monitoring Module
Vibro-Meter XMV16 620-001-001-116 VM600 Extended Vibration Monitoring Module

Vibro-Meter XMV16 620-001-001-116 VM600 Extended Vibration Monitoring Module

Vibro-Meter XMV16 620-001-001-116

XMV16 620-001-001-116

The XMV16 620-001-001-116 is a Meggitt Vibro-Meter VM600 extended vibration monitoring module used with a compatible XIO16T to provide external interface connections. Confirm the exact XMV16 and XIO16T versions, rear rack slot and installed wiring before replacement.

MODULE TYPEXMV16 extended vibration monitoring module for a compatible XIO16T
SYSTEM FAMILYVM600
COMPATIBILITYXIO16T / VM600
ORDERING NUMBER620-001-001-116
MANUFACTURERMeggitt vibro-meter
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Jetzt anfragen
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
VIBRO-METER ● XMV16 EXTENDED VIBRATION MONITORING MODULE
Vibro-Meter XMV16

XMV16 620-001-001-116

620-001-001-116 · STANDARD ORDERING NUMBER

24-bit A/D · up to 98 kHz sampling

MODULE ROLE
XMV16 620-001-001-116 is a Meggitt Vibro-Meter VM600 extended vibration monitoring module used as the front monitoring and processing module with a compatible XIO16T rear I/O module.
CONFIGURATION NOTE
For XMV16 620-001-001-116, confirm the complete PNR, XMV16 hardware version, matched XIO16T, VM600 / VM600Mk2 rack position, interface connections and VibroSight project documentation before replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Meggitt Vibro-Meter ↗
XMV16 EXTENDED VIBRATION MONITORING MODULE

Engineering data at a glance

Click “+” to expand more specifications.

MODULE TYPEVM600 extended vibration monitoring module
MODULE PAIRXIO16T
SYSTEMVM600
VERIFICATION16 dynamic channels · 4 tachometer channels
Official Meggitt Vibro-Meter family reference data.
Official product verificationVerify the complete ordering reference XMV16 620-001-001-116, including the PNR, XMV16/XIO16T hardware revision, ABE04x or ABE056 rack position, matched XIO16T and XMV16 hardware, communications and software configuration, against the installed system documentation before replacement.
GENERAL INFORMATION−
Brand / product lineMeggitt Vibro-Meter
Ordering numberXMV16 620-001-001-116
Product typeVM600 extended vibration monitoring module for a XIO16T rear I/O module
System familyXMV16 / XIO16T / VM600Mk2
Module roleFront monitoring and processing module used with a compatible XIO16T rear I/O module
Dynamic channels16
Tachometer channels4
A/D conversion24-bit
Dynamic inputs−30 to +30 V; −25 to +25 mA
AC bandwidth0.10 Hz to 38 kHz
Module and Rack Configuration＋
Rack compatibilityABE04x / ABE056 VM600 family racks
Ethernet interface1000BASE-T
Ethernet data rateUp to 1 Gbps
Signal Processing and Network＋
Dynamic channels16
Tachometer channels4
A/D conversion24-bit
Maximum sampling frequency98 kHz
Processed outputs per channelUp to 20
Ethernet and Rack Data＋
1000BASE-T Ethernet, up to 1 Gbps; maximum cable distance 100 m from XMV16 or 60 m from XIO16T; TCP/IP communication with VibroSight.
FAQ

Questions Buyers Ask Most

What is XMV16 620-001-001-116?＋

XMV16 620-001-001-116 is a VM600 extended vibration monitoring module with 16 dynamic channels, 4 tachometer channels and 24-bit A/D conversion; it operates with a compatible XIO16T rear I/O module.

Which rear I/O module is used with XMV16 620-001-001-116?＋

XMV16 620-001-001-116 uses a compatible XIO16T rear I/O module; confirm both module versions and the VM600 or VM600Mk2 rack.

What must the complete ordering code confirm for XMV16 620-001-001-116?＋

XMV16 620-001-001-116 requires the full ordering number, XMV16/XIO16T module pair, rack type and installed VibroSight configuration to be matched.

Which rack or system compatibility applies to XMV16 620-001-001-116?＋

XMV16 620-001-001-116 must be checked against an ABE04x or ABE056 rack, the paired XIO16T and the installed VibroSight project.

Which wiring or interfaces must be checked for XMV16 620-001-001-116?＋

XMV16 620-001-001-116 requires confirmation of dynamic and tachometer input wiring, rear XIO16T connectors, Ethernet link and channel configuration.

Can XMV16 620-001-001-116 be replaced by a similar-looking card?＋

XMV16 620-001-001-116 should not be substituted until the ordering number, XIO16T pairing, rack compatibility, Ethernet configuration and VibroSight project are verified.

What information should be supplied when ordering XMV16 620-001-001-116?＋

XMV16 620-001-001-116 should be ordered with the full ordering number, nameplate photos, XIO16T pairing, rack position, channel configuration and VibroSight version.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete ordering code, installed rack, module versions, communications wiring and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Documentation and Reference Check for
XMV16 620-001-001-116

The complete XMV16 620-001-001-116 reference must be matched to the installed XIO16T / XMV16 card pair and project documentation.

Meggitt Vibro-Meter XMV16

Meggitt DS 660-020-010-213A identifies XMV16 / XIO16T as the extended vibration monitoring module pair for VM600Mk2 / VM600.

REQUEST EXACT DOCUMENTATION

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Product identity is based on the supplied complete reference and publicly available Meggitt family documentation; verify the exact XMV16 revision before replacement.

XMV16 SYSTEM RELATIONSHIP FAMILY

How XMV16 620-001-001-116 Fits the Vibro-Meter VM600 System

Meggitt Vibro-Meter is the product line; XMV16 is the front monitoring module used with a compatible XIO16T rear I/O module; and XMV16 620-001-001-116 is the complete supplied reference for installed-system matching.

Meggitt Vibro-Meter · PRODUCT LINE
XIO16T / XMV16 condition-monitoring card pairVM600 condition-monitoring system · MODULE RELATIONSHIP
MODULE MODEL

XMV16 · 620-001-001-116

The XMV16 620-001-001-116 provides external interface connections for a compatible XIO16T in a configured VM600 rack.

SYSTEM FAMILY

XIO16T · XMV16 · VM600 MPSx

The XMV16 is used with a compatible XIO16T. Match the VM600 / VM600Mk2 rack, XIO16T/XMV16 versions, interface connections and project documentation.

MODULE CHARACTERISTICS

Exact XMV16 PNR · Hardware revision · XIO16T pairing

The XMV16 provides external connections for the matched XIO16T; exact port availability depends on the XMV16 version. Confirm the rack slots, interfaces and software configuration.

Compatibility check: verify the complete 620-001-001-116 PNR, XMV16 hardware version, matched XIO16T, VM600 / VM600Mk2 rack position, interface connections and project documentation before replacement.
APPLICATION AREAS

Application mind map for XMV16 620-001-001-116

Condition Monitoring InterfaceRear input/output interface for a compatible XIO16T card
Legacy VM600 Card PairVerify XMV16 / XIO16T pairing, rack compatibility, wiring and project documentation
APPLICATION CENTERXMV16 620-001-001-116VM600 extended vibration monitoring module for a compatible XIO16T
Vibration Monitoring ChannelsInput/output connections are provided through the matched XIO16T / XMV16 hardware configuration
Replacement VerificationConfirm the 620-001-001-116 PNR, XMV16 hardware version, matched XIO16T, VM600 / VM600Mk2 rack position and interface connections
