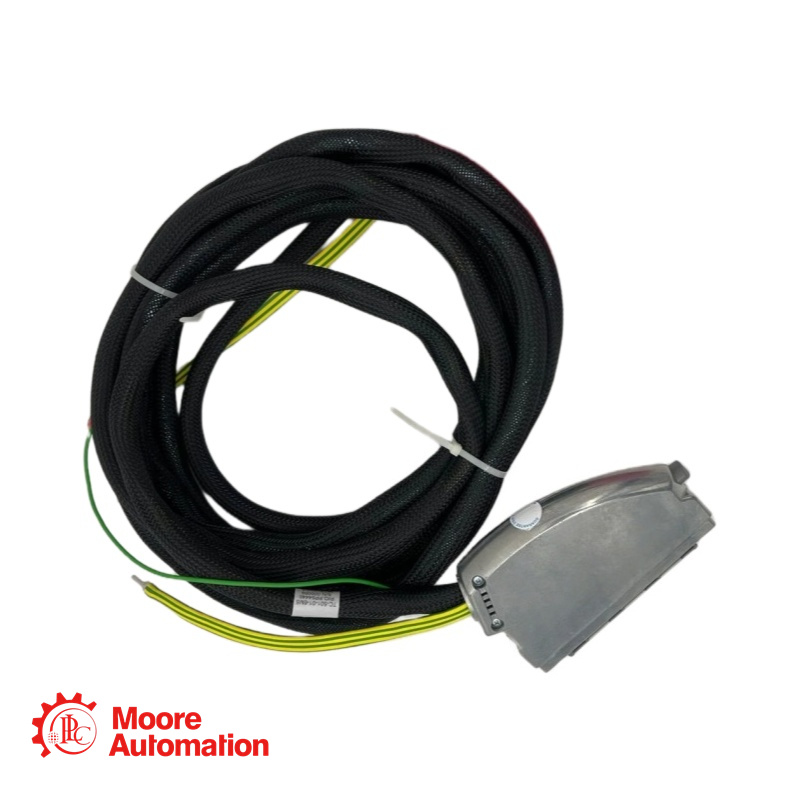

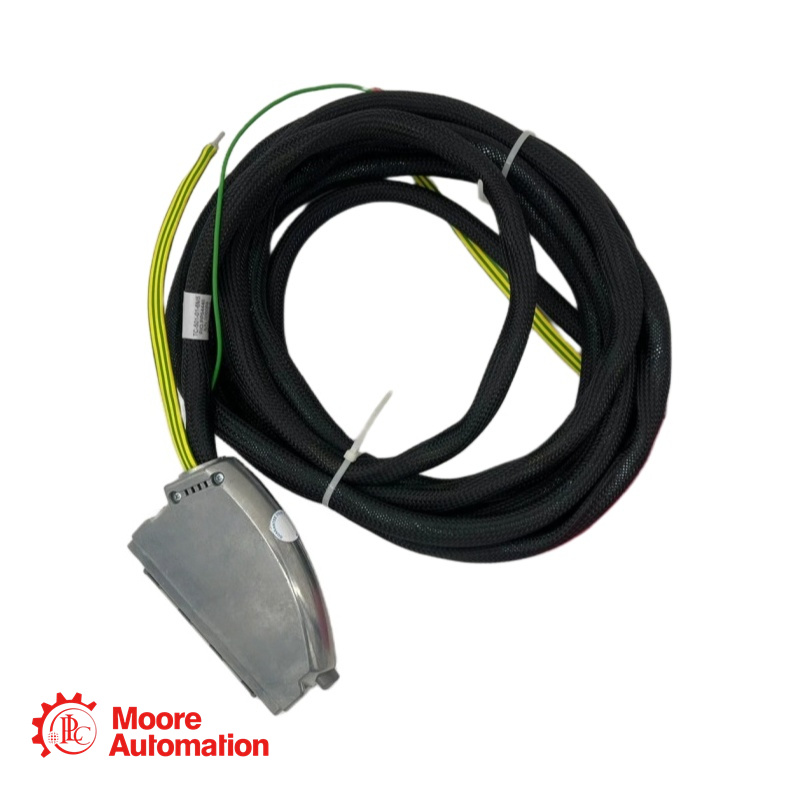

TC-505-01-6M0 ICS Triplex - I/O Companion Slot Cable

6.0-meter internal I/O SmartSlot cable for connecting a Trusted TMR digital or analogue output module to a Field Termination Assembly (FTA).

  • Marke :

    ICS Triplex

  • Artikelnummer :

    TC-505-01-6M0

  • Gewicht :

    1.14 kg

  • Abmessungen :

    35x35x10cm

  • Herkunftsland :

    USA

  • HS-Code :

    8537101190

  • Beschreibung :

    I/O Companion Slot Cable
Jetzt anfragen

Click Here To Get Price: sales5@mooreplc.com , +86 15359408275 (Frida Zhang)



TC-505-01-6M0 Companion Slot Cable

6.0-meter internal I/O SmartSlot cable for connecting a Trusted TMR digital or analogue output module to a Field Termination Assembly (FTA). Designed for remote slot assignment in a hot-swap architecture within Trusted SIS environments.


TC-505-01-6M0 Specifications

Part Number:TC-505-01-6M0
Series:Trusted I/O SmartSlot Cables
Reference Manual:ICSTT-RM313 (PD-TC500)
Cable Length:6.0 meters (19.7 ft)
Channels Supported:40 Channels (TMR)
Application:SmartSlot Internal Output, Module to FTA
Module Type:Digital 24/120 Vdc Output, Analogue Output
Hot-Swap Compatible:Yes (Remote Slot Assignment via SmartSlot)
Cable Construction:Multi-core with overall screen, integral field power wiring
Maximum Recommended Length 15 m (per Trusted I/O cable guidelines)


TC-505-01-6M0 FAQ

Q: Does this cable carry field power?
A: Yes, like the Companion Slot output cables, the TC-505 integrates wiring for both output signals and field power distribution. This includes connections for field power supply, field power return, and 0 V reference necessary for the module to accurately measure output voltage.

Q: Can I use this cable if the FTA is located in a different, remote cabinet?
A: No. The TC-505 is designated as an internal cable.

Q: What does "-01" mean in the part number?
A: The standard Trusted I/O cable insulation suffixes are "-02" (Low Smoke Zero Halogen, flame retardant to IEC 60332-3 Cat A) and "-03" (UL Certified).
