Marke :
ABBArtikelnummer :
SYN 6302 3BHE056302R0203Gewicht :
7 kgAbmessungen :
44.3x15.5x20.2cmHerkunftsland :
SwedenHS-Code :
8537101190Beschreibung :

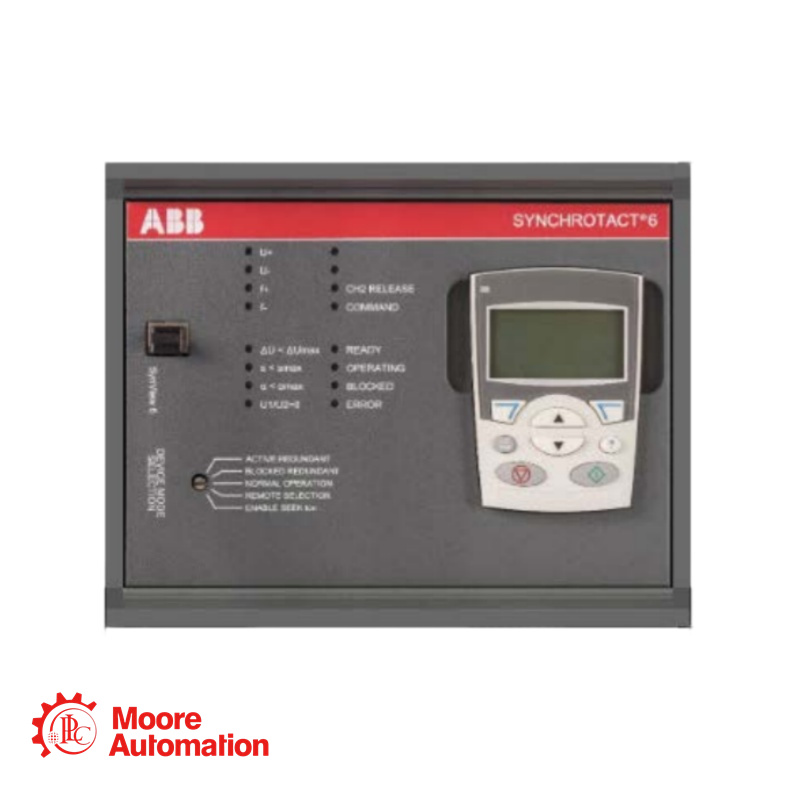

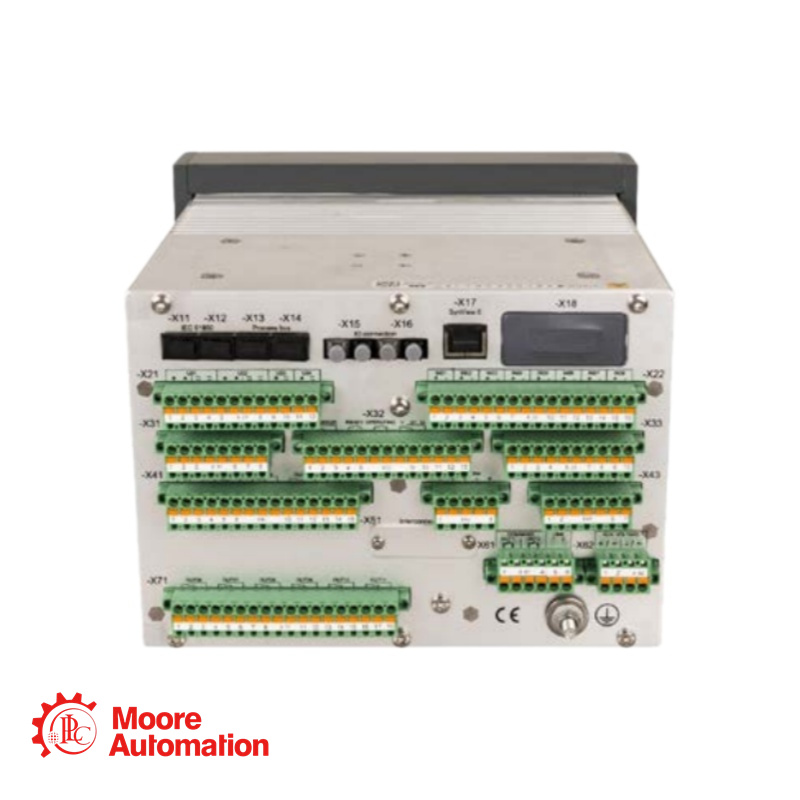

Dual-Channel Synchronizing Device
※Contact & Order
✉ Email: sales5@mooreplc.com
※Executive Summary
All four output channels (2 devices × 2 channels) are normally wired in series, enabling SIL2-level safety while maintaining maximum plant availability via safe bypass switching.
Ideal for critical generator paralleling, pumped storage plants, and utility-grade power distribution where neither incorrect closure nor downtime is tolerated.
※General Information
Field
Value
Product ID
3BHE056302R0203
Type Designation
SYN 6302
Manufacturer
ABB Switzerland Ltd – Synchronizing Equipment
Catalog Description
Redundant automatic dual-channel synchronizing device
Long Description
Two independent dual-channel synchronizers in one housing; series connected output contacts (4 channels) for SIL2 safety; bypass allows hot maintenance.
Product Family
SYNCHROTACT 6
HS Code
853890 (Parts for electrical apparatus)
Country of Origin
Switzerland
Condition
New original / Factory sealed
Lifecycle Phase
Active (full service & support)
|
※Core Data |
|
|
Parameter |
Specification |
|
Redundancy level |
2 × dual channel (total 4 independent measuring/comparison paths) |
|
Parameter sets |
2 or 20 (option z=3) |
|
Bypass switching |
Per device, local or remote |
|
Auxiliary voltage (nominal) |
24–250 V DC / 100–230 V AC |
|
Permissible range (DC) |
19.2–300 V DC |
|
Permissible range (AC) |
75–300 V AC |
|
Measuring inputs U1, U2 |
50–130 V AC (0–130% Un) |
|
Nominal frequency |
16.7, 50, 60 Hz (10–100 Hz range) |
|
Binary inputs (nominal) |
24–125 V DC / 100–125 V AC |
|
Paralleling relays |
10 A / 250 V AC/DC |
|
Switching power ON |
3000 VA / 3000 W |
|
Switching power OFF (resistive) |
3000 VA / 85 W |
|
Adjusting/signal relays |
4 A (AC/DC), 1000 VA / 75 W |
|
Operating temperature |
-25°C to +55°C (full accuracy) |
|
Storage / transport |
-40°C to +85°C |
※Applications
Pumped storage:Synchronizing in both pump and turbine modes
Industrial cogeneration:Paralleling with public utility under varying load
Transmission & distribution:Line paralleling & ring bus synchronization
Offshore/marine:Redundant synchronizing for critical vessel power
|
