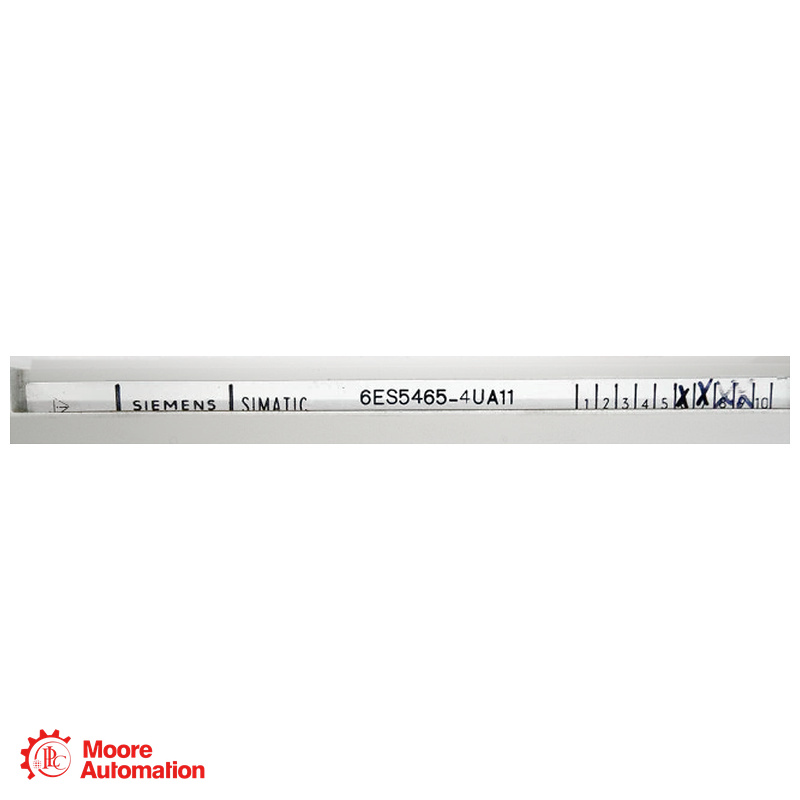

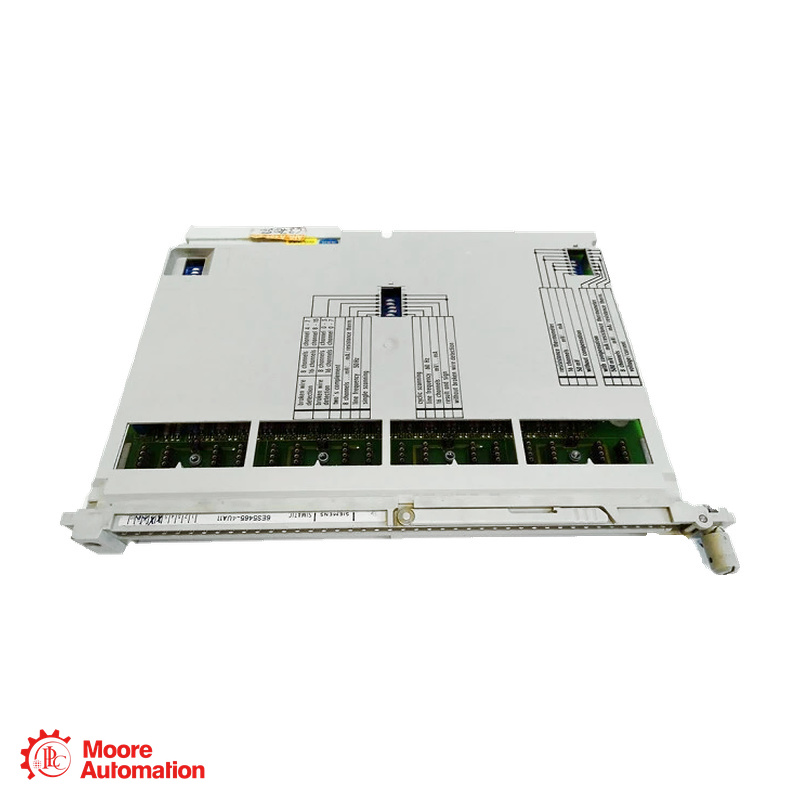

 /Siemens 6ES5465-4UA11 SIMATIC S5 Analog Input 465 Module
Siemens 6ES5465-4UA11 SIMATIC S5 Analog Input 465 Module
Siemens 6ES5465-4UA11 SIMATIC S5 Analog Input 465 Module
Siemens 6ES5465-4UA11 SIMATIC S5 Analog Input 465 Module

Siemens 6ES5465-4UA11 SIMATIC S5 Analog Input 465 Module

Siemens SIMATIC S5 · Analog Input 465

6ES5465-4UA11

The 6ES5465-4UA11 is a Siemens SIMATIC S5 Analog Input 465 module. The Siemens U Periphery manual specifies 16 voltage/current inputs or eight Pt100 resistance inputs, selected with range submodules and module mode switches.

PRODUCT TYPEANALOG INPUT
INPUT SIGNALVoltage / current / Pt100
INPUT CHANNELS16 I/V OR 8 Pt100
RANGE SUBMODULES4 × 4 CHANNELS
MANUFACTURERSiemens
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Jetzt anfragen
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
SIEMENS ● SIMATIC S5 ANALOG INPUT 465
Siemens SIMATIC S5

6ES5465-4UA11

Analog Input 465 · 16 voltage/current or 8 Pt100 inputs

The Siemens U Periphery manual documents selectable voltage/current or Pt100 input operation through range submodules and mode switches.

PRODUCT ROLE
6ES5465-4UA11 is a Siemens SIMATIC S5 Analog Input 465 module with 16 voltage/current inputs or eight Pt100 inputs. Siemens documents the exact article in its U Periphery manual.
TECHNICAL CONTEXT
For 6ES5465-4UA11, Siemens specifies four range submodules for groups of four inputs. Mode switches select the 8-channel or 16-channel operating mode and the measured-value format.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Contact Frida for documentation ↗
SIMATIC S5 Input Module

Engineering data at a glance

Click “+” to expand more specifications.

PRODUCT TYPEANALOG INPUT
INPUT SIGNALVoltage / current / Pt100
INPUT CHANNELS16 I/V OR 8 Pt100
RANGE SUBMODULES4 × 4 CHANNELS
Siemens U Periphery manual, Analog Input Module 6ES5 465-4UA11.
SYSTEM COMPATIBILITY6ES5465-4UA11 is documented in the Siemens U Periphery manual for SIMATIC S5 process-interface installations. Match the rack, front connector, range submodules and operating mode before use.
General Information −
BrandSiemens
Part number6ES5465-4UA11
Product typeAnalog input module
Product familySIMATIC S5 · AI 465
Input channels16 voltage/current or 8 Pt100
Range submodulesFour; four inputs per submodule
Voltage ranges±50/±500 mV; ±1/±5/±10 V
Current ranges±20 mA; 4–20 mA
Measured-value format13-bit two’s complement or 12 bits + sign
Electrical isolationNo
Range Submodules ＋
Range-submodule groupsFour groups, four inputs each
Sensor modesVoltage, current or Pt100
Operating modeSelected by mode switches I and II
Function & Configuration ＋
Voltage/current inputs16
Pt100 resistance inputs8
Measurement principleIntegrating, dual-slope conversion
Digital supply5 V ±5% via system bus
Analog load voltage24 V DC
Module enableF+/F−, 24 V DC
Integration time20 ms at 50 Hz
Open-circuit signalingConfigurable for selected mV/Pt100 ranges
Source: Siemens U Periphery manual, Analog Input Module 6ES5 465-4UA11, section 5.4.
FAQ

Questions Buyers Ask Most

What does 6ES5465-4UA11 do?＋

6ES5465-4UA11 is a SIMATIC S5 Analog Input 465 module for process signals. The Siemens U Periphery manual specifies 16 voltage/current channels or eight Pt100 resistance channels, depending on the selected operating mode and range submodules.

How many inputs can 6ES5465-4UA11 use?＋

6ES5465-4UA11 provides 16 inputs for voltage or current measurement, or eight inputs for Pt100 resistance thermometers. The configured sensor type and channel mode must agree with the installed range submodules.

Which signal ranges are documented for 6ES5465-4UA11?＋

6ES5465-4UA11 supports Siemens range submodules for ±50/±500 mV, ±1/±5/±10 V, ±20 mA, 4–20 mA and Pt100 measurement. The selected submodule determines the actual range of each four-input group.

How is Pt100 measurement configured on 6ES5465-4UA11?＋

6ES5465-4UA11 can operate with eight Pt100 resistance inputs when its mode switches and appropriate range submodules are set for resistance thermometers. Follow the Siemens U Periphery wiring and mode-selection tables for that configuration.

How are the range submodules arranged on 6ES5465-4UA11?＋

6ES5465-4UA11 accepts four range submodules, each associated with four inputs. Siemens documents different submodules for voltage, current and Pt100 ranges, so specify the installed submodule set when checking a configuration.

Is 6ES5465-4UA11 electrically isolated?＋

6ES5465-4UA11 is listed by Siemens as a non-isolated Analog Input 465 module. The manual also documents mode-switch settings, 24 V module-enable inputs and front-connector assignments that should be checked during commissioning.

What should be checked before ordering 6ES5465-4UA11?＋

6ES5465-4UA11 should be ordered by its complete article number. Provide the installed SIMATIC S5 station, desired voltage/current or Pt100 mode, range-submodule references, front-connector arrangement and quantity to confirm the needed configuration.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the full Siemens article number, installed S5 station, voltage/current or Pt100 measurement mode, range-submodule references and quantity for configuration checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
6ES5465-4UA11

Product information and support route for the exact Siemens article number 6ES5465-4UA11.

Official manufacturer manual

The official Siemens U Periphery manual identifies 6ES5465-4UA11 as an Analog Input 465 module with 16 voltage/current inputs or eight Pt100 inputs, depending on configuration.

OPEN OFFICIAL MANUAL PDF

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Siemens U Periphery manual: Analog Input Module 6ES5 465-4UA11, section 5.4, technical data pages 5-14 to 5-15.

MODEL IDENTIFICATION

Exact Siemens reference for 6ES5465-4UA11

6ES5465-4UA11 is the complete Siemens article number for a SIMATIC S5 Analog Input 465 module with 16 voltage/current inputs or eight Pt100 resistance inputs.

Siemens · BRAND
Siemens SIMATIC S5Analog Input 465 Module
VERIFIED MODEL SEGMENT

465

Siemens identifies 465 as the Analog Input module family in its U Periphery manual. Use the complete article number 6ES5465-4UA11 to identify this exact variant and its required range-submodule configuration.

Product identification: Siemens SIMATIC S5 Analog Input 465 module with 16 voltage/current or eight Pt100 inputs, article number 6ES5465-4UA11.
APPLICATION AREAS

Application functions for 6ES5465-4UA11

Pt100 Resistance MeasurementEight Pt100 inputs in resistance mode
SIMATIC S5 Process InterfaceDocumented in the Siemens U Periphery manual
INDUSTRIAL AUTOMATION APPLICATIONS 6ES5465-4UA11 SIMATIC S5 · Analog Input 465
Voltage & Current MeasurementUp to 16 inputs with matching range submodules
Range Submodule SelectionFour submodules serve groups of four inputs
