/ProSoft RLX2-IHW 802.11abg Industrial Hotspot

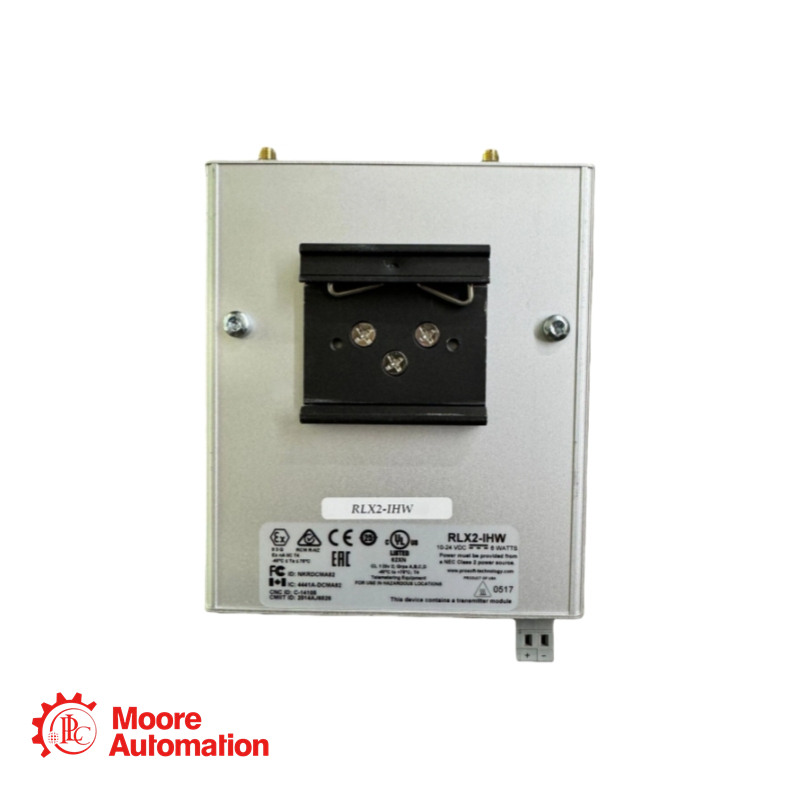

ProSoft RLX2-IHW 802.11abg Industrial Hotspot
ProSoft RLX2-IHW 802.11abg Industrial Hotspot
ProSoft RLX2-IHW 802.11abg Industrial Hotspot

ProSoft RLX2-IHW 802.11abg Industrial Hotspot


  • Marke :

    ProSoft
  • Artikelnummer :

    RLX2-IHW
  • Gewicht :

    479 g
  • Abmessungen :

    14.8 x 11.8 x 3.8 cm
  • Herkunftsland :

    USA
  • HS-Code :

    8537101190
  • Beschreibung :

    802.11abg Industrial Hotspot

Product Datasheet

Maximum Range: Up to 5 mi. / 8km
RF Data Rate: Up to 54 Mbps
Wireless Standards: IEEE 802.11a, 802.11b, 802.11g, 802.11i
Frequency Bands: 2.4 GHz band (802.11b/g) and 5 GHz band (802.11a)
Transmit Power (Programmable): 2.4 GHz: Up to 100 mW (20 dBm);    5 GHz: Up to 64 mW (18 dBm) (varies by country)
Receiver Sensitivity (Typical): -90 dBm @ 1 Mbps;    -85 dBm @ 11 Mbps;    -82 dBm @ 24 Mbps;    -75 dBm @ 54 Mbps
Security Features: WPA2 - 802.11i with 128-bit AES-CCM, Legacy WPA TKIP, WEP support, MAC ID filter, Admin password, RADIUS authentication, VLAN support
Key Networking Features: Quality of Service (QoS), IGMP Snooping & Packet Filtering, Ultra-Fast Roaming (under 10ms), SNMP support, Serial tunneling (Modbus, DNP3, etc.)
Configuration Software: Included IH Browser software for configuration, monitoring, and firmware updates;    Optional OPC Diagnostic Server software
Ethernet Ports: (1) 10/100/1000 Base-T, RJ45 connector
Serial Port: (1) DB9 female for serial tunneling & encapsulation
Antenna Ports: (2) RP-SMA connectors (1 trans/rec, 1 rec only)
Power Supply: External Power: 10 to 24 VDC;    PoE (Power over Ethernet): 802.3af Compliant
Peak Power Consumption: < 6W
Operating Temperature: -40°C to +75°C (-40°F to +167°F)
Humidity: Up to 100% RH, with no condensation
Shock Rating: IEC 60068 2-27 (20g, 3-Axis)
Vibration Rating: IEC 60068 2-6 (5g, 10Hz to 150Hz)
Dimensions: 14.8 x 11.8 x 3.8 cm (H x W x D) / 5.82 x 4.64 x 1.48 in (H x W x D)
Weight: 1.06 lbs (479 g)


Product Profile

The ProSoft Technology 802.11abg Industrial Hotspot (RLX2-IHW) is a cost-effective industrial-grade wireless Ethernet solution for applications up to 5 mi. / 8km.  The RLX2-IHW has an RF data rate up to 54 Mbps, using the IEEE 802.11b/g (2.4 GHz band) and 802.11a (5 GHz band) standards.
The included IH Browser configuration and monitoring software allows the user to view network topology, assign IP addresses, monitor network diagnostics, and update radio firmware.  The optional OPC Diagnostic Server software is ideal for managing long-range wireless SCADA networks.
