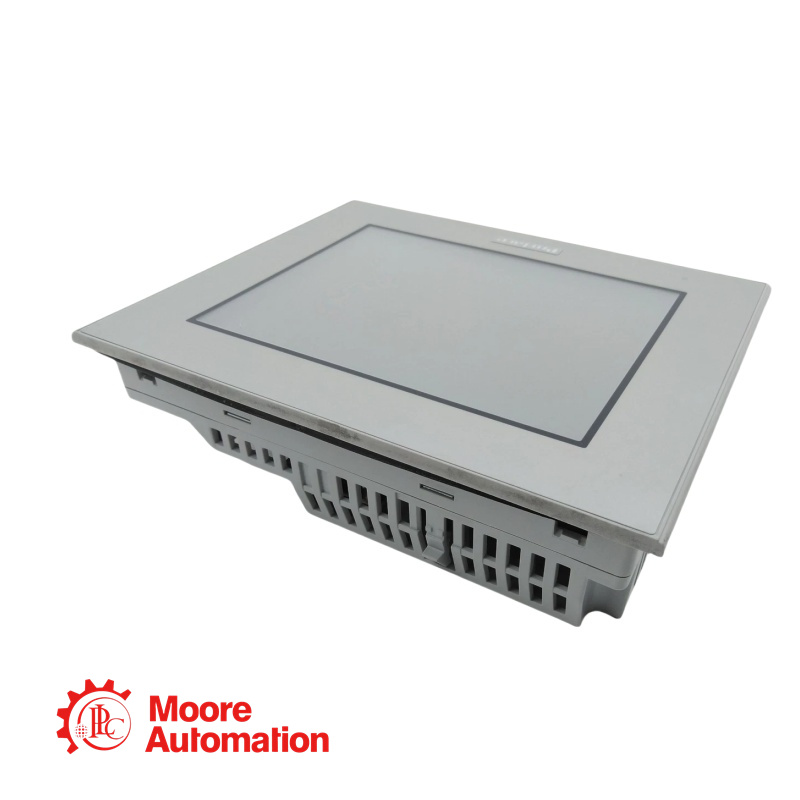

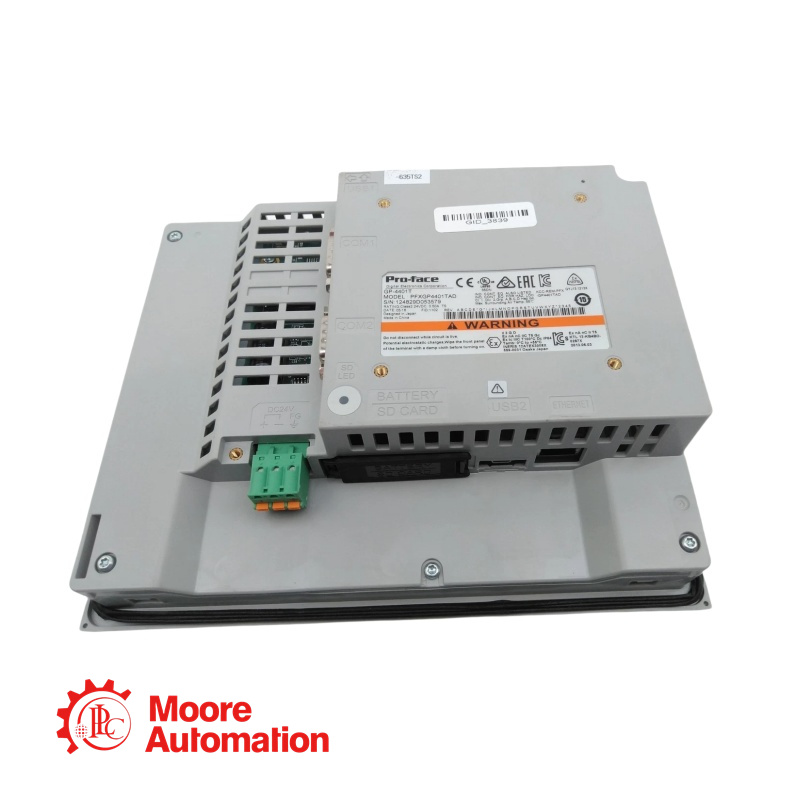

Proface GP-4401T 7.5 Type Programmable Display

The Proface GP-4401T 7.5 Type Programmable Display is a versatile and high-performance human-machine interface (HMI) designed to meet the needs of various industrial automation applications. This model provides operators with a user-friendly display for controlling and monitoring machines and processes. The GP-4401T features a 7.5-inch TFT color touchscreen with high-resolution graphics, ensuring clear visibility even in challenging environments.

Display screen type: TFT true color LCD
Display screen size: 7.5 inches
Resolution: 640 × 480 pixels (VGA)
Effective display area: W153.7mm × H115.8mm
Display color: 65536 colors (no flicker)/16384 colors (flicker)
Input voltage: DC 24V
Rated voltage: DC 19.2V to 28.8V
Allowable power loss: less than 5ms
Power consumption: below 12W
Instantaneous current: below 30A
Insulation strength: AC1000V, 20mA less than 1 minute (between power terminal and FG terminal)
Insulation resistance: DC500V, above 10M Ω (between power terminal and FG terminal)
Working temperature: 0 ℃ to 55 ℃
Storage temperature: -20 ℃ to+60 ℃
Working humidity: 10% RH to 90% RH (no condensation, wet bulb thermometer temperature: below 39 ℃)
Storage humidity: 10% RH to 90% RH (no condensation, wet bulb thermometer temperature: below 39 ℃)
Dust prevention: below 0.1mg/m ³ (insulation level)
