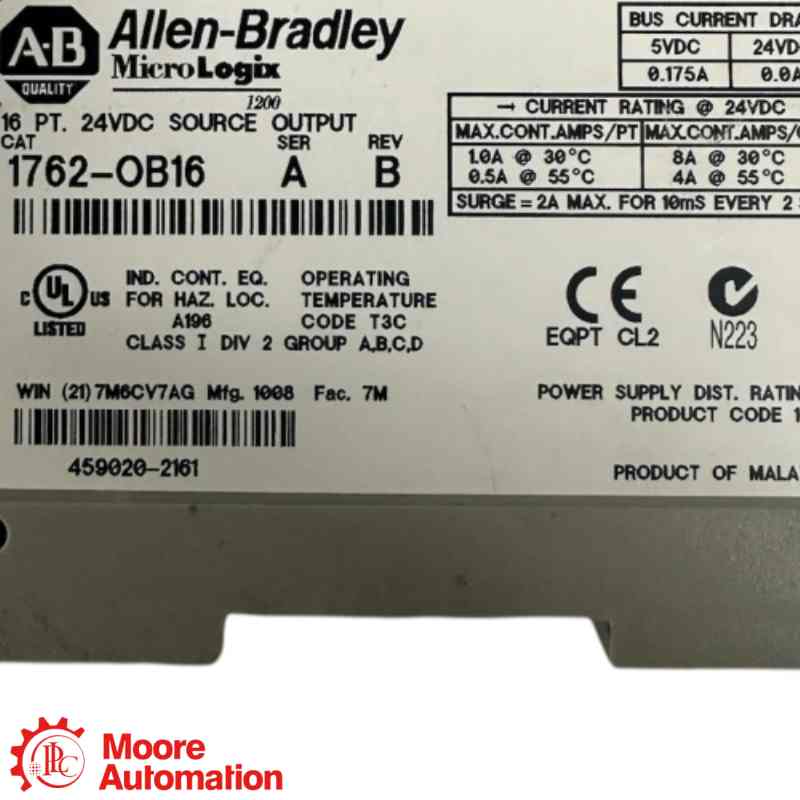

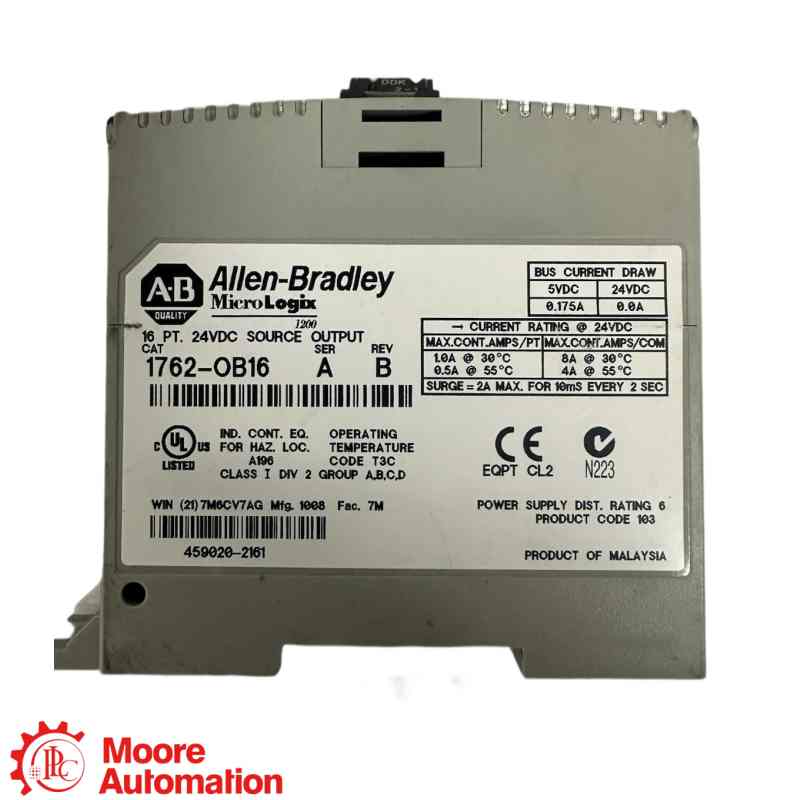

The 1762-OB16 is a 16-point solid-state 24 V DC source output expansion module with one common and a 20.4…26.4 V DC operating range.
Marke :
PLCArtikelnummer :
1762-OB16Gewicht :
Approx. 235 g (8.29 oz)Abmessungen :
90 × 40 × 87 mm without mounting tabsHerkunftsland :
USAHS-Code :
16-Point 24 V DC Source Output ModuleBeschreibung :
The 1762-OB16 is a 16-point solid-state 24 V DC source output expansion module with one common and a 20.4…26.4 V DC operating range.Click “+” to expand more specifications.
Source: Official publication 1762-IN011 covers 1762-OB16. Verify the nameplate, electrical configuration, wiring, firmware and saved project before replacement.
1762-OB16 provides 16 solid-state sourcing outputs for switching 24 V DC field loads in a compatible 1762 expansion I/O system.

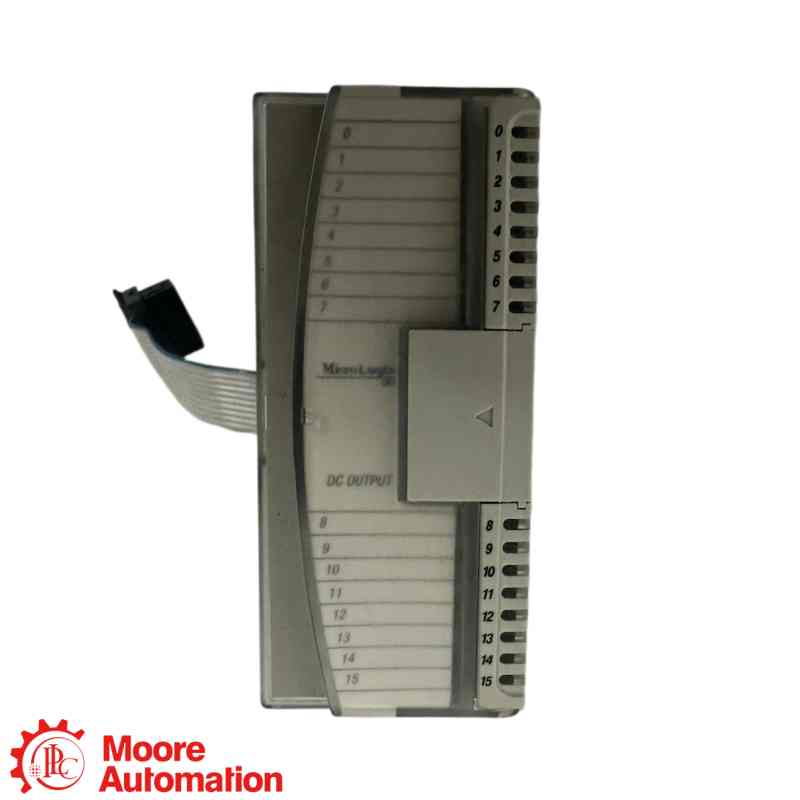

1762-OB16 has 16 output points, numbered 0 through 15, sharing one common; the output image word maps directly to those points.
1762-OB16 operates from 20.4 to 26.4 V DC and supports up to 0.5 A per point at 55 °C, subject to the published per-common and module limits.
1762-OB16 expansion I/O must be mounted horizontally with the specified ventilation clearance and connected through the expansion bus after all modules are secured.
1762-OB16 cannot be replaced solely by matching the channel count because the sourcing solid-state output type, voltage category, current limits, wiring and project addressing must also match.
A 1762-OB16 inquiry should include nameplate photographs, quantity, controller model, module position, load voltage and current, terminal wiring and the saved project configuration.
Official manufacturer-reference information for the 1762-OB16 16-Point 24 V DC Source Output Module.
Official publication 1762-IN011 covers identification, installation, wiring, configuration and operating requirements for this catalog variant.
OFFICIAL MANUALSend the complete model, quantity, nameplate photos and your technical or purchasing question.
Technical statements on this page are limited to official publication 1762-IN011. No third-party product sources were used.
PLC is the product-family reference. 1762-OB16 must be matched to the complete nameplate, electrical configuration, I/O or processor arrangement, firmware, wiring and saved project.
Record the installed controller or base, expansion I/O, network design, firmware and adjacent equipment.
Photograph the terminal wiring, load supply, common and expansion-bus connection before removing the module.
Verify the 20.4…26.4 V DC operating range, point and common current limits, load type and grounding before energizing.
Do not select a substitute until output type, voltage, current, common wiring, slot addressing and horizontal mounting are confirmed.
Match 1762-OB16 and its complete suffix to the full nameplate and installed-system documentation.
Create a recoverable copy of the controller project and record firmware, communication and I/O parameters before removal.
Record the network or serial protocol, addresses, cables, supply and I/O wiring used by the installed application.
Confirm catalog number, firmware, I/O or processor configuration, ports, power, wiring and project compatibility before commissioning.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
