PLC 1756-PSCA2 Adapter Module

1756-PSCA2

Overview

Specifications

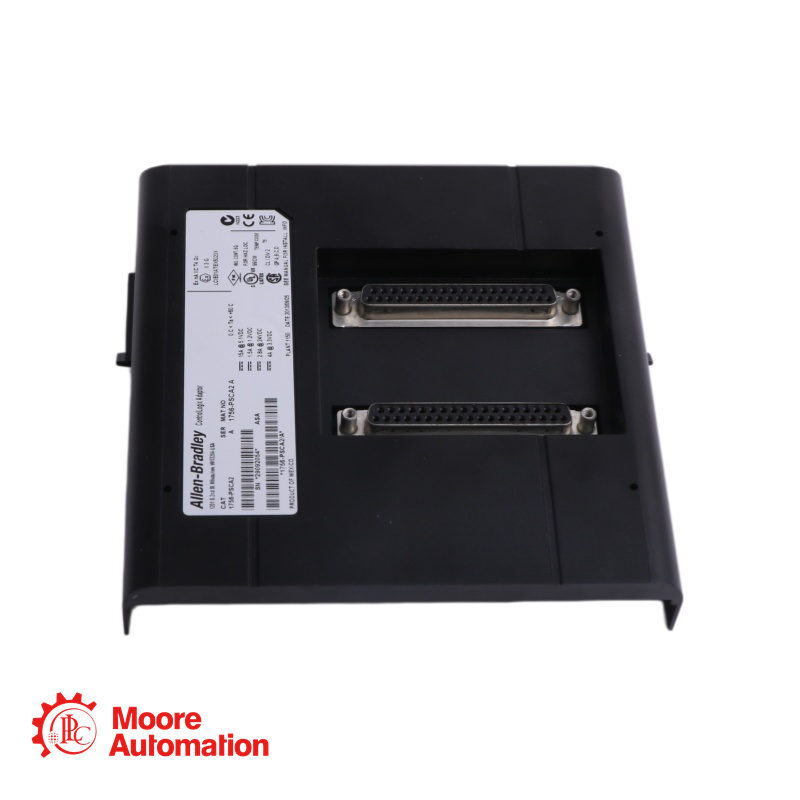

The 1756-PSCA2 chassis adapter module is a passive device designed to funnel power from one or two redundant power supplies to the single power connector on the chassis (Series B only) backplane.

Product Type:Redundant Power Supply Chassis Adapter
Output Current Capacity:
5.1V DC: 15.0 A
3.3V DC: 4.0 A
24V DC: 2.8 A
1.2V DC: 1.5 A
Temperature, Operating:0 °C to +60 °C (+32 °F to +140 °F)

1756-PSCA2

Question

Answer

What is the purpose of the 1756-PSCA2?

It is the interface between the redundant power supplies and the chassis. It receives power from one or two external power supplies (like the 1756-PA75R or 1756-PB75R) and delivers it to the chassis backplane through a single connection .

Can I mix AC and DC power supplies with this adapter?

Yes, the redundant power supply system allows you to mix or match AC (e.g., 1756-PA75R) and DC (e.g., 1756-PB75R) power supplies when used in tandem with the 1756-PSCA2.

Does the 1756-PSCA2 require its own power source?

No. It is a passive device. It does not have its own power input and does not consume power to operate. It simply channels power from the connected redundant supplies to the chassis.
