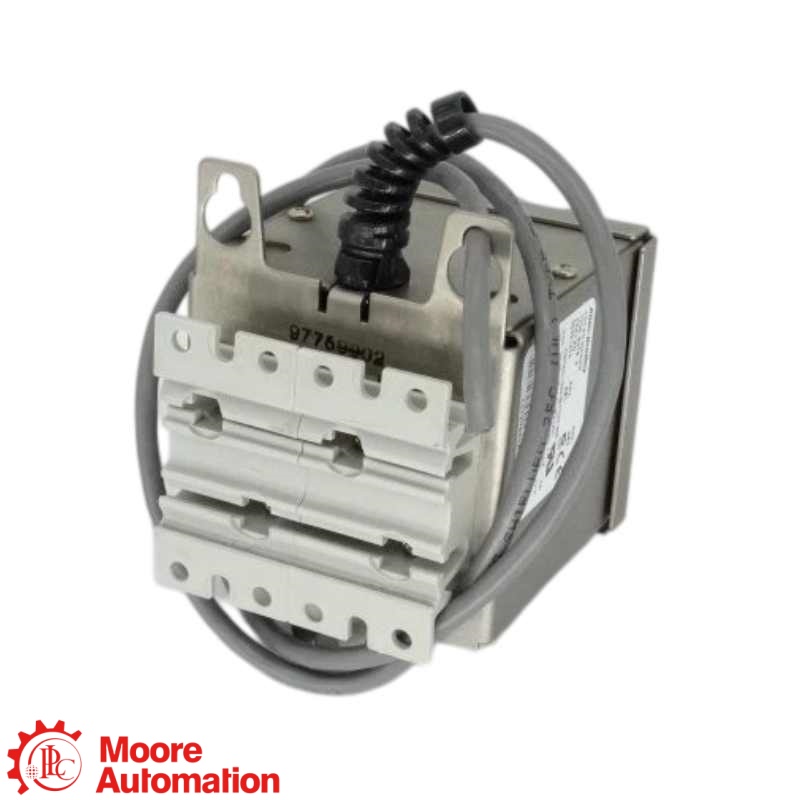

The 1756-BATM is a PLC battery backup module rated for 20 mA maximum at 3.6 V DC and designed for supported controller catalog numbers.
Marke :
PLCArtikelnummer :
1756-BATMGewicht :
Verify from the exact module labelAbmessungen :
Verify mounting and wiring from publication 1756-IN576Herkunftsland :
USAHS-Code :
Battery Backup ModuleBeschreibung :
The 1756-BATM is a PLC battery backup module rated for 20 mA maximum output at 3.6 V DC for supported controller catalog numbers.Click “+” to expand more specifications.
Source: Official publication 1756-IN576 covers 1756-BATM installation. Verify the module and controller catalog numbers, wiring and operating environment before replacement.
1756-BATM is a battery backup module used with supported PLC controller catalog numbers to maintain controller memory backup.
1756-BATM is officially specified for 20 mA maximum output at 3.6 V DC.
1756-BATM is documented for 1756-L55Mxx, 1756-L61, 1756-L62 and 1756-L63 controller catalog numbers.
1756-BATM installation instructions specify only one battery module per controller.
1756-BATM is listed for operation from 0 to 60 °C (32 to 140 °F).
1756-BATM was discontinued on July 18, 2017, and the official lifecycle record lists no planned manufacturer replacement.
1756-BATM inquiries should include the complete module catalog number, controller catalog number, quantity, nameplate photos and installed battery arrangement.
Official manufacturer-reference information for the 1756-BATM battery backup module.
Official publication 1756-IN576 covers installation and wiring requirements for the 1756-BATM battery backup module.
OFFICIAL MANUALSend the complete model, quantity, nameplate photos and your technical or purchasing question.
Technical statements on this page are limited to official publication 1756-IN576 and the official product lifecycle record. No third-party product sources were used.
PLC is the product-family reference. 1756-BATM must be matched to the complete module label, supported controller catalog number, battery connection, wiring and operating environment.
Record the installed controller catalog number, existing battery arrangement, wiring and adjacent equipment.
Photograph the battery module, connector, wiring and controller nameplate before removal.
Verify the 3.6 V DC rating, 20 mA maximum output and installation wiring before commissioning.
Do not select a substitute until the controller catalog number, battery arrangement, wiring and application requirements are confirmed.

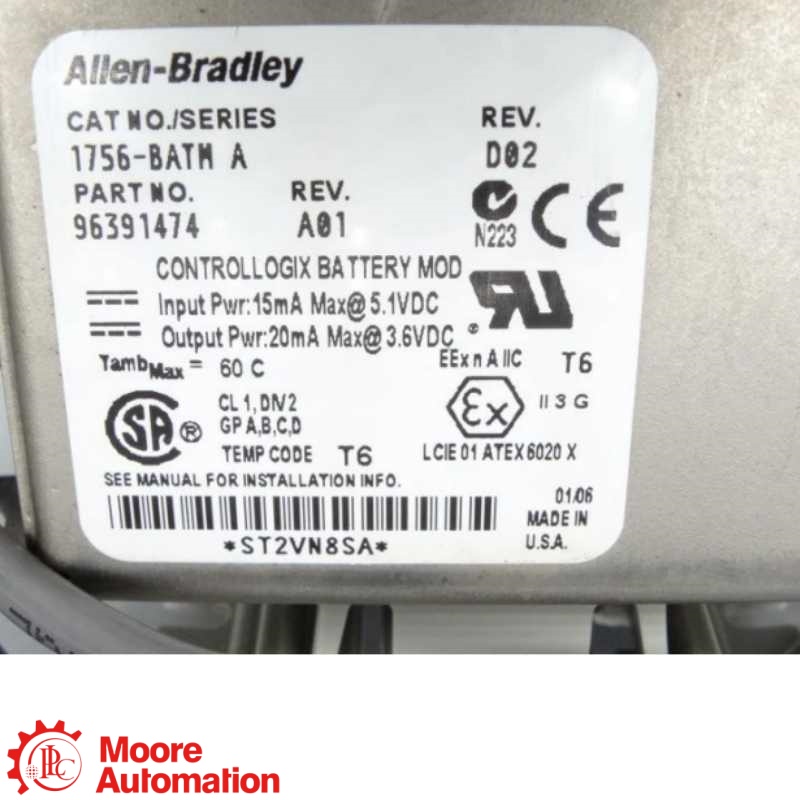

Match 1756-BATM to the full module label and installed-system documentation.
Confirm that controller memory and the required backup procedure are protected before battery-module removal.
Record the controller catalog number, battery connection, wiring and operating environment.
Confirm module catalog number, supported controller catalog number, wiring and one-module-per-controller requirement before commissioning.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
