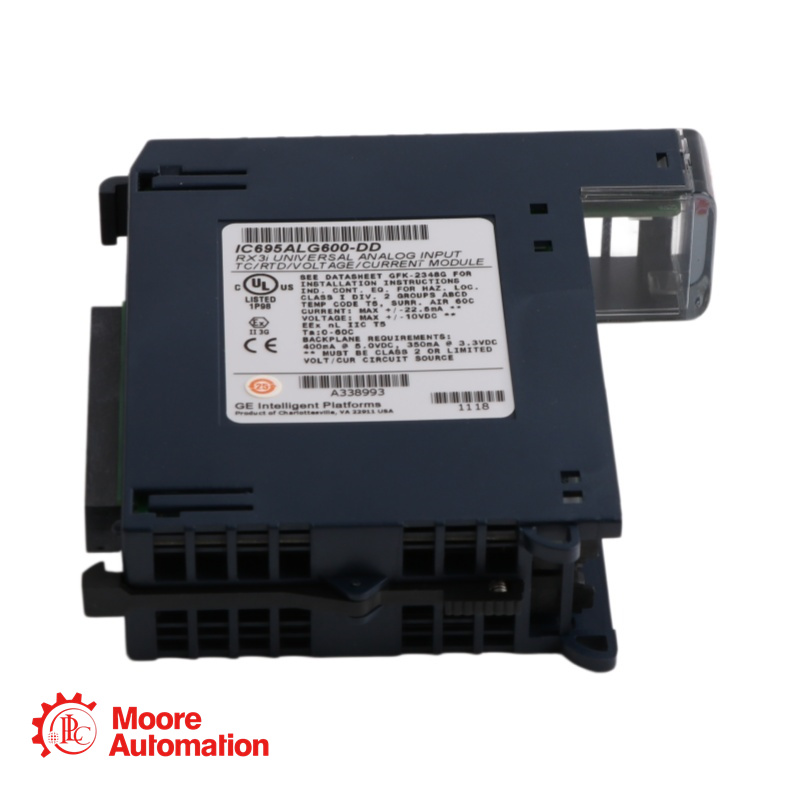

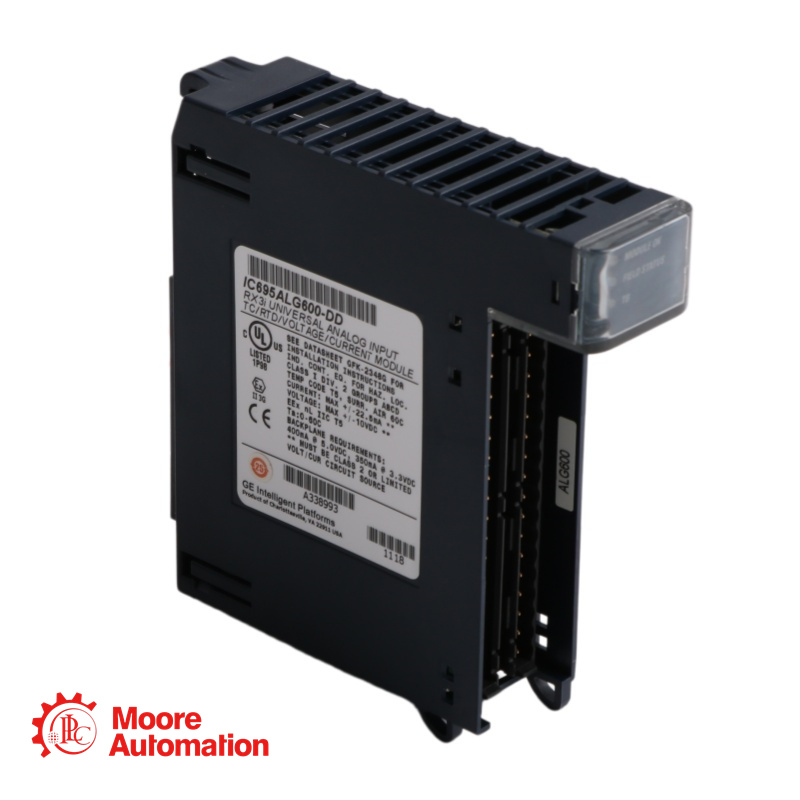

IC695ALG600-DD GE Universal Analog Input Module

GE Universal Analog Input Module
IC695ALG600-DD

General Information

Product ID:

IC695ALG600-DD

Country of Origin:

USA

Tariff Number:

8537101190

Condition:

100% new & origin

Description

IC695ALG600-DD

Introduction

The IC695ALG600-DD is a high-performance universal analog input module for the PACSystems RX3i platform. It provides eight general-purpose input channels and two dedicated CJC channels, divided into two isolated groups of four channels each. Each channel is individually software-configurable via Proficy Machine Edition, supporting a wide range of input types including voltage, current, thermocouple, RTD, and resistance. The module features autocalibration at power-up, onboard error-checking, open-circuit and short-circuit detection, user-defined scaling, and configurable alarms (overrange, underrange, high/low alarms, rate-of-change alarms). The -DD revision specifically enhances tolerance to terminal block detection and includes firmware version 1.14, which resolves earlier issues related to CJC accuracy, open-wire RTD affecting adjacent channels, and unstable thermocouple readings on open circuits.

System

Series: PACSystems RX3i
System Compatibility: Requires an RX3i Universal Backplane
CPU Requirement: RX3i CPU with firmware version 2.80 (Build ID 43A1) or later
Software Requirement: Proficy Machine Edition 5.0 SP1A (LD-PLC Hotfix 1) or later
Terminal Blocks Supported: Box-style (IC694TBB032), Extended Box-style (IC694TBB132), Spring-style (IC694TBS032), Extended Spring-style (IC694TBS132) – ordered separately
CJC Sensor Accessory: IC695ACC600 (two CJC sensors)
Firmware Upgrade Kit: 44A753049-G03 (available from GE IP support website)
Certifications: CE, UL/CUL 508 and 1604, ATEX

Application

IC695ALG600-DD

◆Steel Manufacturing Plants:For high-temperature monitoring using thermocouple types B, R, S
◆Chemical & Petrochemical Plants:For RTD and 4-20 mA signal acquisition from pressure and temperature transmitters
◆Power Generation Plants (Thermal, Gas, Cogeneration):For voltage, current, and thermocouple inputs on turbines and boilers
◆Pharmaceutical Manufacturing Facilities:For precise RTD-based temperature control in bioreactors and sterilizers
◆Food & Beverage Processing Plants:For hygienic process monitoring using thermocouple and RTD inputs
◆Automotive Assembly Plants:For mixed signal inputs (voltage, current, resistance) from robotic cells and testing equipment
◆Water & Wastewater Treatment Facilities:For 4-20 mA loop-powered sensors measuring flow, level, and pressure
◆Mining & Mineral Processing Plants:For long-distance RTD and resistance signal acquisition in harsh environments
◆Oil & Gas Refineries:For thermocouple and isolated input monitoring on distillation columns and cracking furnaces
