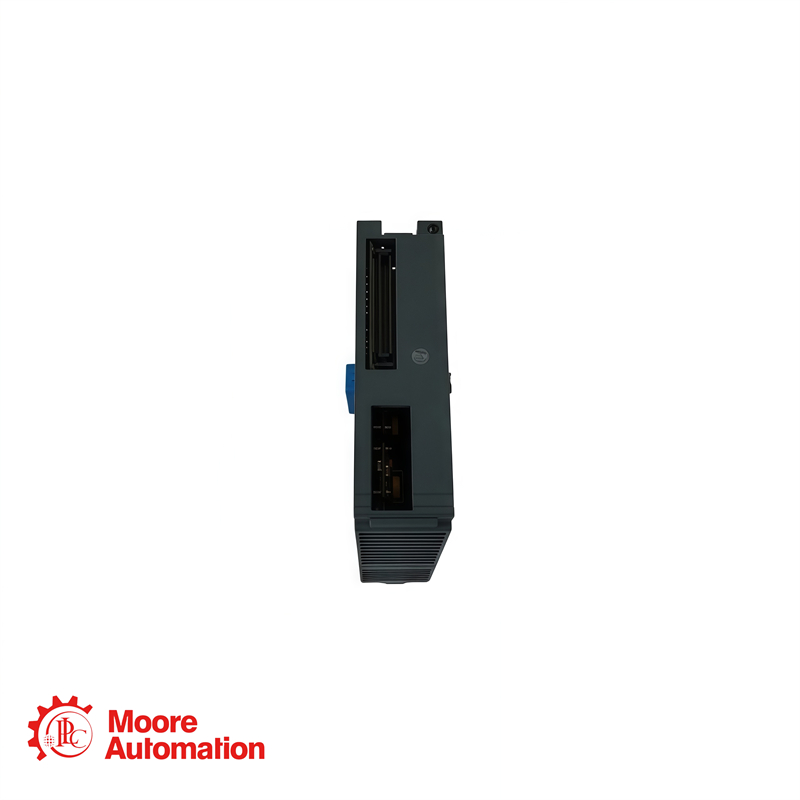

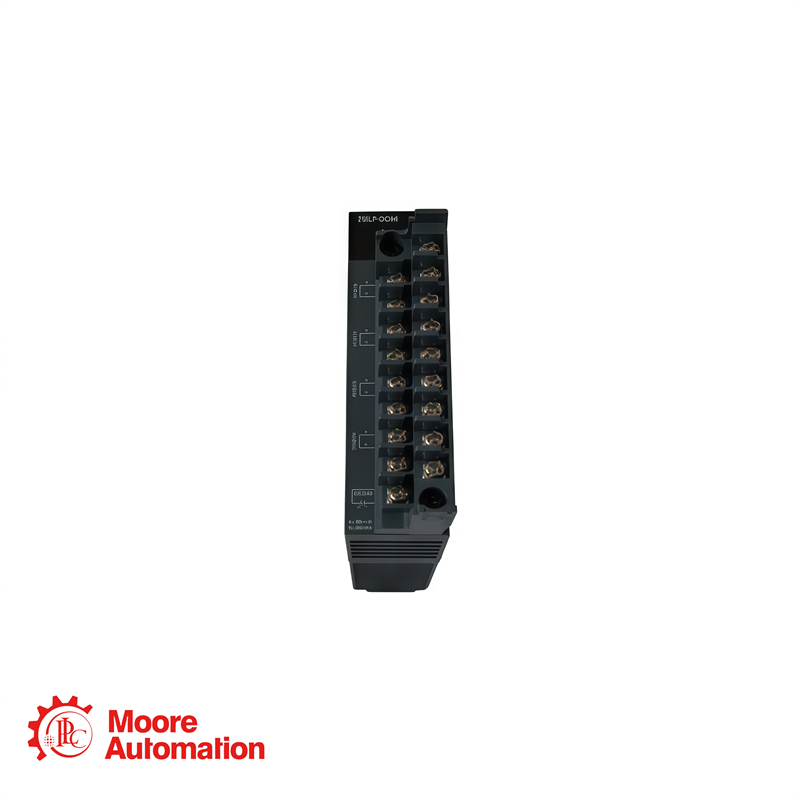

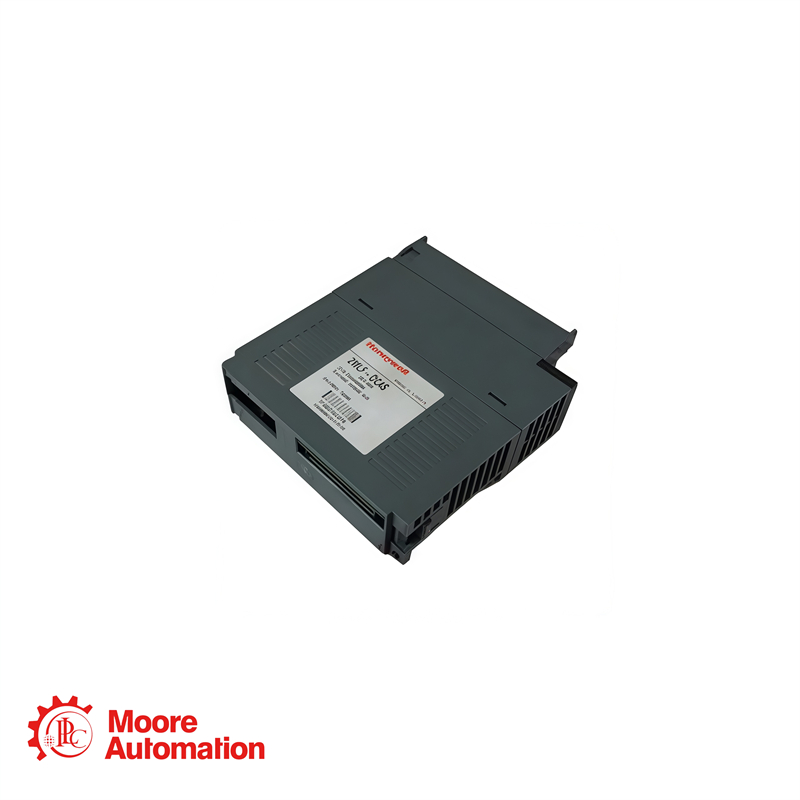

Honeywell 2MLF-DC4S Analog Output Module

Basic Information

Model Number: 2MLF-DC4S

Manufacturer: Honeywell
Product Name: Analog Output Module
Availability: In Stock
Product Origin: USA
Shipping Port: Xiamen, China

Condition: 100% Original

Warranty: 1 Year

Output Channels: 4, optically isolated between channels
Resolution: 14 bits (16383 levels)
Settling Time: ≤ 1 ms (resistive load ≤ 600 Ω)
Accuracy: ±0.2% F.S. (@25°C); Temperature Coefficient: ±80 ppm/°C
Drive Capacitance: ≤ 600 Ω load (at 24 V supply)
Offset Leakage Current: ≤ 0.1 mA
Wire Disconnect Readback: Supports 4–20 mA wire disconnect detection (< 3.2 mA)
Short-Circuit Protection: Automatic current limiting, automatic recovery upon fault removal
Isolation: Channel to system optical coupling isolation; channel to channel isolation
Isolation Voltage: AC 560 V rms / 3 cycles (at 2000 m altitude)
Backplane 5 V Consumption: ≤ 150 mA
External Power Supply: DC 24 V ±10%, ripple ≤ 4 Vp-p, typical 80 mA
Operating temperature: -25 … +70°C
Storage temperature: -40 … +85°C
Relative humidity: 5–95% RH (non-condensing)
External connections: 18-position removable screw terminals (M3 x 6)
Applicable wires: 0.3–0.75 mm² stranded wire
Mounting method: 35 mm DIN rail
