Honeywell 2MLF-AC4H Analog Input Module

Basic Information

Model Number: 2MLF-AC4H

Manufacturer: Honeywell
Product Name: Analog Input Module
Availability: In Stock
Product Origin: USA
Shipping Port: Xiamen, China

Condition: 100% Original

Warranty: 1 Year

Number of channels: 4 channels/module, channel-to-channel isolation
Resolution: 14 bits (16383 steps)
Conversion speed: ≤ 10 ms/module (all channels)
Accuracy: ±0.05 % F.S. (@25°C); Temperature coefficient: ±40 ppm/°C
HART functionality: Supports Universal, Common-Practice, and Device-Specific commands; Single-drop/multi-drop mode; Up to 15 slave devices
Wire break detection: Automatic 4–20 mA range detection, dual alarms via LED and register
Isolation: Channel to system optocoupler isolation; channel-to-channel optocoupler isolation
Isolation withstand voltage: AC 560 V rms / 3 cycles (at 2000 m altitude)
Backplane 5 V consumption: 340 mA
External power supply: No external power supply required
Operating temperature: -25 … +70 °C
Storage temperature: -40 … +85 °C
Relative humidity: 5–95 %RH (non-condensing)

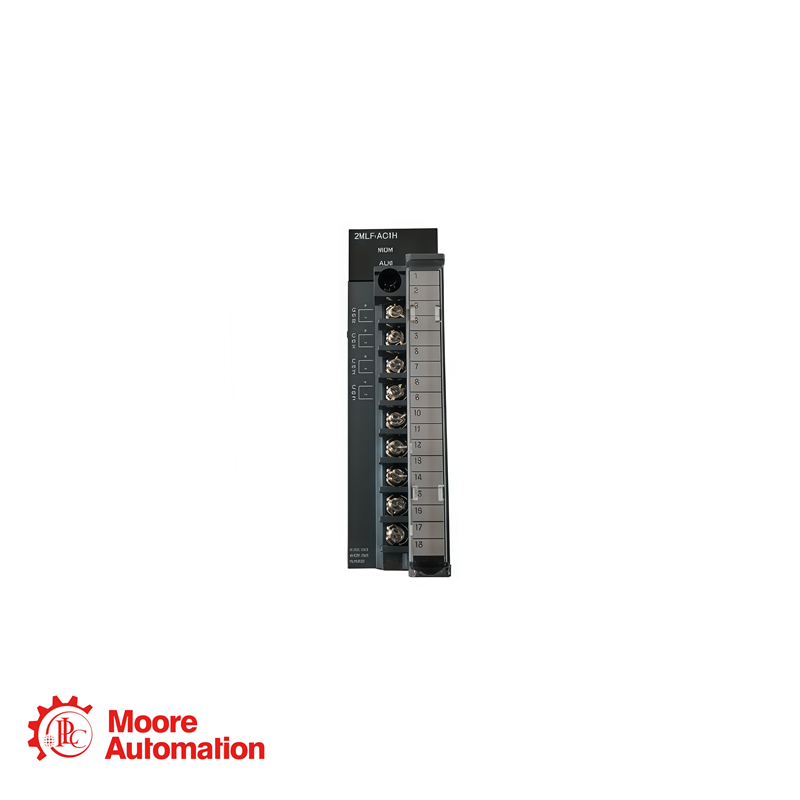

Connection: 18-position removable screw terminal (M3 x 6)
Applicable conductors: 0.3–0.75 mm² stranded wire
Mounting: 35 mm DIN rail (MasterLogic-200 baseplate)
