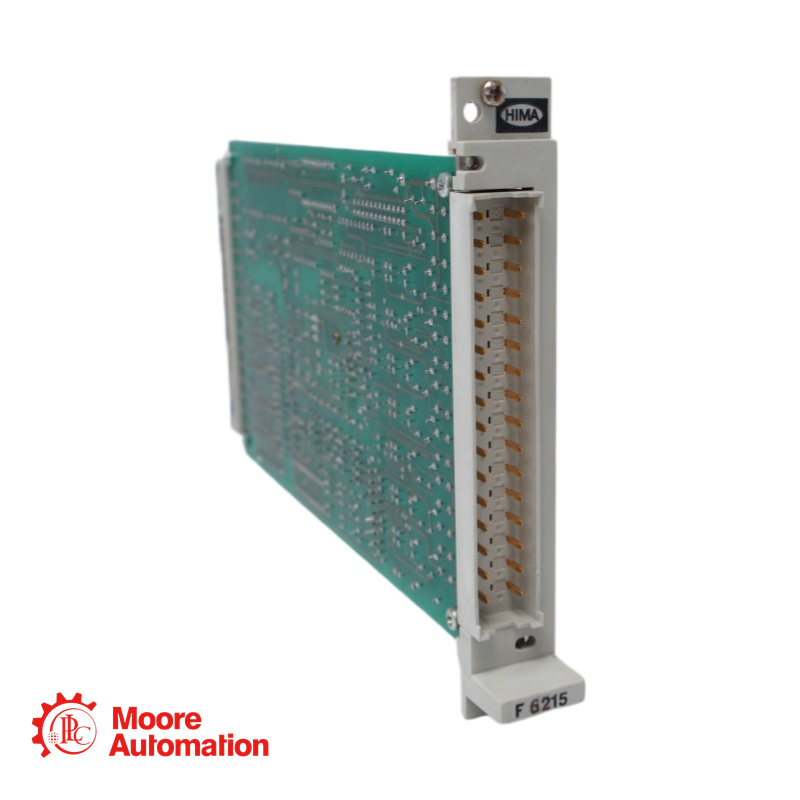

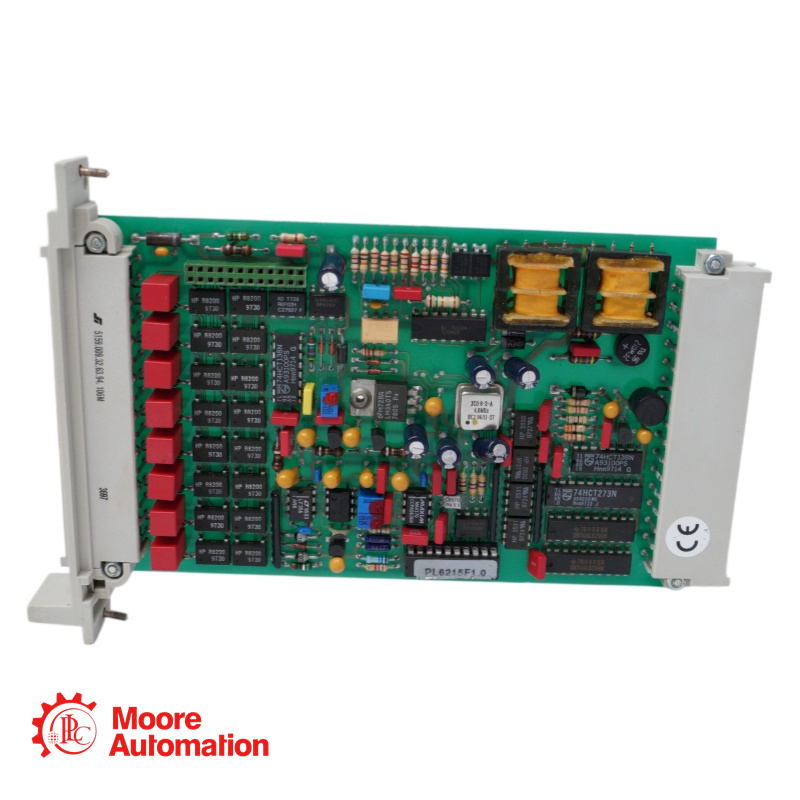

HIMA F6215 is a 8 Fold Analog Input Module for voltage inputs 0...1/5/10 V,Pt 100 inputs
Marke :
HIMAArtikelnummer :
F6215Gewicht :
0.2kgAbmessungen :
2x19x12.8cmHerkunftsland :
GermanyHS-Code :
8537101190Beschreibung :
8 Fold Analog Input Module
for voltage inputs 0...1/5/10 V,Pt 100 inputs
current inputs 0/4...20 mA,
with safety isolation to the plant and galvanically
isolation between the inputs,
resolution 12 bits
▷CONTACT INFO: Frida - Sales Manager
|
Phone/Whatsapp: +86 15359408275 |
|
|
Email: sales5@mooreplc.com |
|
|
▷SPECIFICATIONS
Input voltage:0...1.06 V (appr. 6 % overflow) Digital values:0 mV = 0, 1 V = 3840 R*: Shunt with 50 Ohm; 0.05 %; 0.125 W; current input:T<10 ppm/K; part-no: 00 0710500 Input resistance min.:1 MOhm Time const. inp. filter appr.:2.2 ms Conversion time max.:4 ms for 8 channels Basic error:0.1 % at 25 °C Operating error:0.3 % at 0...+60 °C Electric strength:200 V against Analog GND Ik for PT 100 2.5 mA Space requirement:4 TE Operating data:5 V DC: 100 mA, 24 V DC: 140 mA
▷ABOUT F6215 FAQ
What is the primary function of the HIMA F 6215 module? A:The HIMA F 6215 is an 8-channel analog input module. It is designed to capture, isolate, and safely process analog plant signals What safety level does this module achieve? A:It features certified safety isolation to the plant and galvanic isolation between individual inputs. What is the conversion resolution and speed? A:Resolution: 12 bits. Conversion Time: Maximum 4 ms to cycle through all 8 channels. Input Filter Time Constant: Approximately 2.2 ms to damp high-frequency signal noise.
|
