/Hach DR3900 LPG440.99.00002 Laboratory VIS Spectrophotometer
Hach DR3900 LPG440.99.00002 Laboratory VIS Spectrophotometer
Hach DR3900 LPG440.99.00002 Laboratory VIS Spectrophotometer
Hach DR3900 LPG440.99.00002 Laboratory VIS Spectrophotometer

Hach DR3900 LPG440.99.00002 Laboratory VIS Spectrophotometer

PRODUCT REFERENCE VERIFICATION

DR3900 LPG440.99.00002

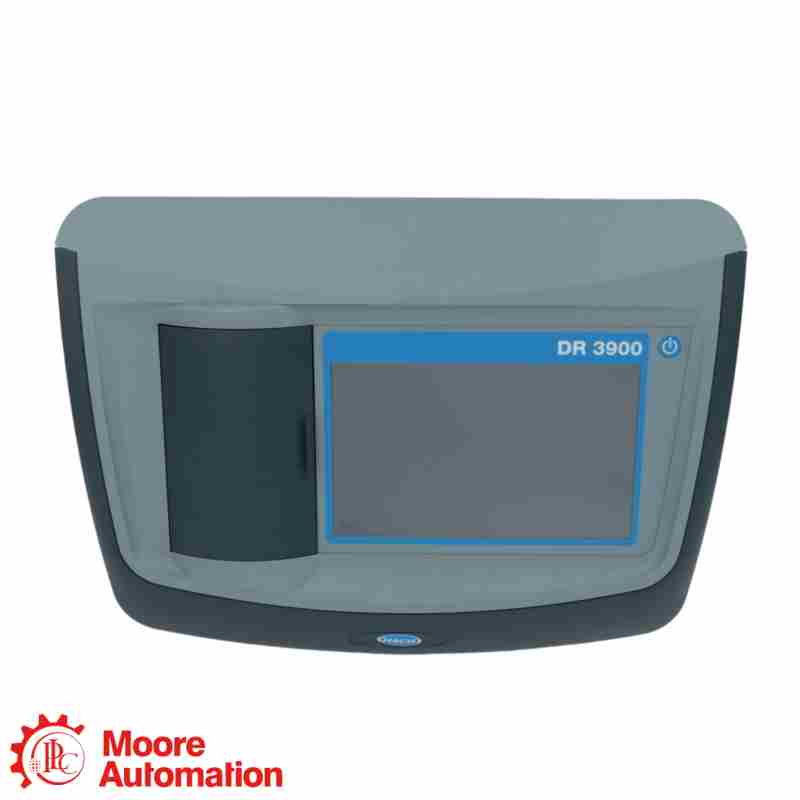

The Hach DR3900 LPG440.99.00002 is a benchtop visible-spectrum spectrophotometer for routine water analysis. It covers 320–1100 nm and combines a 7-inch colour touchscreen, automatic wavelength selection, method storage and USB/Ethernet connectivity.

CATALOGLPG440.99.00002
RANGE320–1100 nm
DISPLAY7-inch TFT touch
CONFIGURATIONNon-RFID reference check
BRANDHach
PRODUCT TYPELaboratory VIS Spectrophotometer
CONDITION / WARRANTYOriginal New · One-Year Warranty
VERIFICATIONConfirm LPG/LPV code, RFID option and accessories
REQUEST A QUOTE
  • Marke :

    Hach
  • Artikelnummer :

    DR3900 LPG440.99.00002
  • Beschreibung :

    Laboratory VIS Spectrophotometer
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
PRODUCT INFORMATION● OFFICIAL HACH REFERENCE
PRODUCT REFERENCE VERIFICATION

DR3900

LPG440.99.00002

LABORATORY VIS SPECTROPHOTOMETER · 320–1100 nm · 7-INCH TOUCHSCREEN

PRODUCT ROLE
DR3900 is a Hach benchtop VIS spectrophotometer for routine municipal, potable, process, surface and groundwater analysis and laboratory QA/QC workflows.
INSTALLATION CHECK

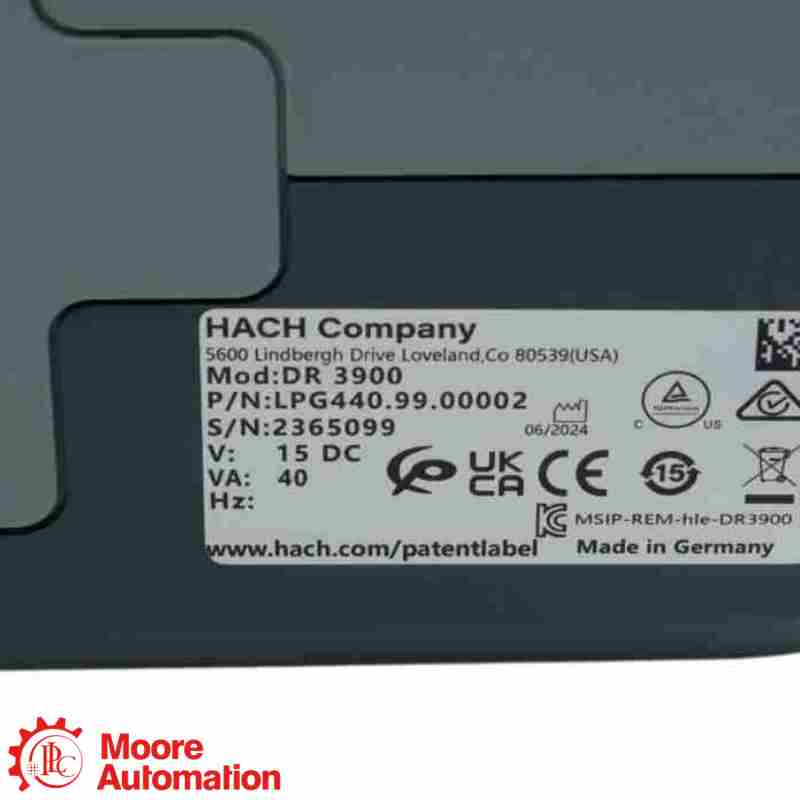

Confirm the complete LPG440.99.00002 nameplate, regional power cord, RFID requirement, cell adapters, installed methods, data interfaces and accessories before replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.comWHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the DR3900 LPG440.99.00002 Reference Is Identified

DR3900
Instrument modelHach laboratory visible-spectrum spectrophotometer family.
LPG440
Reference familyService-document ordering family used for this DR3900 variant.
.99
Regional segmentVerify the supplied region, power cord and language configuration.
.00002
Option segmentCurrent Hach documentation associates .00002 with the non-RFID configuration.
OFFICIAL HACH REFERENCE

Technical Specifications

VERIFY COMPLETE CONFIGURATION
DR3900 FAMILY

Engineering data at a glance

Click “+” to expand more specifications.

WIDTH35.0 cm
DEPTH25.5 cm
HEIGHT15.1 cm
WEIGHT4.2 kg
Product arrival inspection record.
Optical Performance
Wavelength range320–1100 nm
Wavelength accuracy±1.5 nm · 340–900 nm
Wavelength reproducibility±0.1 nm
Spectral bandwidth5 nm
Photometric range±3.0 Abs · 340–900 nm
Official values apply under the documented Hach test conditions; verify the selected method and sample cell.
Display, Data and Interfaces
Display7-inch TFT WVGA · 800 × 480
Measurement records2000
User programs100
Interfaces2 × USB A · USB B · Ethernet
The .00002 reference is documented as the non-RFID configuration.
Cells, Power and Environment
Cell compatibility13 mm round · 1 cm / 5 cm rectangular · 1-inch round / rectangular
Power supply110–240 V AC · 50/60 Hz
Operating temperature10–40 °C
Humidity / enclosureMaximum 80% RH non-condensing · IP30
Confirm the included cell adapters, power cord and laboratory environment before installation.
FAQ

DR3900 Function, Configuration and Replacement FAQ

What is the Hach DR3900 used for?

DR3900 is a laboratory visible-spectrum spectrophotometer for routine municipal, potable, process, surface and groundwater analysis and QA/QC laboratory workflows.

Does LPG440.99.00002 include RFID?

Hach service material lists LPG440.99.00002 as a DR3900 variant without RFID. The current catalog uses LPV440.99.00002 for the non-RFID model, so confirm the complete instrument nameplate.

What wavelength range does DR3900 cover?

The documented wavelength range is 320–1100 nm, with ±1.5 nm accuracy from 340–900 nm and a 5 nm spectral bandwidth.

Which sample cells fit DR3900?

The official data sheet lists 13 mm round, 1 cm and 5 cm rectangular, 1-inch round and 1-inch rectangular cells. Confirm the supplied adapter and method.

How many results can DR3900 store?

DR3900 stores up to 2000 measurement records and supports 100 user programs.

Which interfaces are built into DR3900?

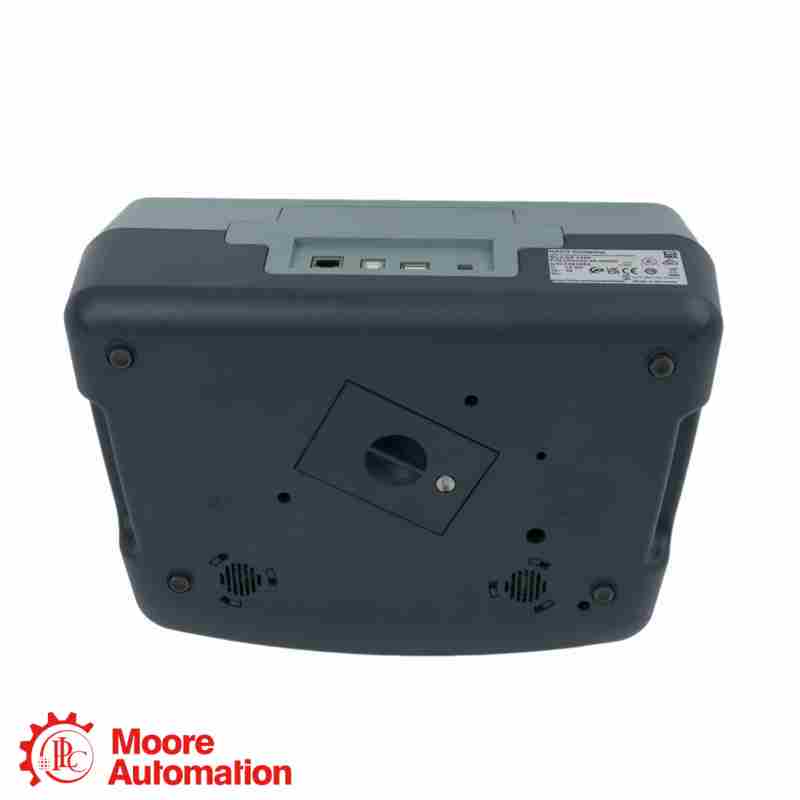

The instrument provides two USB Type A ports, one USB Type B port and Ethernet for printer, memory and network functions defined by the installed workflow.

What must be checked before replacing DR3900?

Confirm the complete LPG/LPV reference, RFID requirement, voltage and cord set, cell adapters, installed methods, data-export needs, accessories and saved records before replacement.

CONTACT PRODUCT SPECIALIST

Check DR3900 LPG440.99.00002 configuration with Frida

Provide the complete DR3900 LPG440.99.00002 nameplate, RFID status, power cord, cell adapters, installed methods and data interfaces, quantity and destination for compatibility checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
DR3900 LPG440.99.00002

Official manufacturer-reference information for the Hach DR3900 Laboratory VIS Spectrophotometer.

Official DR3900 documentation

Hach documents the DR3900 as a 320–1100 nm laboratory VIS spectrophotometer with a 7-inch touchscreen, 2000-result memory, 100 user programs, multiple cell formats, USB and Ethernet interfaces. The current no-RFID product page uses LPV440.99.00002; verify the supplied LPG440.99.00002 nameplate.

OPEN OFFICIAL DATA SHEET ↗

Contact to Get Support

Send the complete order code, quantity, destination, cell format, methods and your technical or purchasing question.

Specifications above are from official Hach DR3900 documentation. Confirm the complete LPG440.99.00002 nameplate, RFID configuration, power cord, cell adapters and installed methods before ordering or replacement.

HACH LABORATORY WATER ANALYSIS · VISIBLE SPECTROPHOTOMETRY

How DR3900 Fits a Laboratory Water-Analysis Workflow

Hach is the brand; DR3900 LPG440.99.00002 is the benchtop VIS spectrophotometer; and its pre-programmed methods, compatible cells and data interfaces support controlled routine water analysis.

Hach · BRAND
DR3900 Laboratory VIS Spectrophotometer320–1100 nm · 7-INCH TOUCH · USB / ETHERNET
SYSTEM ROLE

VISIBLE-SPECTRUM ANALYSIS

Measures prepared water samples using the documented Hach method, reagent and wavelength.

METHOD FIT

PROGRAM · REAGENT · CELL

Match the analytical range, reagent chemistry, blank and required sample-cell path length.

DATA FLOW

STORE · USB · ETHERNET

Store results and transfer controlled records within the laboratory QA workflow.

System relationship: verify the full LPG/LPV reference, method, reagent lot, cell format, blank, sample range, QA requirement and data-transfer procedure before reporting a result.
VERIFICATION EVIDENCE

Evidence needed to verify DR3900 correctly

Product Identity

Match DR3900 and LPG440.99.00002 to the complete Hach nameplate and supplied configuration.

Laboratory Context

Document required methods, sample range, cell formats, accessories, power cord and data interfaces.

PRODUCT REFERENCEDR3900LPG440.99.00002
Method Evidence

Confirm program, reagent lot, sample preparation, blank, cell path length and QA requirements.

Replacement Check

Do not substitute by appearance; LPG/LPV reference, RFID option, accessories and saved methods must match.
