GE MARK VIE · RELAY OUTPUT ASSEMBLY

IS230TRLSH2B

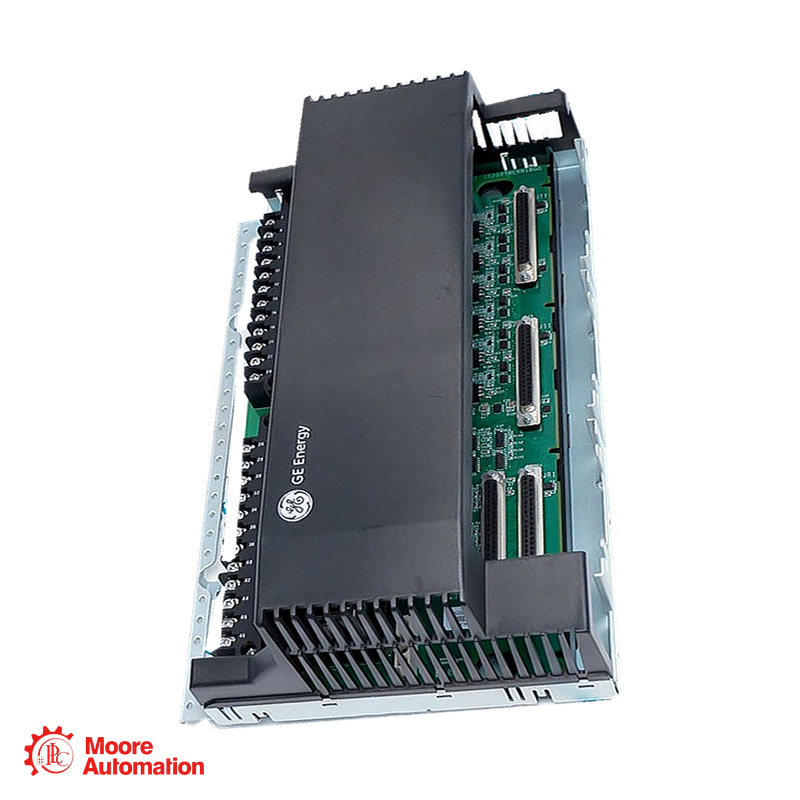

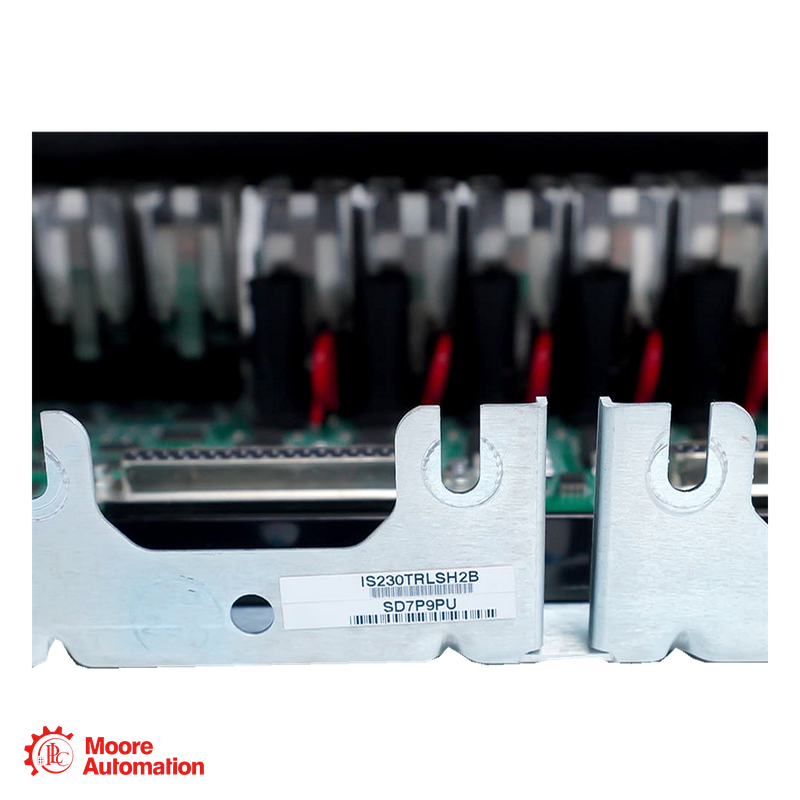

IS230TRLSH2B is a relay-output terminal assembly identified with the IS200TRLYS1BGG board. Its TRLYS1B interface provides 12 magnetic relay circuits, coil-sensing feedback and two 24-position field terminal blocks.

PRODUCT TYPERELAY OUTPUT TERMINAL ASSEMBLY
PLATFORMMark VIe
RELAY CIRCUITS12
FEEDBACKCoil sensing
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Jetzt anfragen
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● RELAY OUTPUT TERMINAL ASSEMBLY
MARK VIE

IS230TRLSH2B

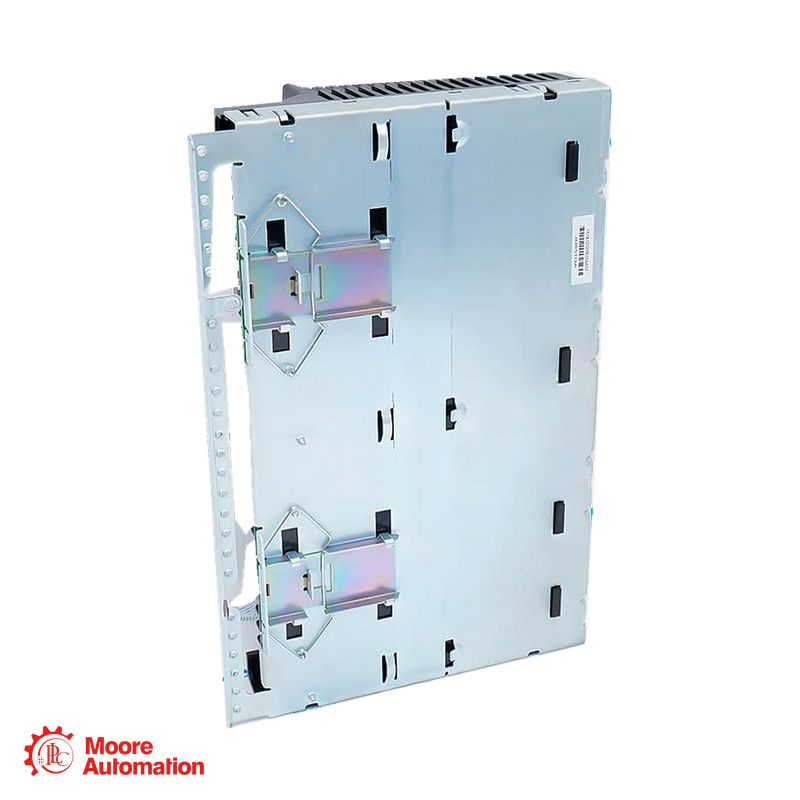

RELAY OUTPUT TERMINAL ASSEMBLY

MARK VIE · RELAY OUTPUT · TRLYS1B TERMINAL INTERFACE

MODULE ROLE
IS230TRLSH2B is a relay-output terminal assembly identified with an IS200TRLYS1BGG board and the TRLYS1B coil-sensing interface.
LONG DESCRIPTION
IS230TRLSH2B provides 12 magnetic relay circuits for discrete field switching. Its terminal-board interface includes two removable 24-position blocks, configurable circuits for solenoids and relay-coil status sensing.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the IS230TRLSH2B Reference Is Structured

IS
Issuing organizationGE, Salem, Virginia
2
Substance codeLegacy non-RoHS designation
30
Assembly levelCircuit assemblies mounted on a base
TRLS
Module functionRelay-output terminal assembly
H
Technology codeSurface-mount components included
2
Assembly variantManufacturer assembly variant 2
B
Compatibility versionBackward-compatibility version B
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark VIe ↗
IS230TRLSH2B RELAY OUTPUT TERMINAL ASSEMBLY

Engineering data at a glance

Click “+” to expand more specifications.

RELAY CIRCUITS12
CONTACT FORMForm C
FIELD TERMINALS2 × 24
MONITORINGCoil sensing
12 relay circuits, Form C contacts, two 24-position terminal blocks and coil-sensing feedback.
Relay terminal interface Assembly IS230TRLSH2B is paired with IS200TRLYS1BGG. The TRLYS1B board provides relay switching and coil-status feedback; pack selection follows the installed system configuration.
GENERAL INFORMATION −
BrandGE
Part numberIS230TRLSH2B
Product typeRelay Output Terminal Assembly
Terminal boardIS200TRLYS1BGG / TRLYS1B
Relay circuits12 plug-in magnetic relays
Relay interfaceForm C contact circuits
FIELD TERMINATION ＋
Terminal blocksTwo removable 24-position barrier blocks
Wire sizeUp to 12 AWG at the TRLY terminal blocks
Cable shieldsChassis-grounded shield terminal strips
RELAY CIRCUITS & BOARD INTERFACE ＋
Relays 1–6Jumper-configurable dry contacts or solenoid circuits
Relays 7–11Unpowered Form C contact circuits
Status feedbackRelay coil sensing
TRLYS1B pack compatibilityPDOA or YDOA, according to system configuration
RELAY COMMAND & FEEDBACK ＋
Signal path: The connected I/O pack commands the TRLYS1B relay circuits. Field devices connect at the terminal blocks, and coil-sensing circuitry returns relay excitation status.
Source: Assembly identification: paired hardware catalogues and labelled photographs. Terminal-board characteristics: GEH-6721 Volume II, section 8.5, TRLYH1B / S1B; GEH-6721 Volume I, part-number convention.
FAQ

Questions Buyers Ask Most

What is the function of IS230TRLSH2B?＋

IS230TRLSH2B provides the terminal-board and relay interface for switching discrete field circuits in a GE control system.

Which board is associated with IS230TRLSH2B?＋

IS230TRLSH2B is paired with IS200TRLYS1BGG in hardware records and labelled photographs; its terminal-board family is TRLYS1B.

How many relays are used by IS230TRLSH2B?＋

IS230TRLSH2B uses the TRLYS1B arrangement with 12 plug-in magnetic relays and coil-sensing status feedback.

Can IS230TRLSH2B interface solenoid circuits?＋

IS230TRLSH2B uses configurable solenoid or dry-contact arrangements on the first six relay circuits; jumpers and field power determine their use.

How does field wiring connect to IS230TRLSH2B?＋

IS230TRLSH2B terminates relay wiring on two removable 24-position barrier blocks, with adjacent grounded shield connections.

Which I/O pack families work with the board in IS230TRLSH2B?＋

The TRLYS1B board in IS230TRLSH2B supports PDOA and YDOA interfaces. Pack selection and redundancy depend on the installed control-system configuration.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IS230TRLSH2B

Official manufacturer-manual PDF status for GE IS230TRLSH2B.

Official manual PDF status

A direct manufacturer-hosted instruction-manual PDF covering IS230TRLSH2B was not located in the public documentation checked. For the applicable manual and product documentation, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Assembly identification: paired hardware catalogues and labelled photographs. Terminal-board characteristics: GEH-6721 Volume II, section 8.5, TRLYH1B / S1B; GEH-6721 Volume I, part-number convention.

GE RELAY-OUTPUT TERMINAL RELATIONSHIP

How IS230TRLSH2B Interfaces Relay Field Circuits

GE is the manufacturer brand; GE Mark VIe is the product family; and IS230TRLSH2B is the relay output terminal assembly for discrete relay outputs and coil-status feedback.

GE · BRAND
GE Mark VIeRelay Output Terminal Assembly
SYSTEM ROLE

Relay Output Terminal Assembly

Switches relay field circuits through the TRLYS1B terminal-board interface.

MODULE / CONFIGURATION

12 relay circuits · Coil sensing

Two removable 24-position terminal blocks provide field connections.

TRLYS1B RELAY INTERFACE

IS230TRLSH2B · Relay Output Terminal Assembly

The I/O pack drives the relay board, which returns relay-coil status.

System relationship: Controller output commands reach the relay board through the connected I/O pack; the terminal assembly connects relay contacts and field wiring.
APPLICATION AREAS

Application map for IS230TRLSH2B

Discrete Field SwitchingInterface relay-controlled field circuits
Solenoid InterfacesConfigure the first six relay circuits
MARK VIE RELAY FIELD INTERFACE IS230TRLSH2B IS230TRLSH2B · Relay Output Terminal Assembly
Relay DiagnosticsMonitor relay-coil excitation status
