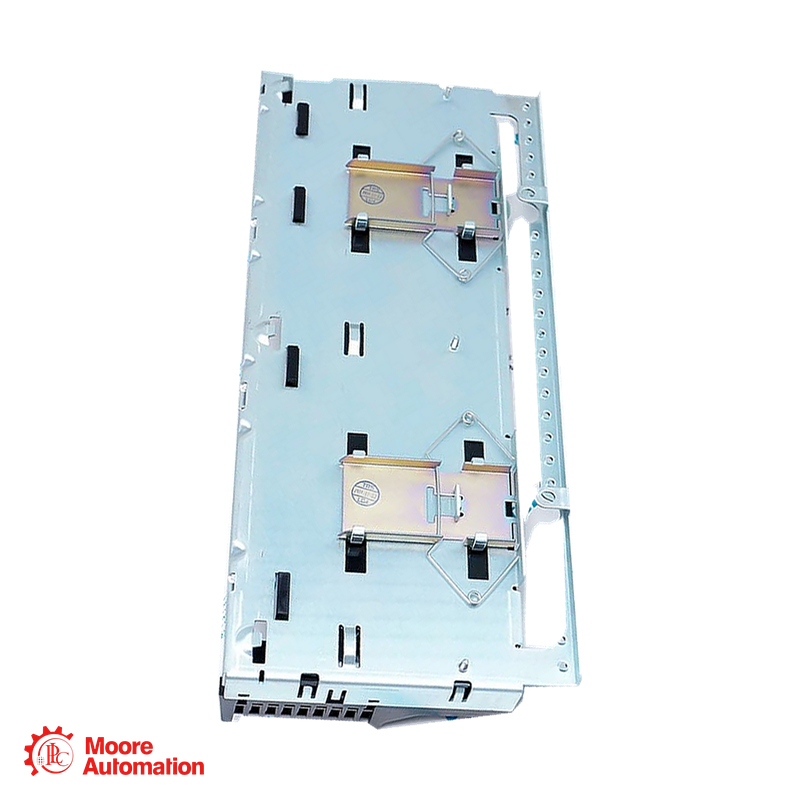

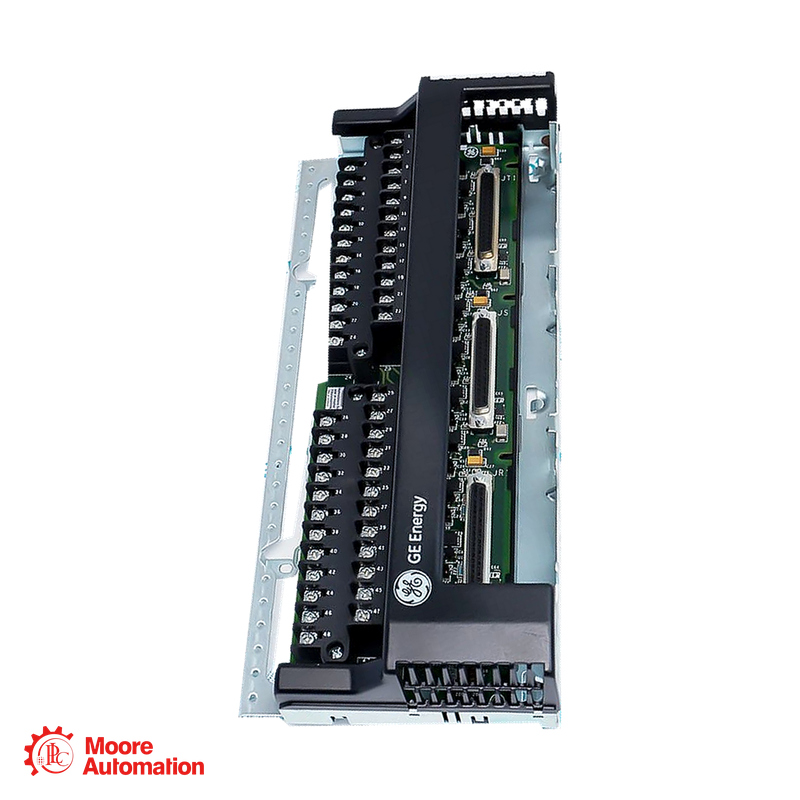

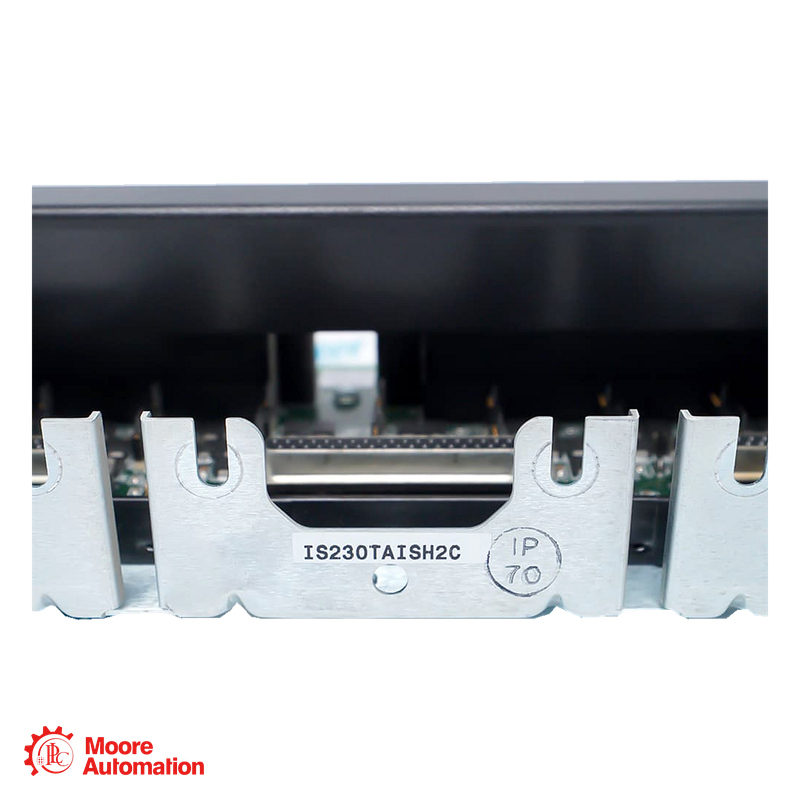

GE IS230TAISH2C Mark VIeS Analog I/O DIN Rail Assembly
GE IS230TAISH2C Mark VIeS Analog I/O DIN Rail Assembly
GE IS230TAISH2C Mark VIeS Analog I/O DIN Rail Assembly

GE IS230TAISH2C Mark VIeS Analog I/O DIN Rail Assembly

GE MARK VIES · TMR ANALOG I/O

IS230TAISH2C

IS230TAISH2C is a TMR analog I/O DIN-rail assembly identified with the TBAIS1C terminal board and YAICS interface. The associated analog interface provides 10 inputs and two current outputs.

PRODUCT TYPEANALOG I/O DIN RAIL ASSEMBLY
PLATFORMMark VIeS
ANALOG INPUTS10 channels
ANALOG OUTPUTS2 current loops
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Jetzt anfragen
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● ANALOG I/O DIN RAIL ASSEMBLY
MARK VIES

IS230TAISH2C

ANALOG I/O DIN RAIL ASSEMBLY

MARK VIES · TMR ANALOG I/O · TBAIS / YAICS

MODULE ROLE
IS230TAISH2C is a TMR analog I/O assembly using the TBAIS1C terminal-board arrangement and YAICS processing interface.
LONG DESCRIPTION
IS230TAISH2C connects analog process signals through 10 inputs and two current-loop outputs. TBAIS provides field termination, while YAICS handles acquisition and output conversion in the TMR arrangement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the IS230TAISH2C Reference Is Structured

IS
Issuing organizationGE, Salem, Virginia
2
Substance codeLegacy non-RoHS designation
30
Assembly levelCircuit assemblies mounted on a base
TAIS
Module functionTBAIS / YAICS analog I/O assembly
H
Technology codeSurface-mount components included
2
Assembly variantManufacturer assembly variant 2
C
Compatibility versionBackward-compatibility version C
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark VIeS ↗
IS230TAISH2C ANALOG I/O DIN RAIL ASSEMBLY

Engineering data at a glance

Click “+” to expand more specifications.

ANALOG INPUTS10
ANALOG OUTPUTS2
REDUNDANCYTMR
TERMINAL BOARDTBAIS1C
10 analog inputs, two current outputs, TMR processing and TBAIS1C field termination.
Analog interface configuration Assembly IS230TAISH2C is identified with TBAIS1C / YAICS. The analog I/O interface supports voltage/current inputs and two 0–20 mA outputs.
GENERAL INFORMATION −
BrandGE
Part numberIS230TAISH2C
Product typeAnalog I/O DIN Rail Assembly
Analog inputs10 channels through TBAIS / YAICS
Analog outputsTwo current-loop channels
Terminal boardTBAIS1C
ASSEMBLY & FIELD TERMINATION ＋
I/O interfaceYAICS analog input/output
Redundancy arrangementTriple modular redundant (TMR)
TBAIS field terminalsTwo 24-position barrier terminal blocks
ANALOG SIGNAL INTERFACE ＋
Inputs 1–8Configurable voltage or 4–20 mA
Inputs 9–10Current inputs
Output signal0–20 mA through YAIC
MountingDIN-rail assembly
ANALOG ACQUISITION & OUTPUT ＋
Signal path: TBAIS terminates field wiring. The YAICS interface acquires analog measurements and drives the two current outputs; the TMR arrangement provides redundant I/O processing.
Source: Assembly identification: Imaj Teknik / Teknihaus catalogues and labelled hardware. Component characteristics: GEH-6855 Volume II, YAIC and TBAIS1C; GEH-6721 Volume I, part-number convention.
FAQ

Questions Buyers Ask Most

What is IS230TAISH2C used for?＋

IS230TAISH2C is a TMR analog I/O DIN-rail assembly for process measurements and current-loop outputs.

Which terminal board is associated with IS230TAISH2C?＋

IS230TAISH2C is identified with the TBAIS1C terminal-board arrangement and YAICS analog I/O interface.

How many analog channels does IS230TAISH2C interface?＋

IS230TAISH2C uses the TBAIS / YAICS interface for 10 analog input channels and two analog output channels.

What input signals are handled by IS230TAISH2C?＋

IS230TAISH2C has voltage/current selection on inputs 1–8 and current inputs on channels 9–10 through its analog interface.

How is field wiring terminated on IS230TAISH2C?＋

IS230TAISH2C uses the TBAIS arrangement with two barrier terminal blocks, each containing 24 field-terminal positions.

What output signal does IS230TAISH2C use?＋

IS230TAISH2C uses two 0–20 mA analog outputs through YAIC. The PAICH2-specific 200 mA option is not assigned to this YAICS assembly.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IS230TAISH2C

Official manufacturer-manual PDF status for GE IS230TAISH2C.

Official manual PDF status

A direct manufacturer-hosted instruction-manual PDF covering IS230TAISH2C was not located in the public documentation checked. For the applicable manual and product documentation, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Assembly identification: Imaj Teknik / Teknihaus catalogues and labelled hardware. Component characteristics: GEH-6855 Volume II, YAIC and TBAIS1C; GEH-6721 Volume I, part-number convention.

GE MARK VIES ANALOG-I/O RELATIONSHIP

How IS230TAISH2C Connects Analog Process Signals

GE is the manufacturer brand; GE Mark VIeS is the product family; and IS230TAISH2C is the analog i/o din rail assembly for TMR analog measurement and current-loop output.

GE · BRAND
GE Mark VIeSAnalog I/O DIN Rail Assembly
SYSTEM ROLE

Analog I/O DIN Rail Assembly

Acquires analog measurements and provides current-loop outputs through TBAIS / YAICS.

MODULE / CONFIGURATION

10 analog inputs · 2 analog outputs

The TBAIS field interface uses two 24-position terminal blocks.

TBAIS / YAICS INTERFACE

IS230TAISH2C · Analog I/O DIN Rail Assembly

TBAIS terminates the field circuits; YAICS provides acquisition and analog output conversion.

System relationship: Field transmitters connect to TBAIS. YAICS processes their measurements and converts output commands for the two analog current loops.
APPLICATION AREAS

Application map for IS230TAISH2C

Process MeasurementsAcquire voltage and current signals
Transmitter WiringTerminate field devices on TBAIS
MARK VIES ANALOG PROCESS I/O IS230TAISH2C IS230TAISH2C · Analog I/O DIN Rail Assembly
Current-Loop OutputsDrive two analog output channels
Redundant I/OUse the TMR analog processing arrangement
