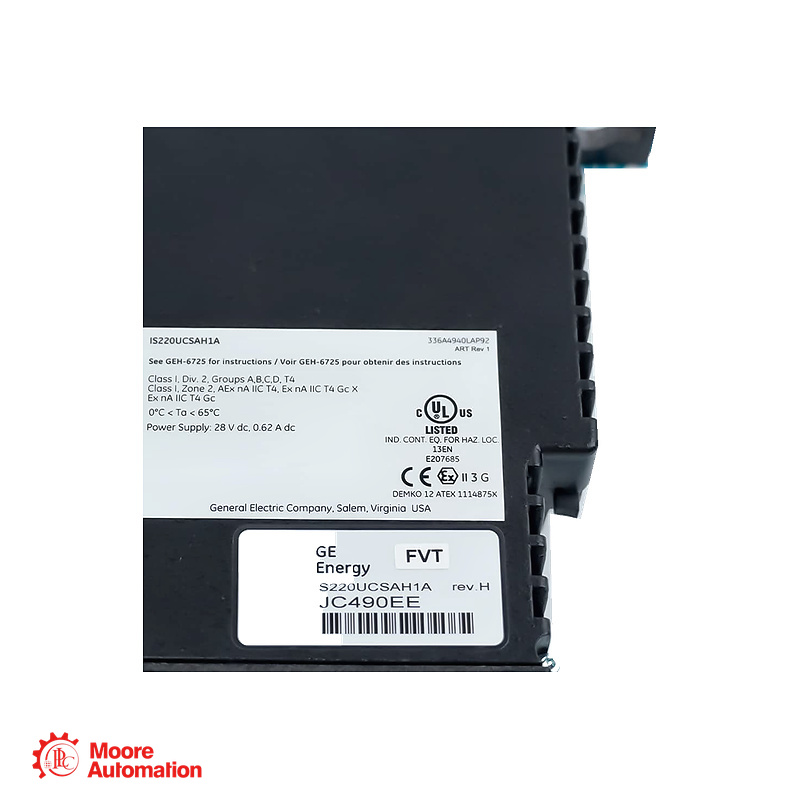

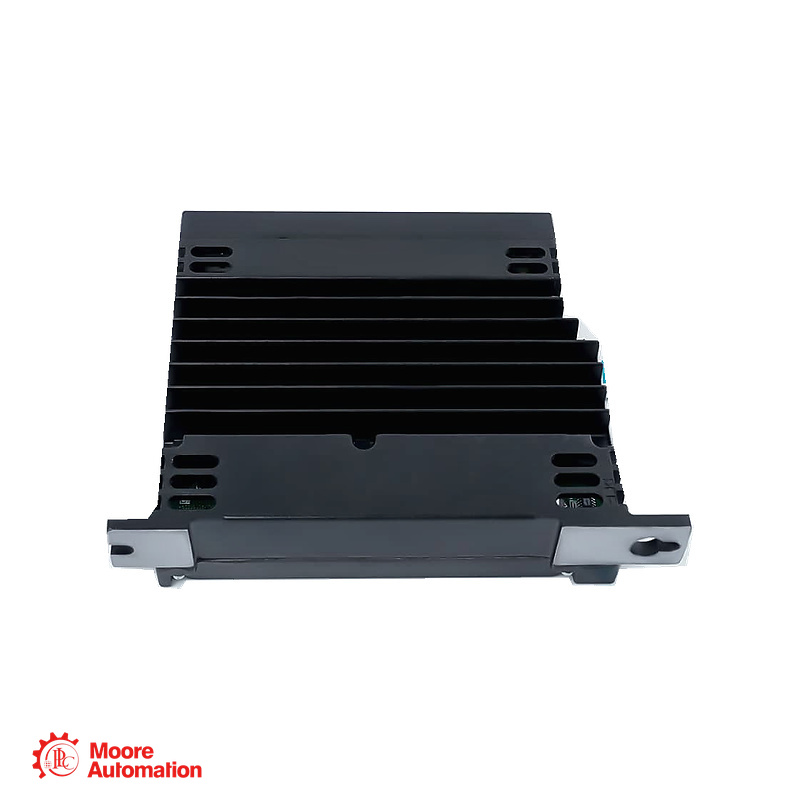

GE IS220UCSAH1A-C Mark VIe UCSA Controller Module

Contact Below to Get Best Price

Product Overview

The IS220UCSAH1A-C is listed as a variant of GE’s UCSA controller for the Mark VIe control platform. A UCSA controller runs application code and communicates with distributed I/O packs over dedicated IONet connections. Separate Ethernet interfaces carry controller data and communications with engineering and operator systems.The documented UCSA platform uses a 667 MHz Freescale PowerQUICC II Pro processor, 256 MB DDR SDRAM and the QNX Neutrino real-time operating system. It is used in turbine and balance-of-plant control arrangements where controller processing, I/O communication and system-status visibility are required.

Technical Specifications

Features

• Stand-alone controller that runs Mark VIe application code
• Dedicated IONet interfaces for distributed I/O communication
• Separate Ethernet interfaces for control-system communications
• QNX Neutrino real-time operating system
• Front-panel indicators for power, online state, network activity and diagnostics
• CompactFlash-based controller platform

Industries Served
-Power Generation: Used in Mark VIe control systems for turbine-generator operation and associated plant-control functions.
-Oil and Gas: Relevant to facilities operating turbine-driven compressors and other equipment governed by GE control systems.
-Industrial Utilities: Supports Mark VIe-based control architectures used for on-site generation and balance-of-plant processes.

Frequently Asked Questions

1. What role does the UCSA controller perform in a Mark VIe system?
It runs the control application and exchanges data with distributed I/O packs through IONet.
2. Does the controller contain the application I/O channels?
No. In GE’s UCSA architecture, the controller communicates with separate I/O packs rather than hosting application I/O on a backplane.
3. How are its Ethernet interfaces divided?
The documented UCSA specification lists two primary Ethernet interfaces and three IONet interfaces. The IONet ports communicate with controllers and I/O modules.
