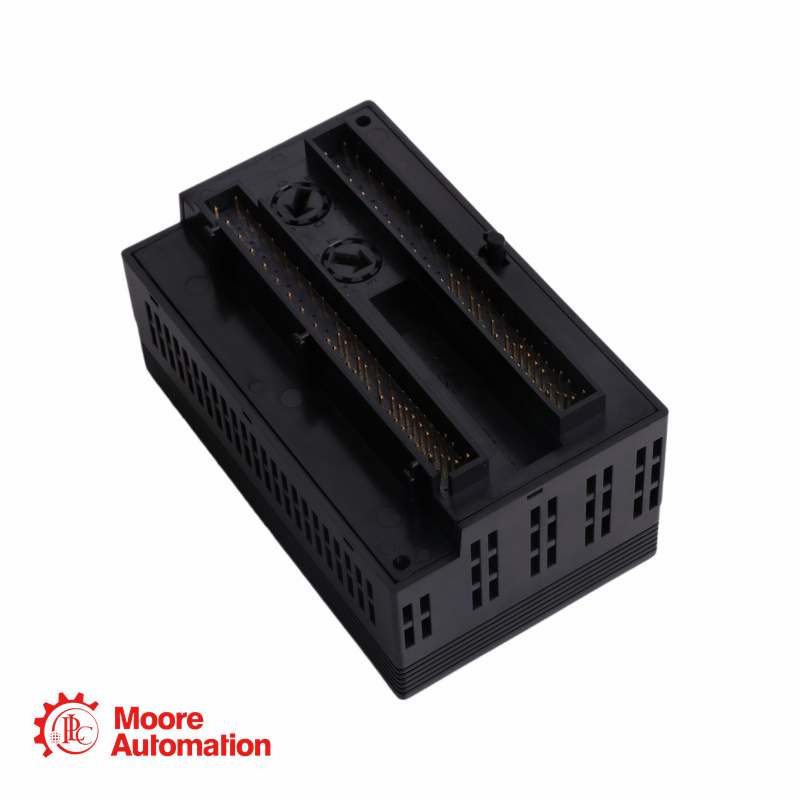

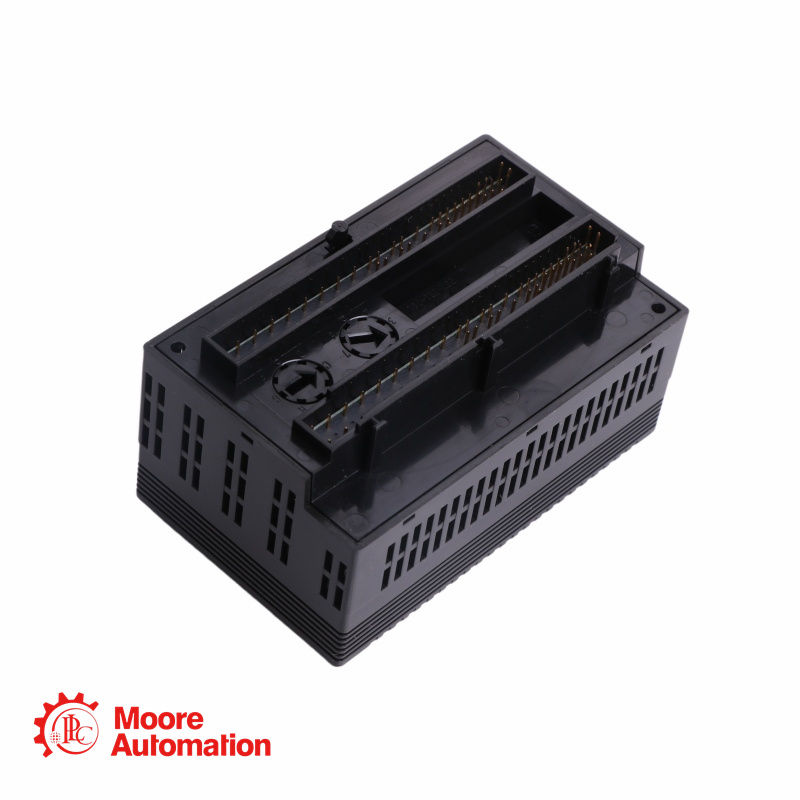

GE Fanuc VersaMax IC200MDL750J 32-Point 12/24VDC Output Module

Product Parameters

Item

Specification

Brand

GE

Product Series

VersaMax

Product Model

IC200MDL750J

Product Type

12/24VDC Positive Logic Discrete Output Module

Output Points

32 outputs, 2 groups of 16

Output Voltage

+10.2 to +30VDC, +12/24VDC nominal

Load Current

0.5A max. per point at 30VDC resistive load

Inrush Current

2.0A maximum for 100ms

Backplane Current

90mA maximum at 5V output

Response Time

ON: 0.2ms max.; OFF: 1.0ms max.

Isolation

250VAC continuous; 1500VAC for 1 minute

Frequently asked questions

Q1: How is IC200MDL750J different from IC200MDL740?
A: IC200MDL750J provides 32 outputs in two groups of 16, while IC200MDL740 provides 16 outputs in one group.

Q2: What does positive logic output mean for this module?
A: It is a sourcing output module that switches loads to the positive side of the DC supply.

Q3: What should be checked before driving field loads?
A: Check external supply voltage, 0.5A point current, 2A inrush limit, wiring group, and fuse protection.

Q4: Why is thermal derating important for IC200MDL750J?
A: The number of outputs ON at one time depends on voltage, ambient temperature, and mounting orientation.
