GE Fanuc IC655CPU500 Series Five CPU Module
GE Fanuc IC655CPU500 Series Five CPU Module
GE Fanuc IC655CPU500 Series Five CPU Module

GE Fanuc IC655CPU500 Series Five CPU Module

GE FANUC SERIES FIVE · CPU MODULE

IC655CPU500

The IC655CPU500 is the CPU module for the GE Fanuc Series Five PLC. It mounts next to the power supply in the CPU base unit and provides the processor, memory-cartridge interface, configurable communications and a battery-backed real-time clock/calendar.

PRODUCT TYPESERIES FIVE CPU MODULE
PLATFORMSeries Five PLC
EXECUTION0.5 µs basic one-word functions
CLOCKbattery-backed real-time clock/calendar
MANUFACTURERGE Fanuc
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Jetzt anfragen
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE Fanuc ● SERIES FIVE CPU MODULE
GE FANUC SERIES FIVE

IC655CPU500

SERIES FIVE CPU MODULE

SERIES FIVE PLC · CPU PROCESSING · MEMORY CARTRIDGE

MODULE ROLE
IC655CPU500 is the CPU module for the GE Fanuc Series Five PLC. It installs adjacent to the power supply in the CPU base unit, executes the control program stored in its memory cartridge and provides a battery-backed real-time clock/calendar.
LONG DESCRIPTION
The IC655CPU500 is the central processing module for the GE Fanuc Series Five PLC platform. Installed beside the power supply in the CPU base unit, it executes ladder-logic instructions from the removable memory cartridge, supports configurable RS-232 and RS-232/RS-422 communications, and maintains time and date functions with a battery-backed real-time clock/calendar. Basic one-word ladder functions can be executed in 0.5 microseconds, while front-panel indicators provide status information for power, run, CPU, diagnostics, battery, memory, I/O and communications.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Fanuc Series Five ↗
IC655CPU500 SERIES FIVE CPU MODULE

Engineering data at a glance

Click “+” to expand more specifications.

PRODUCT TYPESeries Five CPU Module
INSTALLATIONAdjacent to power supply
EXECUTION0.5 µs basic one-word functions
CLOCKBattery-backed real-time clock/calendar
GE Fanuc Series Five documentation identifies IC655CPU500 as the CPU module, installed next to the power supply in the CPU base unit, with memory-cartridge program storage and a battery-backed real-time clock/calendar.
Installation context Install IC655CPU500 adjacent to the power supply in the Series Five CPU base unit; match the memory cartridge and communication settings to the installed system.
GENERAL INFORMATION −
BrandGE Fanuc
Part numberIC655CPU500
Product typeSeries Five CPU Module
Product familySeries Five PLC
System roleCentral processing module
INSTALLATION & HARDWARE ＋
Mounting positionAdjacent to the power supply in the CPU base unit
Backplane connectionDirect plug-in; secured by two captive screws

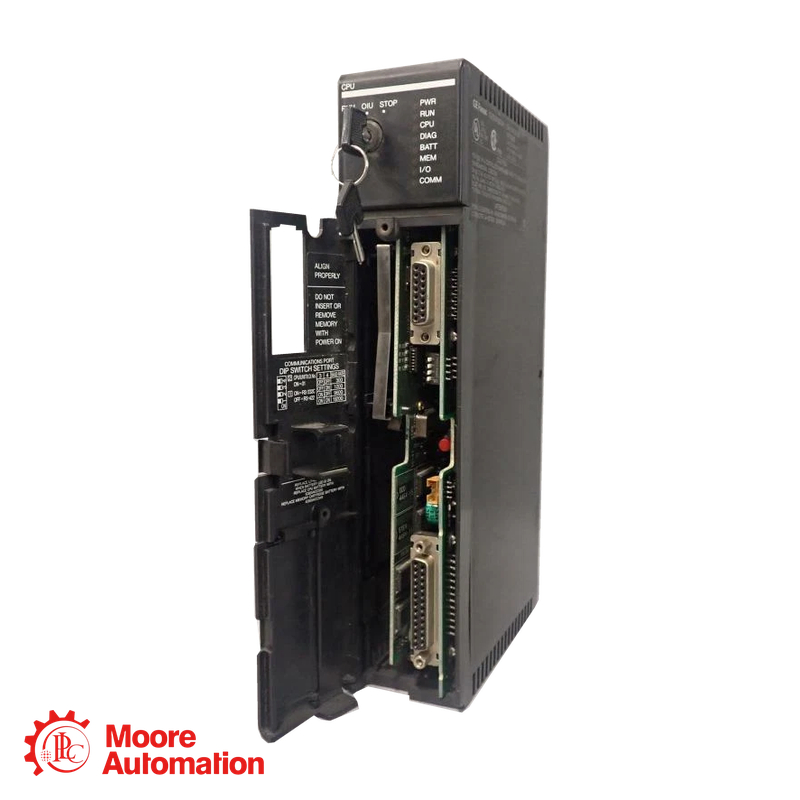

Front accessTwo hinged doors for user devices
PROCESSING & MEMORY ＋
Basic execution time0.5 µs for basic one-word ladder functions
Program storageRemovable CPU memory cartridge
Clock/calendarBattery-backed real-time clock/calendar
CONFIGURATION & COMMUNICATIONS ＋
ConfigurationUser-configurable DIP switches
CommunicationsRS-232 and RS-232/RS-422 signal interfaces

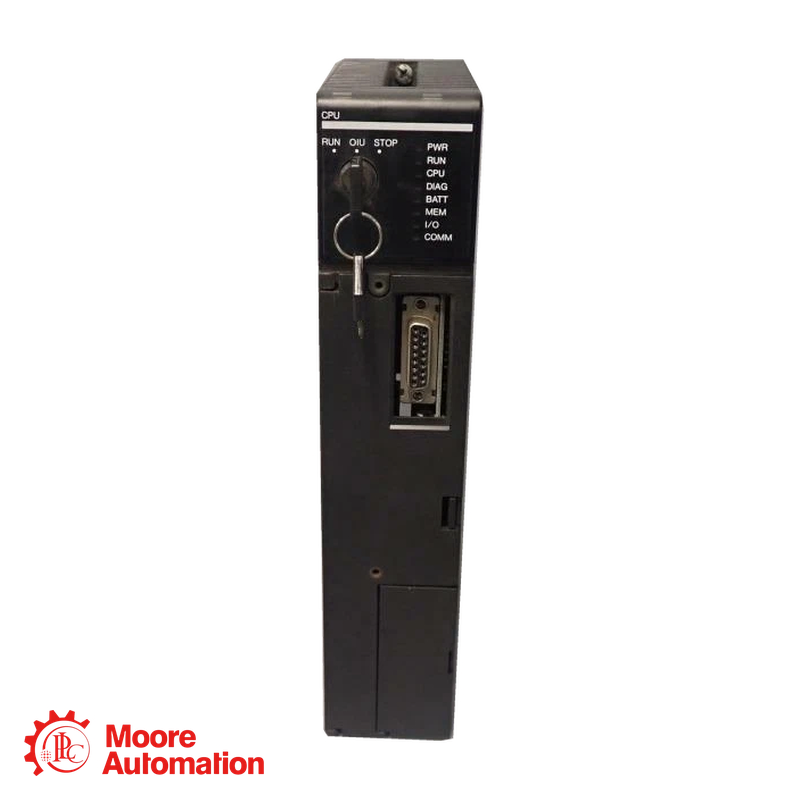

StatusFront-panel system status indicators
Source: GE Fanuc Series Five documentation identifies IC655CPU500 as the CPU module for the Series Five PLC.
FAQ

Questions Buyers Ask Most

What type of product is IC655CPU500?＋

IC655CPU500 is the CPU module for the GE Fanuc Series Five PLC.

Where is IC655CPU500 installed?＋

IC655CPU500 must be mounted adjacent to the power supply in the CPU base unit and plugs directly into the backplane.

How is the control program stored for IC655CPU500?＋

IC655CPU500 uses a removable memory cartridge that contains the program entered with Logicmaster 5 programming software.

What processing performance is documented for IC655CPU500?＋

IC655CPU500 executes basic one-word ladder functions, such as normally-open and normally-closed contacts, in 0.5 microseconds.

What configuration and timing features does IC655CPU500 provide?＋

IC655CPU500 provides user-configurable DIP switches and a battery-backed real-time clock/calendar.

Other Available Revisions for the IC655CPU500?＋

Other listed revisions include IC655CPU500A through IC655CPU500Z and IC655CPU500-RR. Confirm the complete revision suffix on the installed unit before ordering.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IC655CPU500

Documentation support for the GE Fanuc IC655CPU500 Series Five CPU Module.

Official datasheet status

No direct exact-model manufacturer-hosted IC655CPU500 PDF was confirmed in the public documentation. For product documentation and compatibility details, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

The product identification on this page follows GE Fanuc Series Five documentation; contact Frida for the exact applicable manual and ordering support.

GE FANUC SERIES FIVE RELATIONSHIP

How IC655CPU500 Fits into the Series Five PLC

GE Fanuc is the manufacturer brand; Series Five is the PLC platform; and IC655CPU500 is the CPU module installed in the CPU base unit.

GE Fanuc · BRAND
GE Fanuc Series FiveSeries Five CPU Module
SYSTEM ROLE

Series Five CPU Module

Executes the Series Five PLC control program stored in the CPU memory cartridge.

MODULE / CONFIGURATION

Memory cartridge · DIP switches · real-time clock

The CPU provides removable program storage, user-configurable communication settings and a battery-backed real-time clock/calendar.

ORDER DATA

IC655CPU500 · Series Five CPU Module

Match the exact CPU catalog number, Series Five base unit, power supply, memory cartridge and communication settings.

System relationship: verify the exact catalog number, CPU base-unit position, compatible power supply, memory cartridge, communication settings and battery condition.
APPLICATION AREAS

Application map for IC655CPU500

Series Five PLC ProcessingExecute the control program for the Series Five PLC
Program StorageStore the control program in the removable CPU memory cartridge
APPLICATION CENTER IC655CPU500 IC655CPU500 · Series Five CPU Module
System TimingUse the battery-backed real-time clock/calendar in the control program
Configuration & CommunicationsSet communication parameters with the front-panel configurable DIP switches.
