Marke :
GEArtikelnummer :
IC200ALG230HGewicht :
0.14kgAbmessungen :
11cm x 6.68cm x 5cmHerkunftsland :
USAHS-Code :
8537101190Beschreibung :
VersaMax 4-channel 12-bit voltage/current analog input module for PLC signal acquisition.
|
Grab an Extra Discount - Contact Us |
|||||||||||||||||||||||||||||||
|
Name：Sylvie |
|||||||||||||||||||||||||||||||
|
Whatsapp：+86 18030235312 |
|||||||||||||||||||||||||||||||
|
Email：sales8@askplc.com
Product Parameters
Item
Specification
Brand
GE
Product Series
VersaMax
Product Model
IC200ALG230H
Product Type
12-Bit Voltage/Current Analog Input Module
Channels
4 single-ended analog input channels, one group
Module ID
FFFF9004
Input Range
±10VDC default; 0–10VDC configurable; 4–20mA current mode
Resolution
Voltage: 2.5mV = 8 counts; Current: 4μA = 8 counts
Accuracy
±0.3% typical FS at 25°C; ±0.5% max FS at 25°C; ±1% max FS at 0–60°C
Backplane Current
125mA maximum at 5V output
Response / Update Rate
Filter response: 5.0ms; update rate: 0.4ms per module

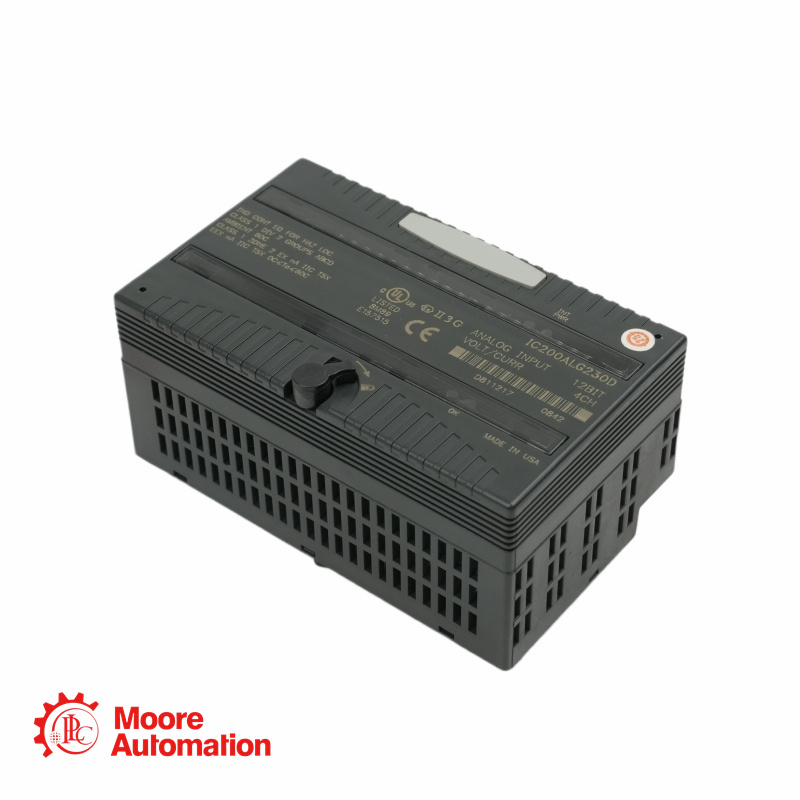

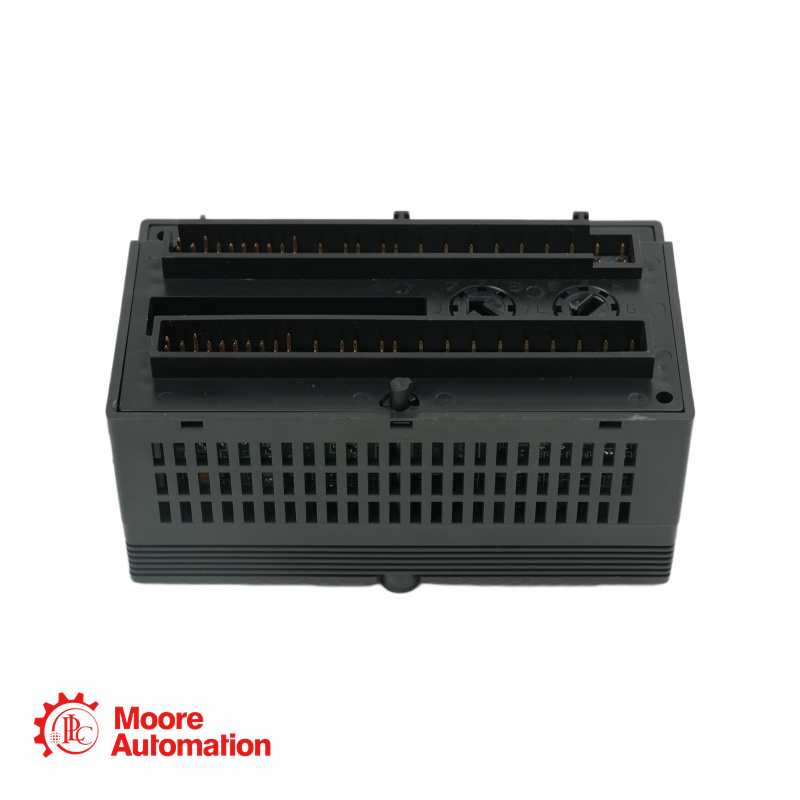

Description of IC200ALG230H
The GE Fanuc / Emerson IC200ALG230H is a VersaMax analog input module used for PLC signal acquisition in industrial control systems. It provides four single-ended analog input channels in one group and can accept either voltage or current inputs. Input mode and range are selected by jumpers on the carrier, supporting ±10VDC default, 0–10VDC, or 4–20mA operation. The module is powered by the backplane, includes INT PWR and OK LEDs, and reports Loss of Internal Power diagnostics.
Frequently asked questions
Q1: How is IC200ALG230H different from IC200ALG260H?
A: IC200ALG230H provides 4 analog input channels, while IC200ALG260H provides 8 channels.
Q2: Why does the H suffix matter for replacement?
A: The H revision is a label-change revision, with no feature or compatibility change.
Q3: Can the module measure both voltage and current signals?
A: Yes, it supports ±10VDC, 0–10VDC, and 4–20mA modes through jumper selection.
Q4: What should be checked before installation?
A: Confirm carrier type, jumper setting, signal type, wiring polarity, shielding, and PLC configuration.
|
|||||||||||||||||||||||||||||||
|
Product Application Areas |
|
VersaMax PLC digital input systems |
|
Machine automation control panels |
|
Sensor and switch signal monitoring |
|
Conveyor and material handling systems |
|
Packaging equipment control |
|
Water treatment and utility automation |
|
Factory production line monitoring |
|
Legacy GE Fanuc VersaMax maintenance and replacement |
|
