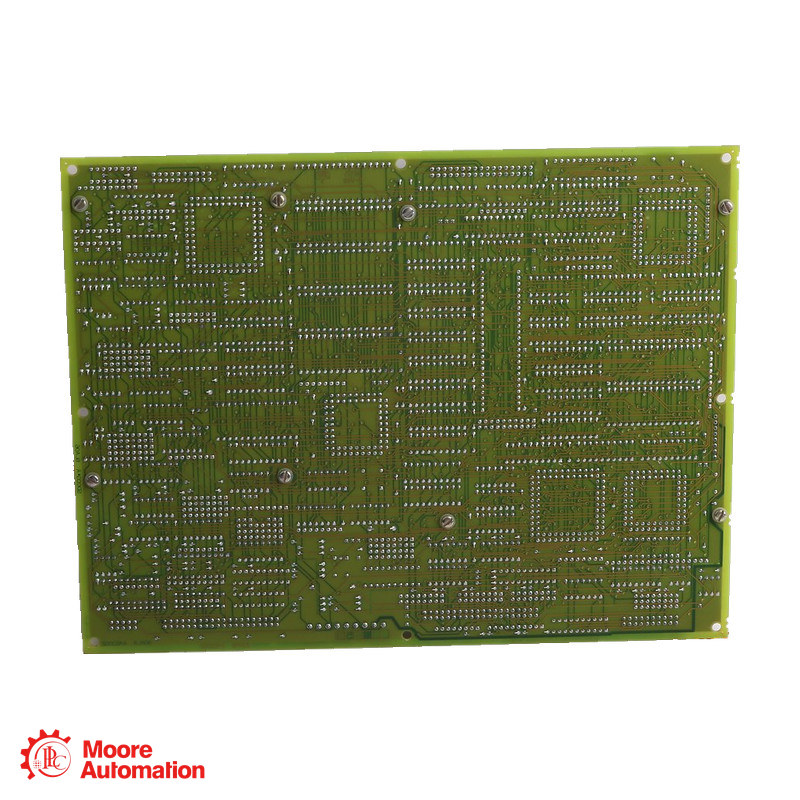

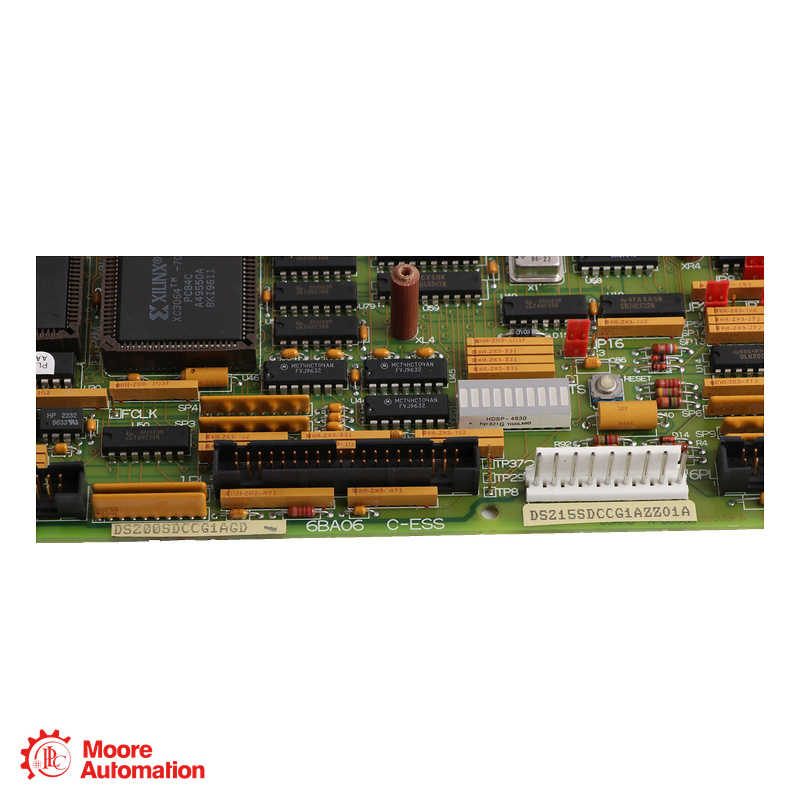

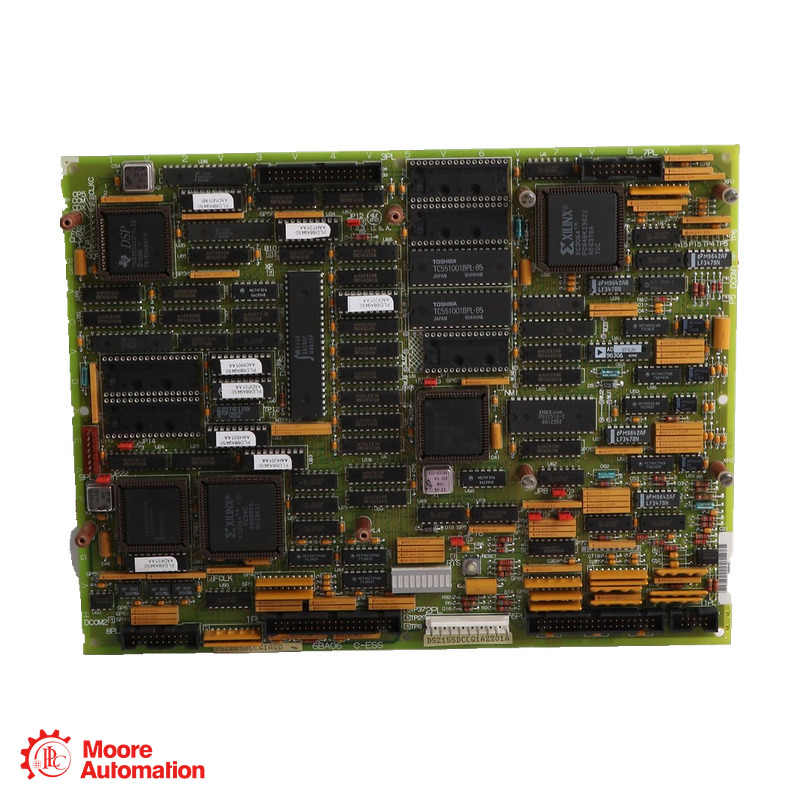

GE AC2000 / DC2000 / EX2000 · DRIVE CONTROL CARD

DS215SDCCG1AZZ01A

DS215SDCCG1AZZ01A is a GE drive control card with onboard software for the SDCC Group 1 drive and excitation-control arrangement.

PRODUCT TYPEDRIVE CONTROL CARD
PLATFORMAC2000 / DC2000 / EX2000
PROCESSORS3 × 16-bit
EPROMs4
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Jetzt anfragen
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● DRIVE CONTROL CARD
AC2000 / DC2000 / EX2000

DS215SDCCG1AZZ01A

DRIVE CONTROL CARD

AC2000 / DC2000 / EX2000 · DRIVE CONTROL CARD

MODULE ROLE
DS215SDCCG1AZZ01A provides the primary drive-control circuitry, motor-control processing and customer I/O interface.
LONG DESCRIPTION
DS215SDCCG1AZZ01A uses three 16-bit processors coupled through dual-ported RAM. The DCP handles user interfaces and outer regulating loops; the MCP handles motor-specific functions and inner current-control loops; the CMP supports math-intensive motor-control algorithms when required. The DS215 assembly includes four EPROMs and one EEPROM. Group 1 SDCC hardware is documented for AC2000, DC2000 and EX2000 applications. Installed firmware and parameter settings define the particular drive application.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the DS215SDCCG1AZZ01A Reference Is Structured

DS
ManufacturerGE Motors and Industrial Systems
215
Assembly levelBoard with onboard firmware
SDCC
Functional acronymDrive control card
G1
Group variationAC2000 / DC2000 / EX2000
A
Functional revisionFirst functional revision A
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE AC2000 / DC2000 / EX2000 ↗
DS215SDCCG1AZZ01A DRIVE CONTROL CARD

Engineering data at a glance

Click “+” to expand more specifications.

PROCESSORS3 × 16-bit
EPROMs4
EEPROMs1
DIAGNOSTICS10 LEDs
Engineering functions and interfaces follow the referenced manufacturer documentation.
Configuration note Signal configuration forDS215SDCCG1AZZ01A, installed system interfaces and application-specific configuration.
GENERAL INFORMATION −
BrandGE
Part numberDS215SDCCG1AZZ01A
Product typeDrive Control Card
Processor architectureDCP, MCP and CMP with dual-ported RAM
Software memoryFour EPROMs and one EEPROM
Diagnostic display10 LEDs
DRIVE CONNECTIONS ＋
1PLI/O with the associated power supply/interface board
2PLPower-supply input interface
3PLOutputs to the SLCC LAN communications card
PROCESSING AND MEMORY ＋
DCPUser interface, outer regulation and system functions
MCP / CMPMotor-control loops and additional arithmetic processing
U9 / U11 / U12 / U22 / U23EEPROM parameters and EPROM software
FUNCTIONAL CONTEXT ＋
System role: Group 1 SDCC is documented for AC2000, DC2000 and EX2000 drive applications. Its processor tasks, installed software and connected interface boards form the control arrangement; the complete assembly identifier is retained for ordering.
Source:GEI-100029C, pages 1–3, Figure 4 and board identification; GEH-6005 DC2000 parts tables
FAQ

Questions Buyers Ask Most

What is the function of DS215SDCCG1AZZ01A?＋

DS215SDCCG1AZZ01A provides the primary circuitry and onboard software for a drive or exciter using the SDCC control architecture.

Which processors are used on DS215SDCCG1AZZ01A?＋

DS215SDCCG1AZZ01A uses three 16-bit processors: DCP for drive-level control, MCP for motor-control functions and CMP for additional arithmetic processing when required.

What memory is included with DS215SDCCG1AZZ01A?＋

DS215SDCCG1AZZ01A is a DS215 assembly with four EPROMs for factory-programmed software and one EEPROM for field-adjustable parameters.

Which applications use the Group 1 hardware of DS215SDCCG1AZZ01A?＋

DS215SDCCG1AZZ01A uses the Group 1 SDCC hardware documented for AC2000, DC2000 and EX2000. The installed firmware and parameters determine the specific drive application.

How does DS215SDCCG1AZZ01A connect to the LAN card?＋

DS215SDCCG1AZZ01A provides the 3PL output connection to the SLCC LAN communications card. Other PL connectors serve power and drive I/O interfaces.

How are faults displayed on DS215SDCCG1AZZ01A?＋

DS215SDCCG1AZZ01A uses a bank of ten diagnostic LEDs. The manufacturer manual defines binary-coded decimal or binary fault patterns according to the fault number.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
DS215SDCCG1AZZ01A

Official manufacturer-documentation status for GE DS215SDCCG1AZZ01A.

Official datasheet status

No current official DS215SDCCG1AZZ01A product datasheet was located in the manufacturer's public documentation. For product documentation and compatibility details, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

No working manufacturer-hosted instruction or datasheet PDF was confirmed; contact Frida for the applicable document.

GE AC2000 / DC2000 / EX2000 SYSTEM RELATIONSHIP

How DS215SDCCG1AZZ01A Fits AC2000 / DC2000 / EX2000

GE is the manufacturer brand; GE AC2000 / DC2000 / EX2000 is the product family; and DS215SDCCG1AZZ01A is the drive control card.

GE · BRAND
GE AC2000 / DC2000 / EX2000Drive Control Card
SYSTEM ROLE

Processors

provides the primary drive-control circuitry, motor-control processing and customer I/O interface.

MODULE / CONFIGURATION

Drive Connections

I/O with the associated power supply/interface board

ASSEMBLY FORMAT

DS215SDCCG1AZZ01A · SDCC Board

GE AC2000 / DC2000 / EX2000 drive control card.

System relationship: provides the primary drive-control circuitry, motor-control processing and customer I/O interface.
APPLICATION AREAS

Application map for DS215SDCCG1AZZ01A

Drive-Level RegulationProcess user interfaces and outer regulating loops
Motor ControlExecute current regulation and motor-specific control functions
AC2000 / DC2000 / EX2000 DS215SDCCG1AZZ01A DS215SDCCG1AZZ01A · Drive Control Card
Exciter ControlProvide Group 1 control hardware for EX2000 applications
Drive DiagnosticsDisplay diagnostic fault patterns using ten LEDs
ABOUT MOORE AUTOMATION

A trusted industrial automation sourcing partner

Moore Automation Limited supplies industrial automation spare parts to customers worldwide, with dedicated sourcing, part-number verification, pre-shipment confirmation and responsive sales support.

Global sourcing Pre-shipment verification One-year warranty
