Foxboro P0903CV is a 48-point I/A Series annunciator keyboard delivering alarm indication, horn silence, lamp test and workstation integration support.
Marke :
FoxboroArtikelnummer :
P0903CVGewicht :
2.72 kgAbmessungen :
52.4cm × 15.2cm × 5.56 cmHerkunftsland :
USAHS-Code :
8537101190Beschreibung :
I/A Series, Annunciator Keyboard, 48 Channel LED/Switch Alarm InterfaceDescription of P0903CV

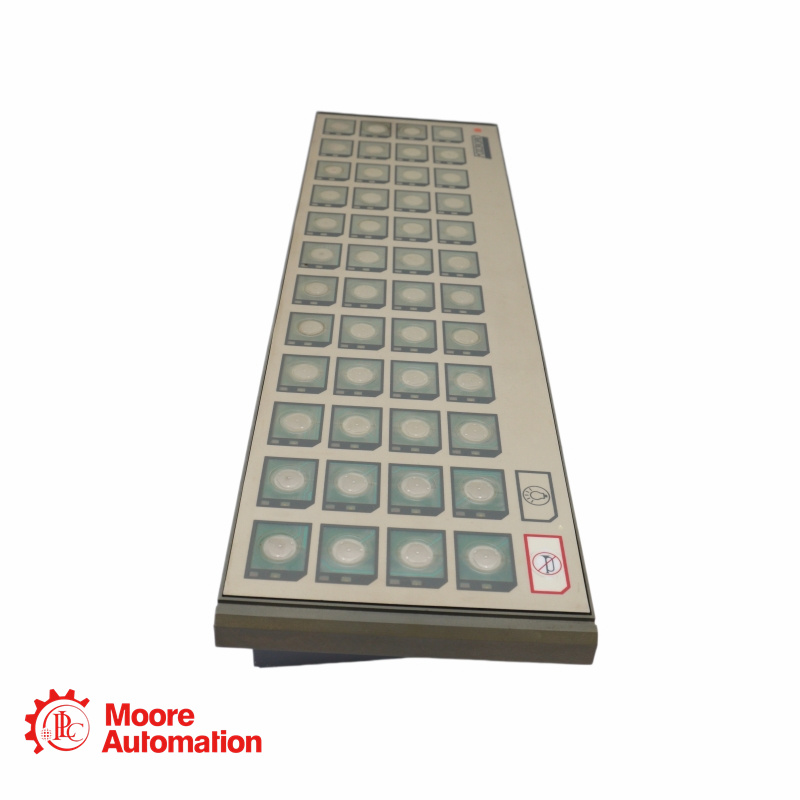

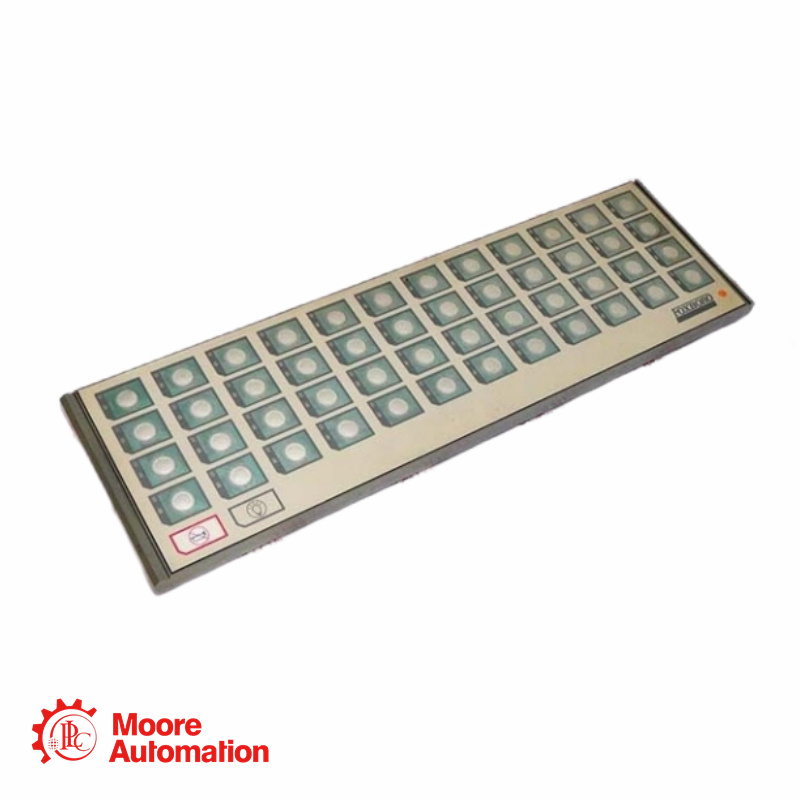

The Foxboro P0903CV Annunciator Keyboard is designed for I/A Series workstation processors, providing visual and audible alarm annunciation for process and system conditions. It features 48 LED/switch pairs arranged in a 12 × 4 matrix, with each LED controlled by workstation software to show ON, OFF, or FLASHING status. The keyboard includes horn silence and lamp-test functions, tactile/audible key feedback, polyester labeling pockets, red/yellow LED selection, multi-pitch alarm audio, and support for free-standing or workstation/panel-mounted installation.
Grab an Extra Discount - Contact Us
Name：Sylvie
Email：sales8@askplc.com
Whatsapp：+86 18030235312
|
Product Specifications |
|
|
Product Model |
Foxboro P0903CV |
|
System Compatibility |
I/A Series workstation processors |
|
LED/Switch Quantity |
48 LED/switch pairs |
|
Matrix Arrangement |
12 columns × 4 rows |
|
Power Requirement |
27.5 V dc, ±5% at input connector |
|
Power Consumption |
7.5 W max; 3.0 W min |
|
Audio Output — Open Load |
Low: 0.30 V p-p; Medium: 0.60 V p-p; Low + Medium: 0.90 V p-p |
|
Audio Output — 5 kΩ Load |
Low: 0.25 V p-p; Medium: 0.50 V p-p; Low + Medium: 0.70 V p-p |
|
Audio Output — 680 Ω Load |
Low: 0.10 V p-p; Medium: 0.25 V p-p; Low + Medium: 0.40 V p-p |
|
Operating Temperature |
0 to 50°C / 32 to 122°F |
|
Storage Temperature |
-40 to +70°C / -40 to 158°F |
|
Mass |
2.72 kg / 6.0 lb |
|
Nominal Dimensions — Keyboard |
524 × 152 × 55.6 mm / 20.64 × 6.0 × 2.19 in |
|
Nominal Dimensions — Panel |
287.2 × 290.6 × 68.1 mm / 10.52 × 11.44 × 2.68 in |
Frequently asked questions：
Q1: What is the Foxboro P0903CV?
A: It is an I/A Series annunciator keyboard for alarm indication and operator input.
Q2: How many LED/switch points does it have?
A: It has 48 LED/switch pairs arranged in a 12 × 4 matrix.
Q3: What LED states are supported?
A: Each LED can be ON, OFF, or FLASHING under workstation software control.
Q4: Does it support audible alarms?
A: Yes, it provides multi-pitch audible alarms and an external audio output jack.
|
Product Application Areas |
|
DCS control room alarm management |
|
Petrochemical process control |
|
Power generation and energy monitoring |
|
Chemical plant alarm indication |
|
Pharmaceutical process control systems |
|
Water treatment and utility monitoring |
|
