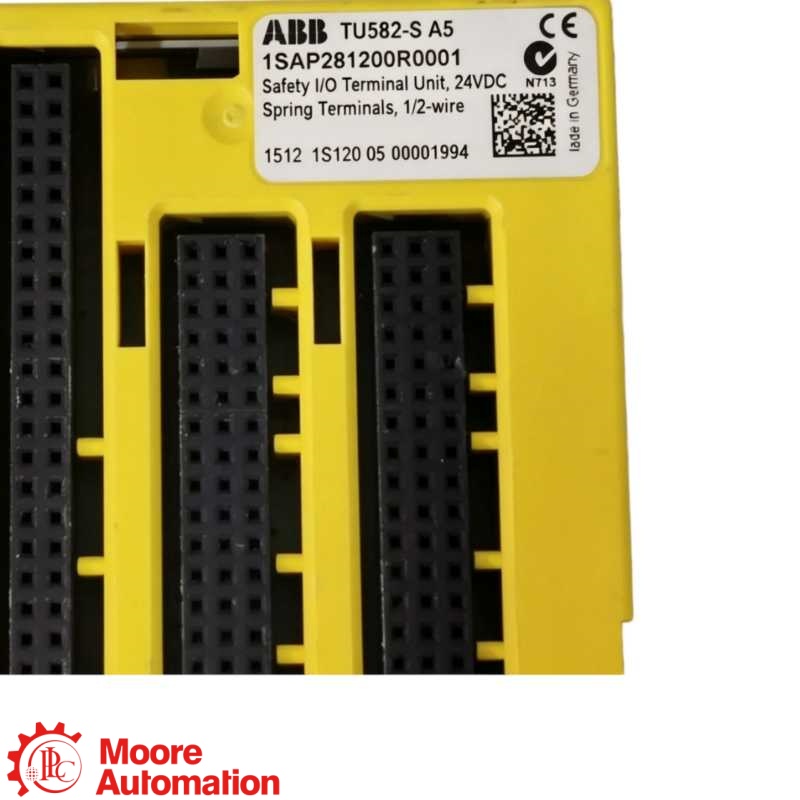

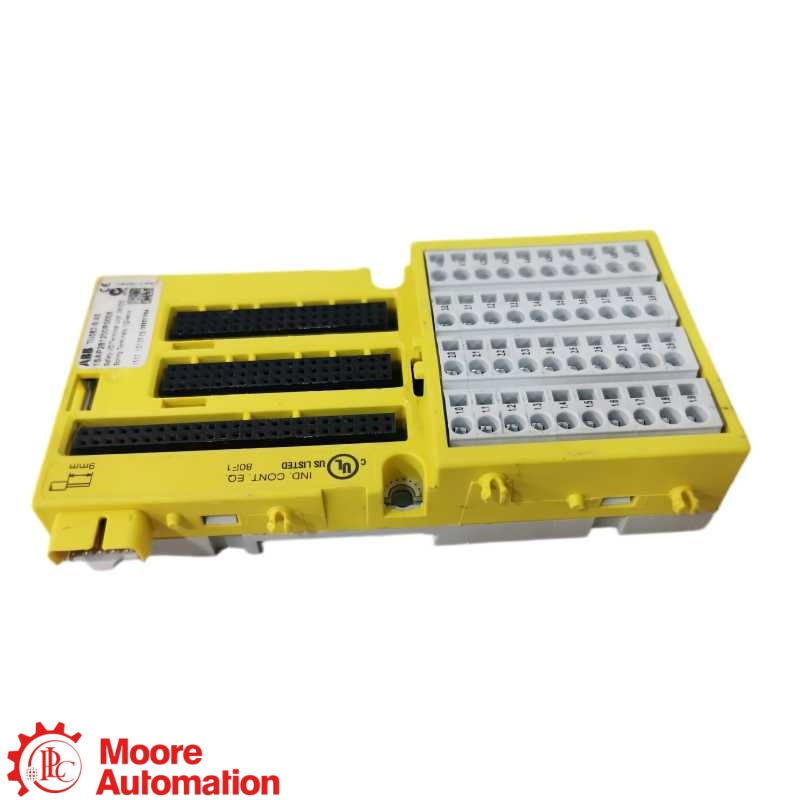

ABB TU582-S 1SAP281200R0001 Safety I/O Terminal Unit
ABB TU582-S 1SAP281200R0001 Safety I/O Terminal Unit
ABB TU582-S 1SAP281200R0001 Safety I/O Terminal Unit

ABB TU582-S 1SAP281200R0001 Safety I/O Terminal Unit

ABB AC500-S · safety I/O terminal unit

TU582-S 1SAP281200R0001

The TU582-S 1SAP281200R0001 is an ABB safety I/O terminal unit for ABB AC500-S modules. It provides 24 V DC spring-terminal connections with 40 terminal points for compatible AC500-S safety I/O modules.

PRODUCT TYPESafety I/O terminal unit
PLATFORMABB AC500-S
NETWORK40 spring points
PROTECTIONIP20
MANUFACTURERABB
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Jetzt anfragen
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
ABB ● Safety I/O terminal unit
ABB AC500-S SAFETY TERMINAL UNIT

TU582-S 1SAP281200R0001

Safety I/O terminal unit

40 spring-terminal points

MODULE ROLE
TU582-S 1SAP281200R0001 is an ABB safety I/O terminal unit for ABB AC500-S modules. It provides 40-point spring-terminal field connections; match the installed AC500-S safety I/O module and wiring arrangement.
CONFIGURATION NOTE
For TU582-S 1SAP281200R0001, confirm ordering code 1SAP281200R0001, 24 V DC supply, spring-terminal wiring, AC500-S safety I/O module compatibility, spring-terminal connections and I/O-group allocation before replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the TU582-S 1SAP281200R0001 reference is structured

TU582
Terminal-unit familyABB AC500-S safety I/O modules
S
Safety variantSafety I/O terminal unit
1SAP281200R0001
Exact ABB order code24 V DC · spring terminals
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

ABB AC500 ↗
TU582-S 1SAP281200R0001 Safety I/O terminal unit

Engineering data at a glance

Click “+” to expand more specifications.

MODELTU582-S 1SAP281200R0001
SYSTEMABB AC500
TERMINALS40 spring points
PROTECTION40 spring-terminal points
ABB AC500-S Safety Manual 3ADR025091M0210 identifies TU582-S 1SAP281200R0001 as a 24 V DC screw-safety I/O terminal unit for ABB AC500-S modules.
Official product verification Verify TU582-S 1SAP281200R0001, the installed AC500-S safety I/O module, 24 V DC supply, I/O-group allocation, safety I/O field wiring and terminal wiring before ordering.
GENERAL INFORMATION −
BrandABB
Part numberTU582-S 1SAP281200R0001
Product typeSafety I/O terminal unit
Product familyABB AC500
Model statusExact ABB order code
PlatformABB AC500
SAFETY & ORDERING ＋
Safety variantSafety I/O
Official order code1SAP281200R0001
Compatible safety modulesMatch the installed AC500-S safety I/O module
PROTECTION & POWER ＋
Terminal connection40 spring-terminal points
I/O capacity40 spring-terminal points in 3 groups of max. 8
Power supply24 V DC
Degree of protectionIP20
DocumentationABB AC500-S Safety Manual 3ADR025091M0210
INSTALLATION & COMPATIBILITY ＋
Reference: Confirm the installed AC500-S safety I/O module, grounded DIN rail or wall mounting, 24 V DC supply, field wiring and field-terminal allocation.
Source: ABB AC500-S Safety Manual 3ADR025091M0210, section TU582-S.
FAQ

Questions Buyers Ask Most

What is TU582-S 1SAP281200R0001 used for?＋

TU582-S 1SAP281200R0001 is a terminal unit for ABB AC500-S safety I/O modules. It provides power and field-terminal connections for the installed AC500-S safety I/O module.

What is the official order code for TU582-S 1SAP281200R0001?＋

TU582-S 1SAP281200R0001 uses ABB order code 1SAP281200R0001; TU582-S identifies the Safety I/O spring-terminal version.

What supply voltage applies to TU582-S 1SAP281200R0001?＋

TU582-S 1SAP281200R0001 is rated for 24 V DC. Confirm the installed safety I/O module and field wiring against the AC500-S documentation before commissioning.

What terminal connection does TU582-S 1SAP281200R0001 provide?＋

TU582-S 1SAP281200R0001 provides a 40-point spring-terminal connection. The terminal unit is intended for compatible AC500-S safety I/O modules.

What conductor sizes can TU582-S 1SAP281200R0001 support?＋

TU582-S 1SAP281200R0001 accepts 0.08 to 2.5 mm² solid or flexible conductors and 0.25 to 1.5 mm² ferruled conductors, with a 7 mm stripped length.

How should TU582-S 1SAP281200R0001 be mounted and grounded?＋

TU582-S 1SAP281200R0001 may be mounted horizontally or vertically and grounded through a grounded DIN rail or by screws for wall mounting.

What information should be supplied when ordering TU582-S 1SAP281200R0001?＋

For TU582-S 1SAP281200R0001, provide the complete order code, installed AC500-S safety I/O module, quantity, 24 V DC wiring, safety I/O field wiring, conductor size and mounting details.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
TU582-S 1SAP281200R0001

Official manufacturer-reference status for ABB TU582-S 1SAP281200R0001.

ABB AC500 Hardware Manual

ABB AC500-S Safety Manual 3ADR025091M0210 documents TU582-S as a 24 V DC safety I/O terminal unit with spring terminals, IP20 protection and approximately 200 g weight.

OFFICIAL HARDWARE MANUAL ↗

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements on this page are based on ABB AC500-S Safety Manual 3ADR025091M0210 for TU582-S.

ABB AC500 PRODUCT RELATIONSHIP

How TU582-S 1SAP281200R0001 Fits into ABB AC500-S

ABB is the brand; ABB AC500-S is the product family; and TU582-S 1SAP281200R0001 is an ABB safety I/O terminal unit for ABB AC500-S modules, identified by exact order code 1SAP281200R0001.

ABB · BRAND
ABB AC500-SSafety I/O terminal unit
SYSTEM ROLE

Safety I/O terminal unit

Provides 24 V DC power and spring-terminal connections for the installed AC500-S safety I/O module.

TERMINAL CONNECTION

40 spring-terminal points

The 40-point spring-terminal unit remains in place when a compatible safety I/O module is replaced.

TERMINALS & POWER

40 spring points · 24 V DC

Match the installed AC500-S safety I/O module, 24 V DC supply, safety I/O field wiring and spring-terminal allocation before replacement.

System relationship: verify order code 1SAP281200R0001, installed AC500-S safety I/O module, power wiring, safety I/O field wiring and I/O-group allocation.
APPLICATION AREAS

Application mind map for TU582-S 1SAP281200R0001

AC500-S Module IntegrationConnect a compatible AC500-S safety I/O module to the terminal unit
Field I/O DistributionAllocate up to 24 I/O channels in three groups of up to eight
APPLICATION CENTER TU582-S 1SAP281200R0001 24 V DC spring-terminal unit for AC500-S safety I/O modules
Safety I/O WiringUse the 40-point spring-terminal connection for safety I/O field wiring
Installation MatchingConfirm grounded DIN-rail or wall mounting, supply terminals, AC500-S safety I/O module and field wiring before replacement.
