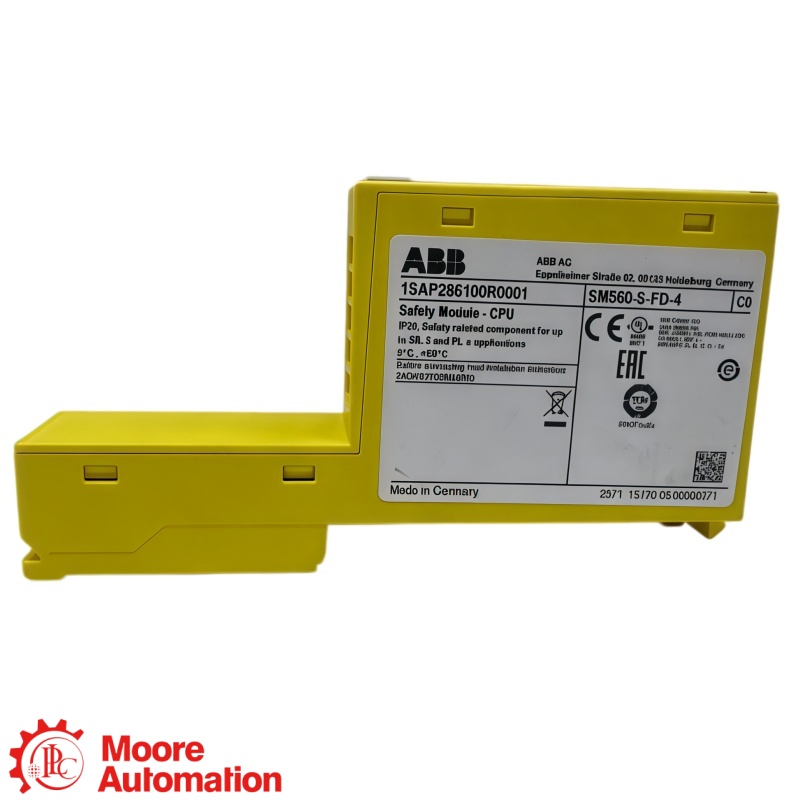

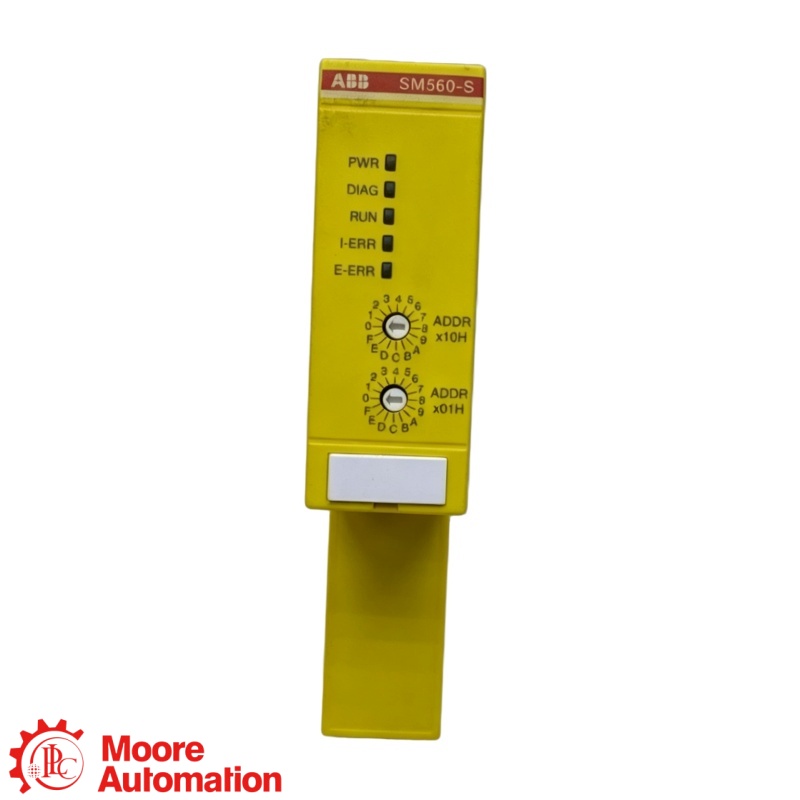

The SM560-S-FD-4 is an ABB AC500-S safety CPU rated for safety-related applications up to SIL 3, with 1.3 MB user program memory and F-Device functionality for up to 4 PROFIsafe networks.
SIL 3 · 1.3 MB PROGRAM · FD-4
Click “+” to expand more specifications.
SM560-S-FD-4 is an ABB AC500-S safety CPU for safety-related control functions up to SIL 3. Its F-Device functionality is specified for up to 4 PROFIsafe networks, so the complete safety architecture and PROFIsafe configuration must match the application.
SM560-S-FD-4 provides F-Device functionality for up to 4 PROFIsafe networks. This describes the supported network count; it does not by itself confirm compatibility with a specific controller, firmware version or safety project.
SM560-S-FD-4 has 1.3 MB of user program memory and 1 MB of user data memory, including 120 kB saved. ABB specifies a 24 V DC supply with permitted process-voltage limits that must be respected.
Before installing SM560-S-FD-4, verify the part number, terminal base, 24 V DC supply, firmware, safety project, PROFIsafe network assignment, wiring and mounting conditions. Do not treat another AC500-S CPU as a direct replacement without a documented compatibility review.
Share the complete order number and application details for compatibility, availability and lead-time checking.
Official ABB documentation for the SM560-S-FD-4 AC500-S safety CPU.
ABB data sheet 3ADR010084 covering SM560-S-FD-4, SIL 3 capability, memory, power, dimensions and F-Device functionality for up to 4 PROFIsafe networks.
OFFICIAL DATASHEETSend the complete model, quantity, and your technical or purchasing question.
Technical statements on this page are based on ABB data sheet 3ADR010084 for the SM560-S safety CPU family.
ABB is the brand; ABB AC500-S is the product family; and SM560-S-FD-4 is an AC500-S safety CPU up to SIL 3 with F-Device functionality for up to 4 PROFIsafe networks.
Confirm the terminal base, 24 V DC supply, firmware, safety project and PROFIsafe assignment before replacement.
The FD-4 version provides F-Device functionality for up to 4 PROFIsafe networks; network count alone does not confirm system compatibility.
Do not treat another AC500-S CPU as a direct replacement without checking the part number, firmware, terminal base, safety project and PROFIsafe configuration.
