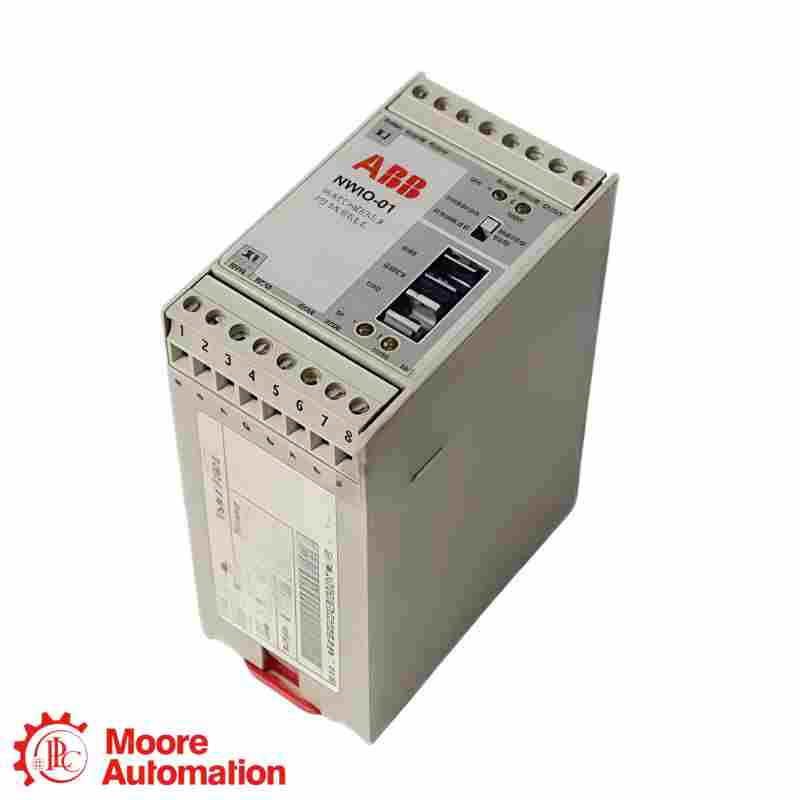

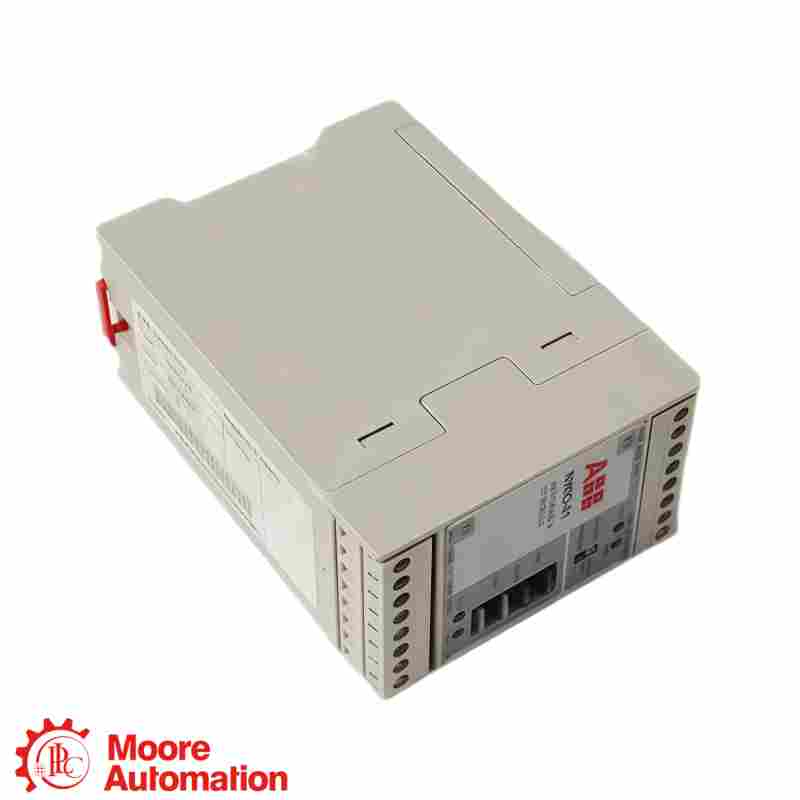

ABB ● WATCHDOG & DIGITAL I/O OPTION UNIT
ABB AC 800M DRIVEBUS OPTION UNIT

NWIO-01 64168533

MODEL IDENTIFICATION

Exact label · AC 800M DriveBus system · CI858 interface · I/O wiring

PRODUCT ROLE
NWIO-01 64168533 is an ABB Watchdog & I/O digital I/O option unit. ABB's AC 800M DriveBus manual identifies NWIO-01 as a Watchdog & I/O digital I/O option unit with two digital inputs and two digital outputs. The watchdog supervises CI858 application software, dual-port-memory communication, the CI858 operating system and optical I/O ring communication.
INSTALLATION CHECK
Confirm NWIO-01 64168533, the complete unit label, input-voltage selection, digital I/O wiring, DO2 watchdog-mode selection, optical I/O ring connection and installed CI858 configuration before replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

NWIO-01 / AC 800M DriveBus family
NWIO-01 64168533

Identification data at a glance

ABB's AC 800M DriveBus manual identifies NWIO-01 as a Watchdog & I/O digital I/O option unit with two digital inputs and two digital outputs. The watchdog supervises CI858 application software, dual-port-memory communication, the CI858 operating system and optical I/O ring communication.

MODEL SERIESNWIO-01
ARTICLE / REFERENCE64168533
SYSTEM INTERFACEAC 800M DriveBus / CI858
DOCUMENTVERIFY EXACT DATA
Exact-reference verificationMatch the complete NWIO-01 64168533 marking, input-voltage selection, I/O wiring and installed AC 800M DriveBus / CI858 configuration before ordering.
GENERAL INFORMATION −
BrandABB
Complete referenceNWIO-01 64168533
Product typeWatchdog & I/O digital I/O option unit
Digital inputs2 · 24 VDC or 115/230 VAC
Digital outputs2 · DO2 selectable for watchdog operation
Watchdog supervisionCI858 software and optical I/O ring
Function blocksNWIO1DI and NWIO1DO
Watchdog time constant1 s factory setting · 0.2 s with jumper X1
IDENTIFICATION & COMPATIBILITY ＋

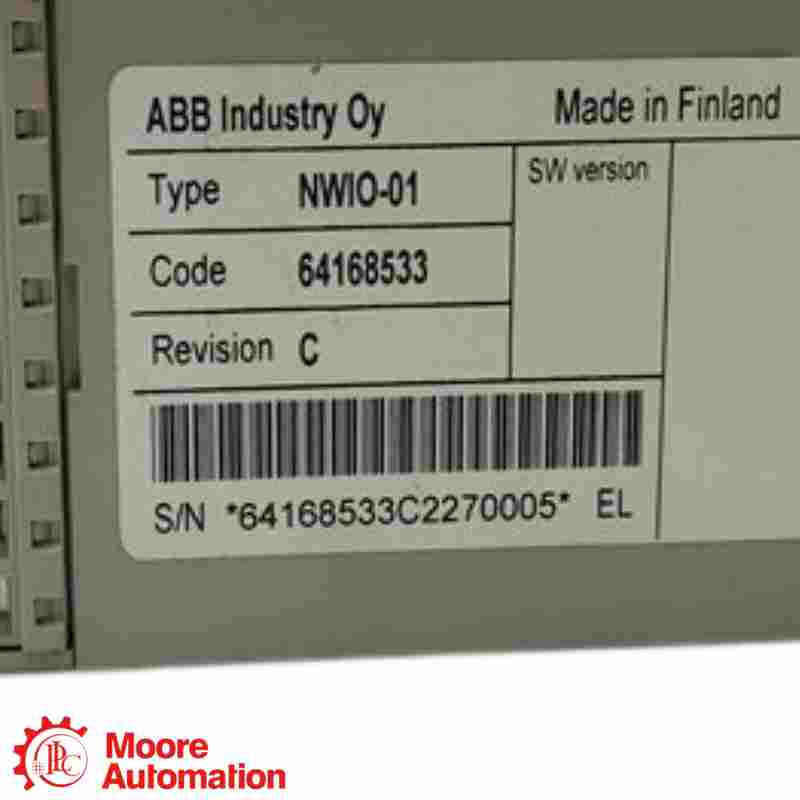

Label evidenceComplete NWIO-01 64168533 marking as supplied
System evidenceInstalled AC 800M DriveBus / CI858 and optical I/O ring configuration
Replacement limitDo not substitute without complete marking, input selection, I/O wiring and system confirmation
INSTALLATION & ORDERING ＋
Before ordering or replacement, provide the complete marking, nameplate photographs, quantity, input-voltage selection, I/O wiring and installed AC 800M DriveBus / CI858 configuration.
Source: ABB AC 800M DriveBus manual 2PAA113566-600 documents NWIO-01 functions and I/O configuration; article number 64168533 must still be matched to the supplied unit label.
