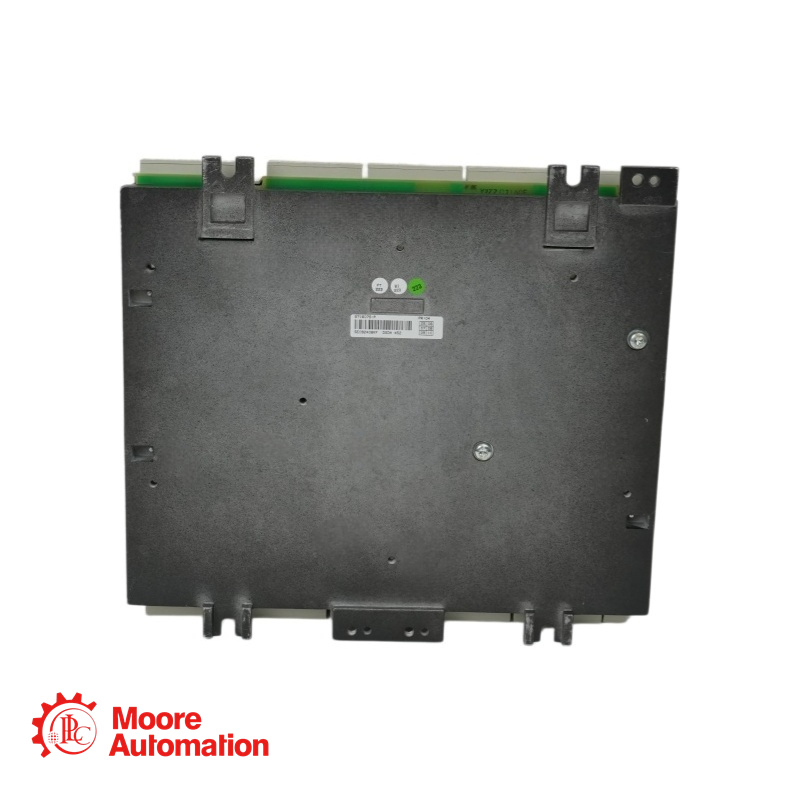

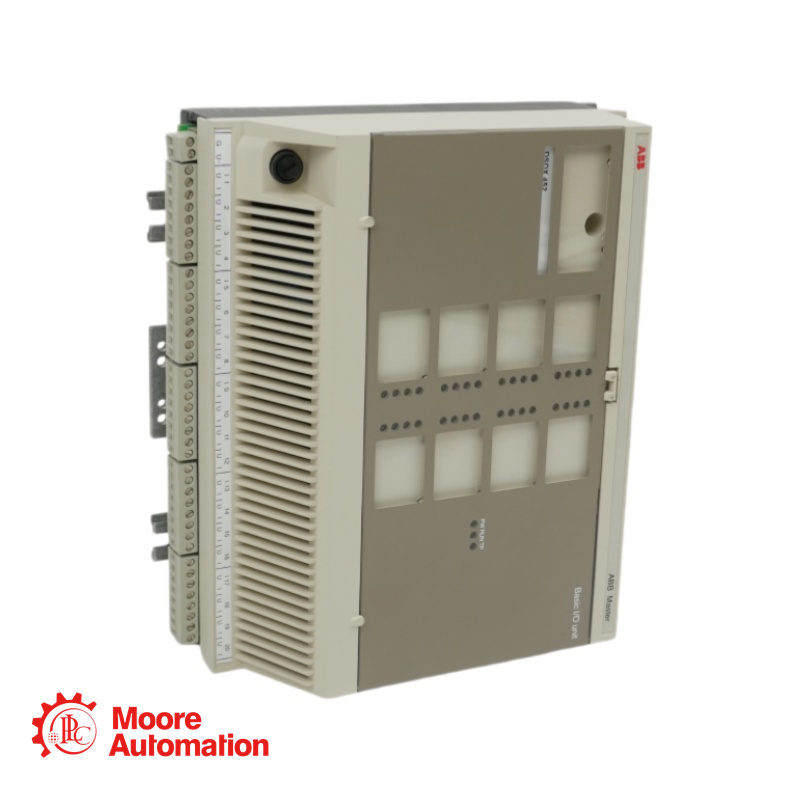

ABB DSDX452L 5716075-U Remote I/O Basic Unit

Contact Information

DSDX452L 5716075-USpecifications

DSDX452L 5716075-UDescription

DSDX 452L Remote In / Out Basic Unit
20 DI 24V 12 DO < 100mA
(For Low Current Loads)
2664197-4 Terminal Block Screw Part ( X11)
2664193-2 Terminal Block Screw Part ( X21)
2664193-8 Terminal Block Screw Part ( X13-X16,X22-X26)

Note! This part is exempted from the scope of 2011/65/EU (RoHS)
as provided in Article 2(4)(c), (e), (f) and (j) therein
(ref.: 3BSE088609 – EU DECLARATION OF CONFORMITY
'- ABB Advant Master Process Control System)

DSDX452L 5716075-UAlternative names

DSDX452L 5716075-UFAQ

What is the DSDX452L?

It is a Remote I/O Basic Unit from the S400 series, designed for use with ABB's Advant Master DCS (Distributed Control System).

What does the "L" suffix mean?

The "L" indicates that this specific model is equipped with low signal level relay outputs, which are typically used for low-voltage or sensitive control applications.

What is the I/O capacity?

The unit features 20 Digital Inputs (24 V DC) and 12 Digital Outputs (low signal level).

Which communication protocol is supported?

It communicates via the MasterFieldbus SDB protocol.

How is the station address set?

Address switches are located on the electronics under a small lid on the unit's plastic cover.
