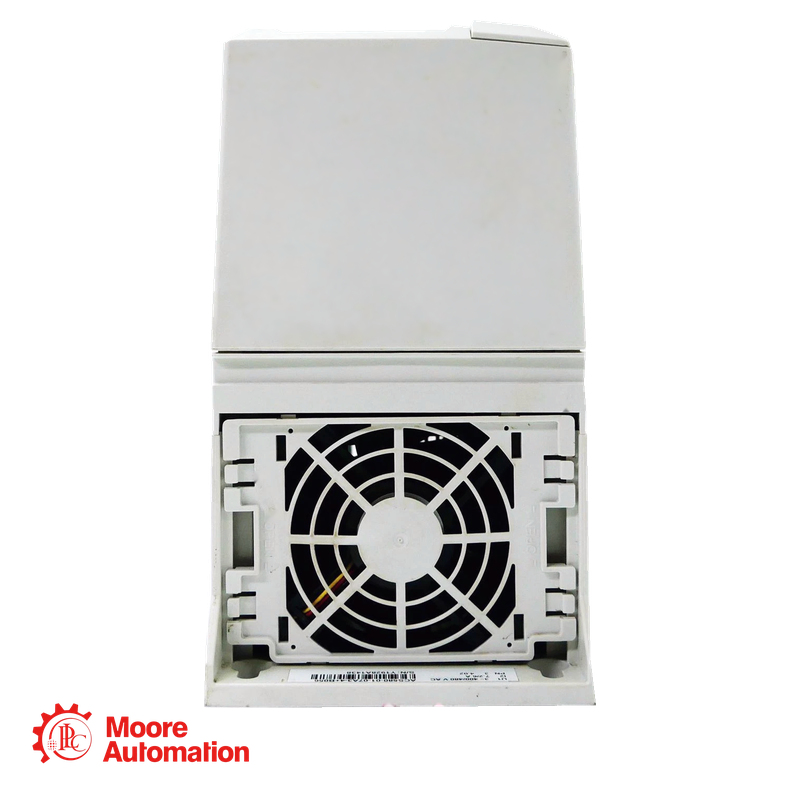

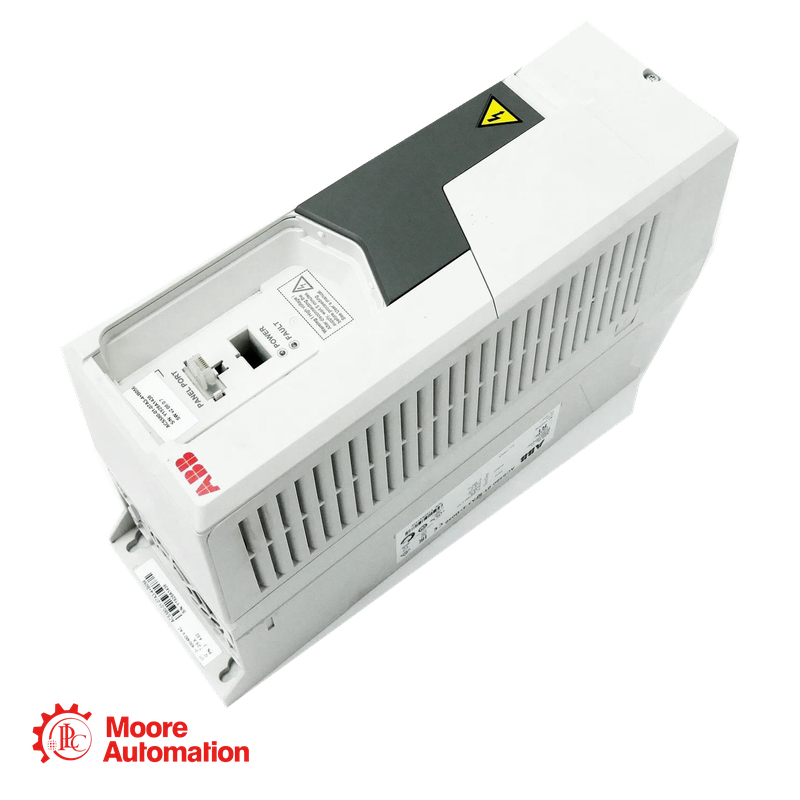

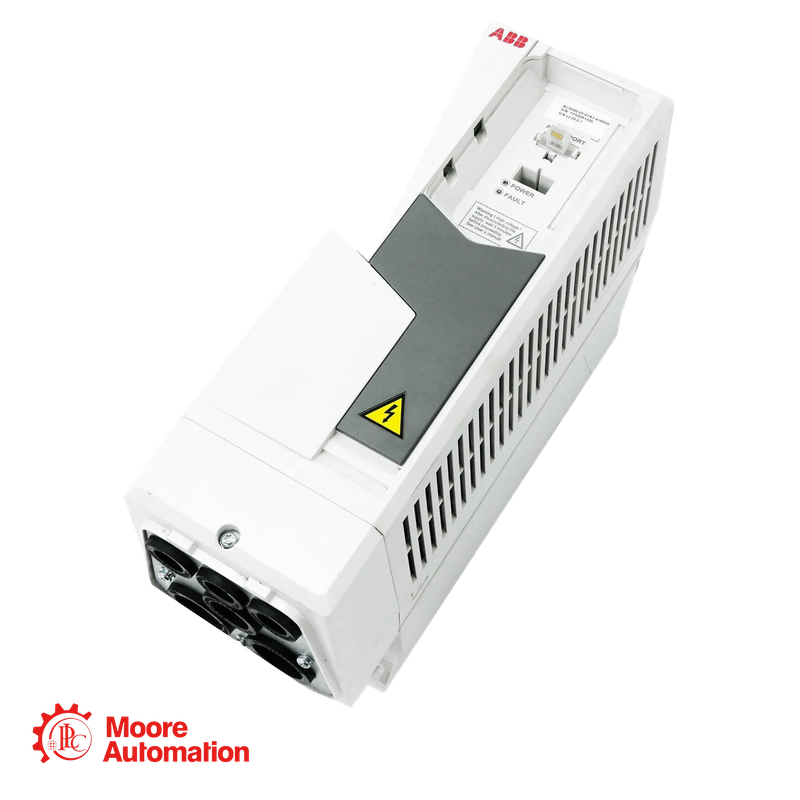

The ABB ACS580-01-073A-4 is a wall-mounted general-purpose AC drive to regulate the speed and torque of three-phase motors
Marke :
ABBArtikelnummer :
ACS580-01-073A-4Gewicht :
11.8 kgAbmessungen :
20.3x49x22.9 cmHerkunftsland :
SwedenHS-Code :
8537101190Beschreibung :
General Purpose AC Drive
Contact Frida for ACS580-01-073A-4 Pricing
|
Inquiry Information |
Contact Details |
|
Product Model |
ACS580-01-073A-4 |
|
Inquiry Type |
Price, availability and delivery time |
|
Contact Person |
Frida |
|
|
|
|
Information to Provide |
Required quantity and delivery destination |
Product Overview
The ABB ACS580-01-073A-4 is a wall-mounted general-purpose AC drive to regulate the speed and torque of three-phase motors. Its nominal IEC rating is 37 kW with an output current of 73 A at 400 V. Built in the R4 frame, the standard drive has an IP21 enclosure for indoor installation. Adequate cabinet airflow and installation clearance must be maintained, and the drive should be protected from condensation, conductive contamination and direct water exposure. The ACS580 platform can control induction, permanent-magnet and synchronous reluctance motors. Standard functions include an assistant control panel, Safe Torque Off, Modbus RTU communication and an internal EMC filter. The drive can be configured for local operation or integrated into a compatible industrial control network.
Technical Specifications
|
Parameter |
Specification |
|
Model Number |
ACS580-01-073A-4 |
|
Product Type |
Wall-mounted AC drive |
|
Input Supply |
380–480 V AC, three-phase |
|
Rated Power |
37 kW at 400 V |
|
Rated Output Current |
73 A at 400 V |
|
Frame Size |
R4 |
|
Enclosure Rating |
IP21 |
Benefits
- Adjustable motor speed
- Controlled motor starting
- Reduced starting current
- Lower mechanical stress
- Integrated energy monitoring
- Straightforward commissioning
- Flexible system connectivity
- Wall-mounted installation
Key Highlights
● 37 kW nominal IEC rating
● 73 A nominal output at 400 V
● 109.8 A maximum output current
● 380–480 V three-phase supply
● R4 wall-mounted frame
● Integrated Safe Torque Off
● Standard Modbus RTU interface
● Assistant control panel
Customer Questions and Answers
Customer Question
Engineering Answer
What motor rating is suitable for the ACS580-01-073A-4?
Its nominal IEC rating is 37 kW and 73 A at 400 V. Engineers should compare the motor nameplate current and load duty with the drive ratings instead of selecting by motor power alone.
What is the heavy-duty rating at 400 V?
ABB specifies a heavy-duty output of 61 A with a corresponding motor rating of 30 kW. This rating should be used where greater overload capability is required.
How is the drive rated at 480 V?
At 480 V, ABB lists 65 A and 50 hp for light-duty operation. The heavy-duty rating is 52 A and 40 hp, with a maximum output current of 104 A.
Is a braking chopper built into the R4 frame?
No. The standard integrated braking chopper is provided in frames R1 through R3. Applications requiring rapid or repeated stopping need a separately engineered braking solution.
Which checks are required before commissioning?
Confirm the supply voltage, motor nameplate values, grounding, protective-device selection, cable size, current limits, speed range, ramp settings, cooling clearance and Safe Torque Off wiring.
Industries Served
HVAC and Building Services--The drive can control large ventilation fans, cooling-tower fans, blowers and circulation pumps. Variable-speed operation allows airflow, pressure or water circulation to follow the actual requirements of the building system.
Food and Beverage Processing--Potential applications include process pumps, mixers, agitators and material conveyors fitted with compatible motors. Controlled acceleration and deceleration can reduce mechanical shock and provide steadier movement during production changes.
Material Handling--The unit can operate conveyors, feeders and transfer systems requiring controlled speed adjustment. Suitable ramp settings help reduce belt slip, load movement and sudden stress on gearboxes, couplings and drive components.
General Manufacturing--The ACS580-01-073A-4 can be applied to pumps, fans, mixers and auxiliary production machinery. Drive selection must account for motor current, required torque, overload profile, stopping method and the temperature inside the installation area.
|
